Satel

SATELLINE-EASy

Industrial UHF/VHF Modem

Compact radio modem for long-range applications with wide tuning range and selectable channel spacing.

Description

SATELLINE-EASy is provides a compact and flexible solution for many different long-range applications. It can be equipped with an LCD and push buttons for facilitating the configuration of the radio modem. SATELLINE-EASy has two operating voltage levels to choose from and low power consumption.

  • Wide 90 MHz / 70 MHz tuning range (330…420 MHz / 403 … 473 MHz)
  • Selectable channel spacing 12.5 / 20 / 25 kHz
  • Operating voltage level options: +3 … +9 Vdc or +6 … +30 Vdc
  • Compatible with SATELLINE-EASy Pro and -3AS Epic modems
  • Models with AES128 encryption support available

The configuration of the radio modem can be made with a terminal program or a SATEL Configuration Manager. SATELLINE-EASy is compatible with SATEL radio modules and high power products, and with SATEL additional equipment e.g. SATELLINK products.

Models

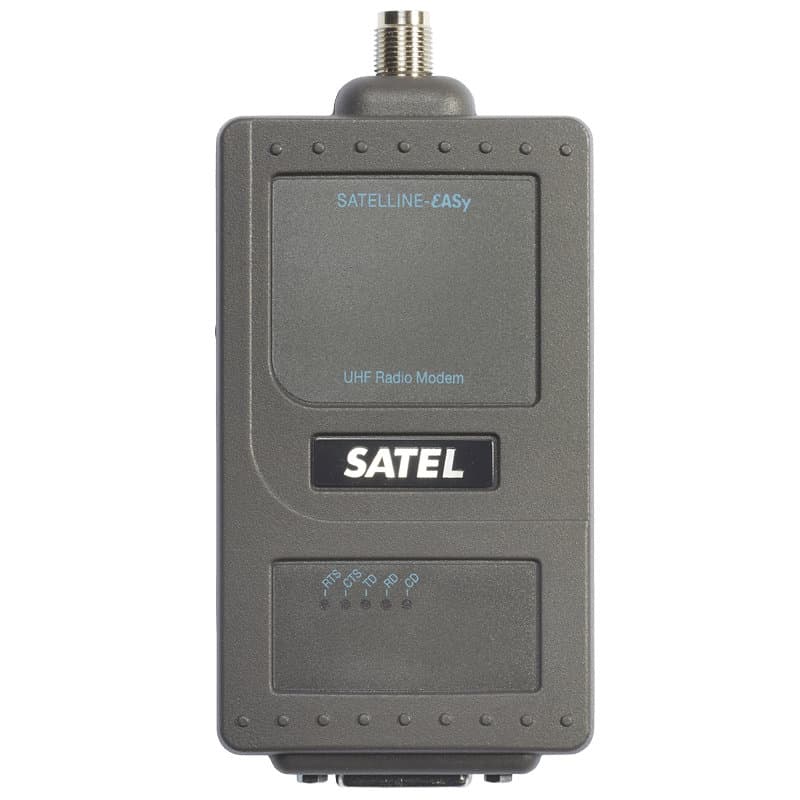

  • SATELLINE-EASy, without display (YM6500 / YM6505)

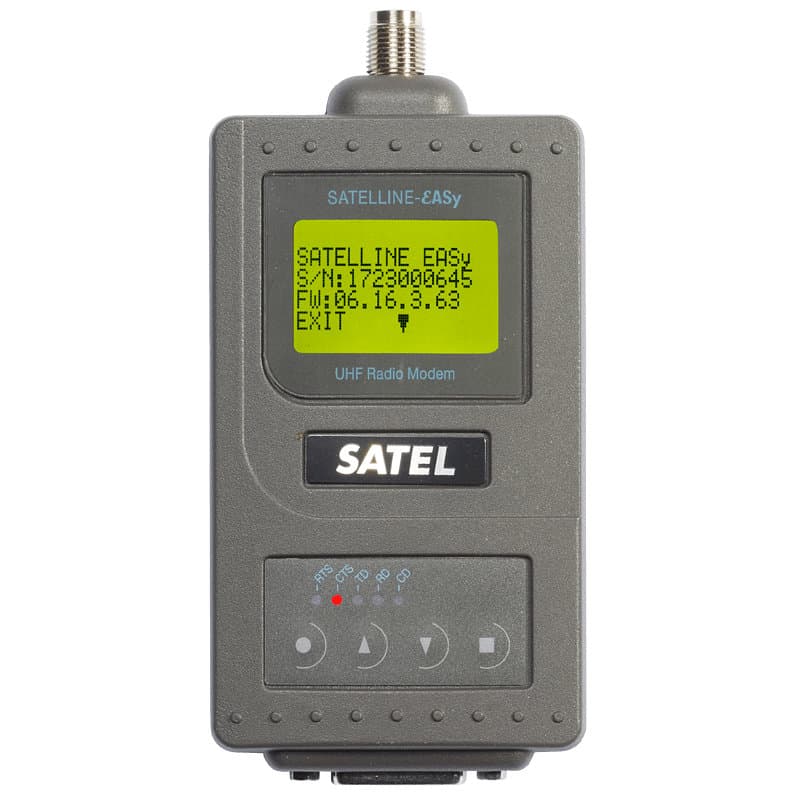

  • SATELLINE-EASy, with display (YM6550 / YM6555)

  • SATELLINE-EASy, without display, with AES128 encryption support (YM6510 / YM6515)

  • SATELLINE-EASy, with display, with AES128 encryption support (YM6560 / YM6565)

Specifications

Frequency range

330…420 MHz / 403 … 473 MHz

Tuning range

90 MHz / 70 MHz

Channel spacing

12.5 / 20 / 25 kHz selectable

Sensitivity / Carrier power

-114 dBm / 1 W

Interface

Port1: RS-232 fixed

Port2: RS-232 / 422

Data speed

Radio 19200 / RS 38400 bps

Operating voltage

+3 … +9 / +6 … +30 VDC

Power consumption

RX 1.2 W

TX 7 WF

Size

137 x 67 x 29 mm

Weight

250 g

Connectors

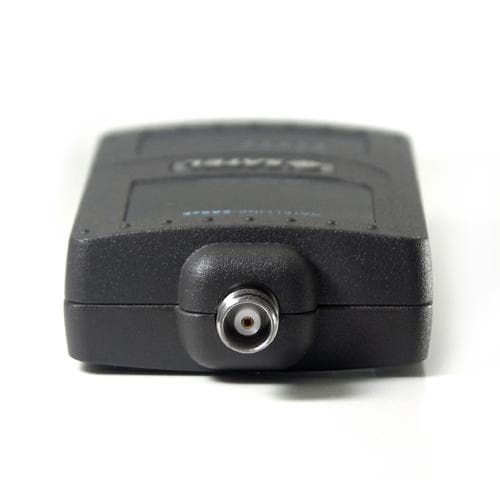

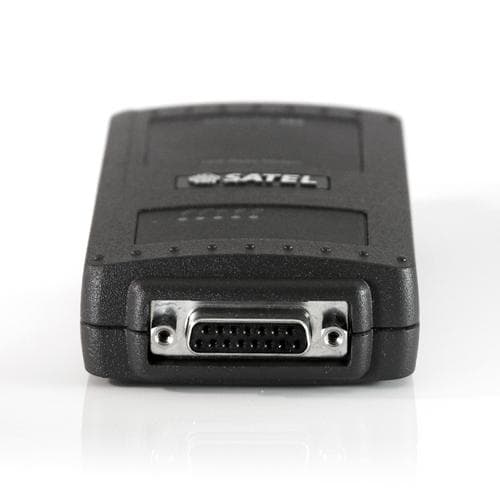

D15 / TNC female
