Product Description
Description

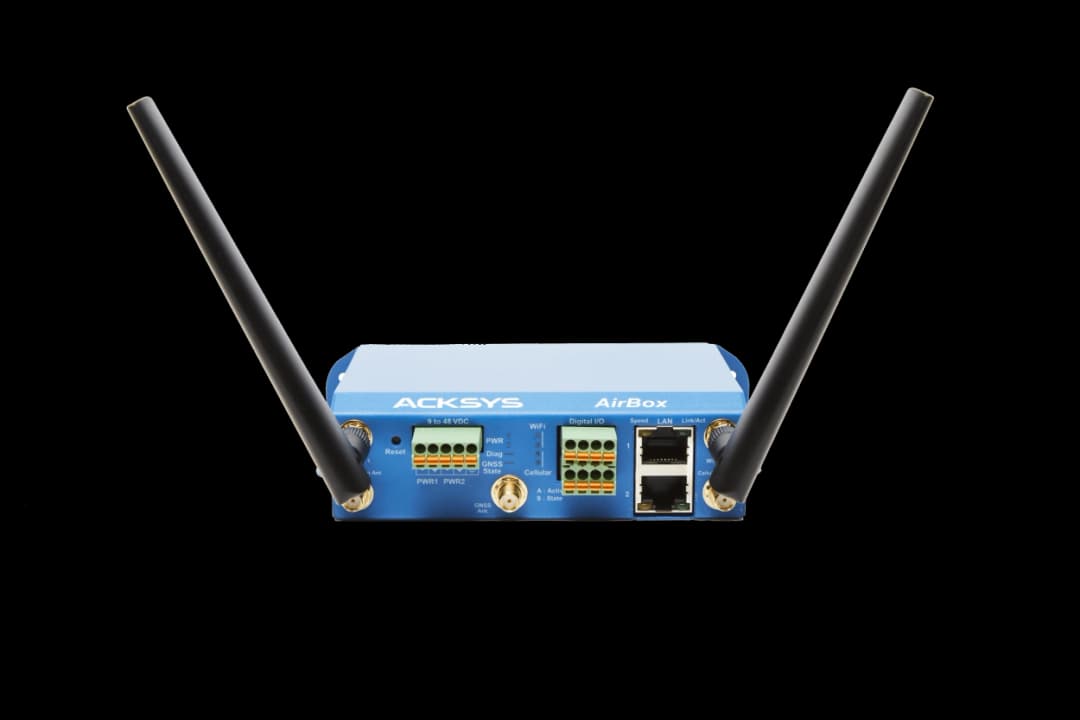

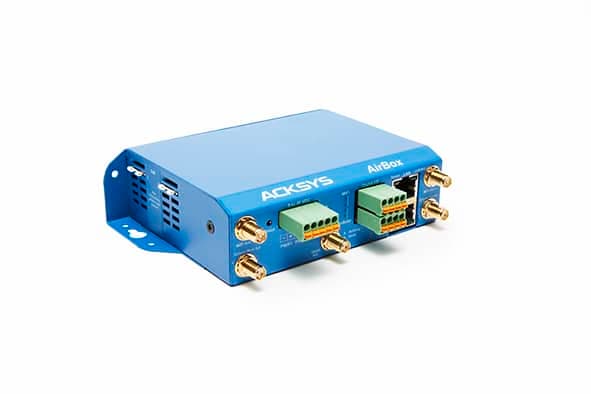

AirBox LTE is a cellular router (2G/3G/4G LTE) equipped with a dual-band WiFi interface (2.4 / 5 GHz), a GNSS interface (GPS, Galileo, GLONASS, Beidou), 2 Gigabit Ethernet ports and 2 isolated inputs/2 isolated outputs. It is designed for industrial applications (industry 4.0) and mobility (buses, vehicles…).
- 2G/3G/4G cellular router with auto-fallback
- E-mark certified (E2 - ECE R10)
- ITS application-ready (LTE band 38 support)
- 802.11n WiFi interface (MIMO 2T2R), 2.4/5 GHz
- Advanced security (VPN, Firewall, radius …)
- Automatic Cellular <> WiFi switching
- WiFi fast roaming (< 30ms)
- Shocks & vibrations proof (EN61373)
- Redundant wide range power supply input (+9 to +48 VDC) & PoE 802.3af (from model V2)

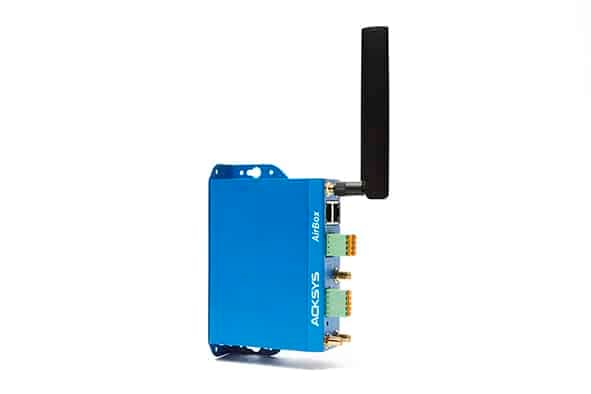

- Compact case, wall or DIN Rail mounting
- 2 isolated inputs + 2 isolated outputs
Prose
M2M and IIoT
AirBox LTE has WiFi and cellular wireless interfaces to ensure maximum flexibility for industrial applications. It allows a remote access to all your devices (maintenance, control for non-critical applications, remote I/O…). Its WiFi interface, configured in access point mode, also offers local access to the network from a tablet or a smartphone. It supports all kind of Ethernet flows (video, Modbus TCP, EtherNet/IP, Profinet…) and its 4 GPIOs make it possible to remotely control equipment or to read the logic state of an input signal. AirBox LTE ensures the integrity of data and network thanks to its onboard services (VPN, Firewall, WPA-ENTERPRISE…).
Mobility
AirBox LTE is equipped with high-speed wireless technologies for transmitting data to and from vehicles. For bus applications, AirBox LTE makes it possible to pool all data streams (SAE, ticketing, PIS, CCTV…) on a single router. Its WiFi roaming capabilities (<30 ms) ensure continuous data transmission as buses move to the depot. Its automatic switching capabilities between WiFi and 4G ensure service continuity when they go into operation. AirBox LTE allows vehicles tracking with its GNSS feature. It is also rugged (shock and vibration proof), E-marked ECE R10 and maintenance-free.
High availability

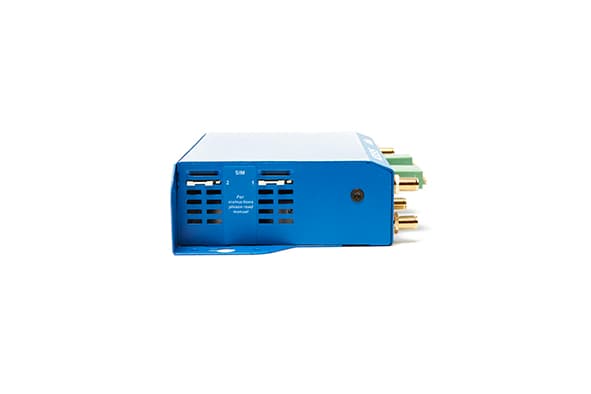

AirBox LTE has multiple redundant interfaces (2 Ethernet ports, 2 power inputs, 2 SIM cards) and its integrated watchdog guarantee a perfect continuity of operation.
Administration and product monitoring
Can be achieved directly from a web browser or from WaveManager, the centralized administration software provided by ACKSYS. Besides, its advanced routing and filtering functions make it easy to deploy large fleets of vehicles.
This product is also available in dual WiFi interface (11n + 11ac) industrial access point version, click here to access AirBox.
Specifications
- Ethernet interface
2-port Gigabit Ethernet 10/100/1000 auto-sensing, Base TX, auto MDI/MDIX, RJ45 Ethernet interface
- Cellular interfaces + navigation
1 LTE radio category 4, 3GPP E-UTRA release 10, MIMO DL with Rx diversity. Dual SIM. LTE, UMTS/HSPA+, GSM/GPRS/EDGE (worldwide). Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna.
- Cellular radio data rate
150 Mbps ↓ & 50 Mbps ↑ (maximum radio data rate)
- Cellular operating frequencies
FDD LTE: B1/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
TDD LTE: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
- WiFi interface
802.11n (MIMO 2T2R), 300 Mbps, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)
- WiFi radio data rate
802.11a: 6, 9, 12, 18, 24, 36, 48 & 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 & 54 Mbps 802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)
- WiFi operating frequencies
ISM : 2.4-2.483 GHz (up to 14 channels)
UNII : 5.15-5.25 GHz (up to 4 channels)
UNII-2 : 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext : 5.470-5.725 GHz (up to 11 channels)
UNII-3 : 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output power
WiFi :
- 2.4 GHz : up to 23.5 dBm (aggregate)
- 5 GHz : up to 21 dBm (aggregate)
LTE :
- GSM : up to 33 dBm
- Sensitivity max.
WiFi :
- 2.4 GHz : -94 dBm
- 5 GHz : -96 dBm
LTE WCDMA B5/B8 receiver : -110.5 dBm
- Radio connectors
- WiFi : 2 x RP-SMA
- LTE : 2 x SMA (female)
- GNSS : 1 x SMA (female)
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, client isolation in AP mode
- WiFi modes
AP, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS
- Ethernet networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software
- I/O
- 2 solid state relay output warnings (with configurable action), 1 Form A, 60VDC 80mA max
- 2 inputs for external device control 24VDC max
- LEDs Signaling
Radios : activity - status | Ethernet : 10/100/1000 link - activity | GPS : status | Power : on-off (x2)
- Power supply
+9VDC to +48VDC (redundant, 5-pin Phoenix connector) or PoE 802.3af powered device (from model V2)
- Consumption
9.6 W typical - 12 W maximum
- Dimensions & weight

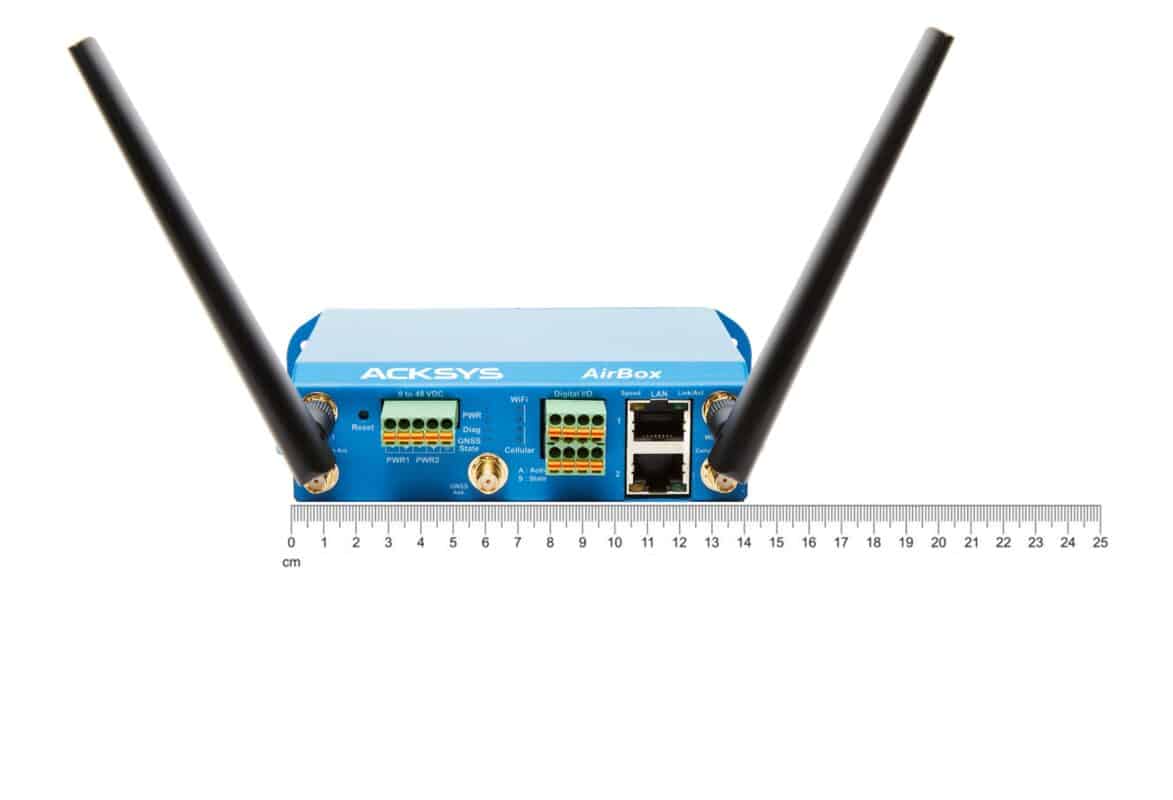

Compact case L : 141.2 x l : 99 x h : 35 mm, weight without accessories : 347g
- Standards and certifications
CE (RED)
Safety:
- EN 62368-1:2014+A11, EN62311
EMC:
- WiFi : EN301-489-1, EN301-489-17
- LTE : EN 301 489 [-19], [-52]
Radio:
- WiFi : EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS)
- LTE : EN 301 908 [-1, -2, -13], EN 301 511, EN 303 413
FCC
Radio:
- WiFi : FCC ID Z9W-RMB
- LTE : FCC ID XMR201708EC25E
E-marking
ECE R10
Environmental
Shocks & vibrations : EN 61373 (CAT 1 CLASS B)
- Environment
IP30
Operating temperature: -20°C to +60°C
Storage: -40°C to +85°C
Humidity: 0% to 99% (non-condensing)
- Warranty
5 years
