Product Description
Description

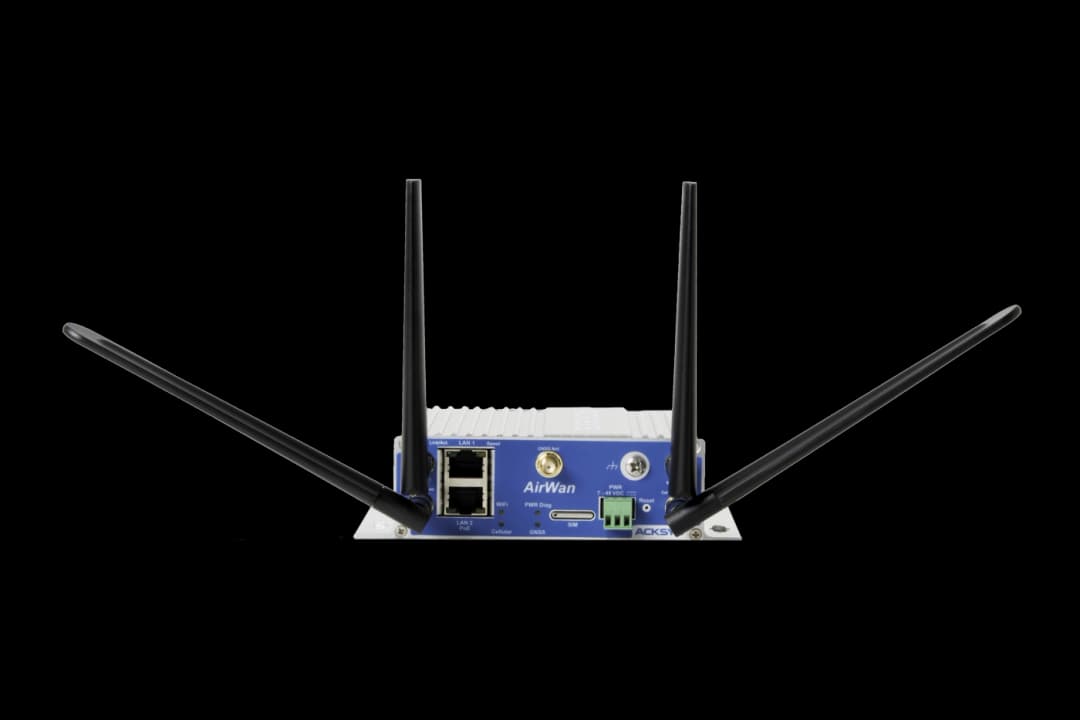

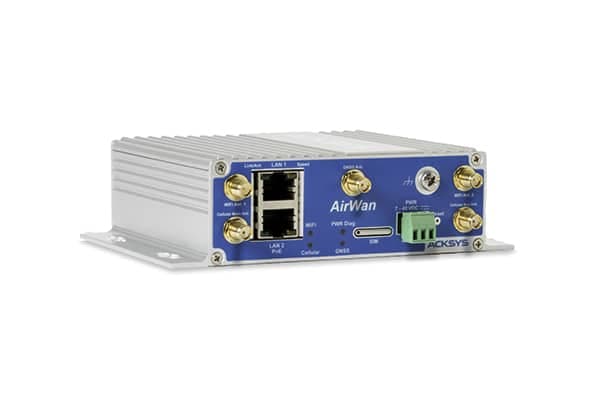

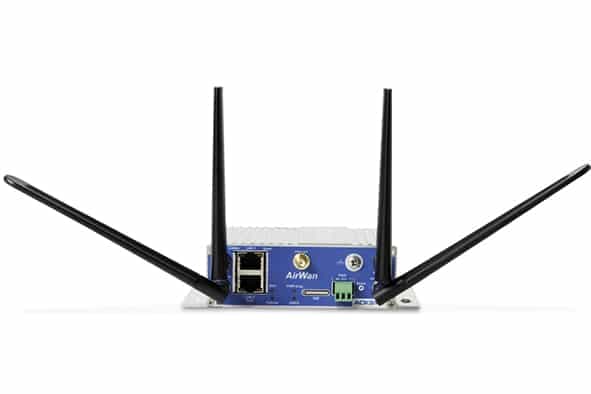

AirWan is a cellular router (2G/3G/4G LTE) equipped with a dual-band WiFi interface (2.4 / 5 GHz), a GNSS interface (GPS, Galileo, GLONASS, Beidou), 1 Giga Ethernet and 1 Fast Ethernet ports. It is designed for industrial applications (industry 4.0) and mobility (buses, vehicles …).
- Dual SIM 2G/3G/4G cellular router with auto-fallback
- E-mark certified (E2 - ECE R10)
- WiFi access point, client or repeater modes
- Mesh function to wirelessly interconnect APs
- Advanced security (VPN, Firewall, radius …)
- Automatic Cellular <> WiFi switching
- High availability: 2 Ethernet ports, wide range power supply input (+7 to +48 VDC), PoE+

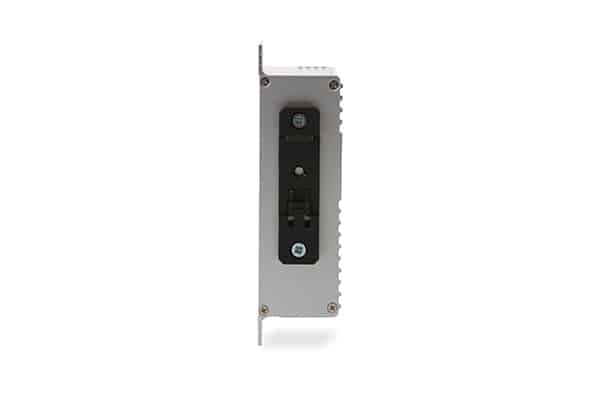

- Compact case, wall or DIN Rail mounting
- Centralized administration and configurations Management
Prose
M2M and IIoT
A wireless WiFi & 4G/LTE gateway, AirWan provides remote access to all your industrial equipment (maintenance, non-critical application control, process monitoring, etc.) and sends field data to the cloud (sensor data, remote I/O feedback, image/video capture, etc.). Its “Fast Roaming” feature (<30ms) combined with its ability to automatically switch between WiFi and 4G/LTE ensures perfect continuity of operation and makes it ideal for all types of mobile applications.
Mobility
AirWan is equipped with high-speed wireless technologies for transmitting data to and from vehicles. For bus applications, AirWan makes it possible to pool all data streams (SAE, ticketing, PIS, CCTV…) on a single router. Its WiFi roaming capabilities (<30 ms) ensure continuous data transmission as buses move to the depot. Its automatic switching capabilities between WiFi and 4G ensure service continuity when they go into operation. AirWan allows vehicles tracking with its GNSS feature. It is also rugged (shock and vibration proof), E-marked ECE R10 and maintenance-free.
Administration and product monitoring
Can be achieved directly from a web browser or from WaveManager, the centralized administration software provided by ACKSYS. Besides, its advanced routing and filtering functions make it easy to deploy large fleets of vehicles.
Specifications
- Ethernet interface
1 port Gigabit Ethernet 10/100/1000 and 1 port Fast Ethernet 10/100 auto-sensing, Base TX, auto MDI/MDIX, RJ45 Ethernet interface
- Cellular interfaces + navigation
1 LTE radio category 4, 3GPP E-UTRA release 11, MIMO DL with Rx diversity, Dual nano SIM
4G LTE, UMTS/HSPA+, GSM/GPRS/EDGE (worldwide).
Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna.
- Cellular radio data rate
150 Mbps ↓ & 50 Mbps ↑ (maximum radio data rate)
- Cellular operating frequencies
FDD LTE: B1/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
TDD LTE: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
- WiFi interface
802.11n (MIMO 2T2R), 300 Mbps, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)
- WiFi radio data rate
802.11a: 6, 9, 12, 18, 24, 36, 48 & 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 & 54 Mbps
802.11n: MCS0-7, 2T2R2 streams (6.5 to 300 Mbps)
- WiFi operating frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up to 4 channels
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output power
WiFi:
- 2.4 GHz: up to 23.5 dBm (aggregate)
- 5 GHz: up to 21 dBm (aggregate)
LTE: GSM: up to 33 dBm
- Sensitivity max.
WiFi:
- 2.4 GHz: -94 dBm
- 5 GHz: -96 dBm
LTE WCDMA B5/B8 receiver: -110.5 dBm
- Radio connectors
WiFi: 2 x RP-SMA
LTE: 2 x SMA (female)
GNSS: 1 x SMA (female)
- Security
Firewall, DoS, https, MAC filtering, WPA2/WPA3-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, client isolation in AP mode, WIDS
- WiFi modes
AP, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS
- Ethernet networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router, carriage coupling system (SRCC)
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software save / restore configuration key (C-Key)
- LEDs Signaling
Radios: activity - status
Ethernet: 10/100 link - activity
Power: on-off
Diagnostic
- Power supply
7 to 48 VDC, 3 point Phoenix connector or PoE 802.3af
- Consumption
9 W typical - 12 W maximum
- Dimensions & weight
Compact rugged aluminium enclosure, L: 147 x l: 100 x h: 41 mm, weight without accessories: 382g
- Environment
IP40 seal rating
Operating: -20°C to +60°C (HR 0-99%)
- Standards and certifications
CE (RED)
Security: EN 62368-1, EN62311
CEM: EN301-489
Radio :
- WiFi: EN 300 328 [2.4 GHz], EN 301 893 [5GHz, DFS]
- LTE: EN 301 908 [-1, -2, -13], EN 301 511, EN 303 413
FCC
Radio:
- WiFi: FCC ID Z9W- RMB
- LTE: FCC ID XMR201708EC25E
Automobile
CEM: E2/ R10 (UTAC E2/R10)
Environmental:
- Shock and vibration: EN 61373
- Fire/smoke: UNR118, RoHS, WEEE
- Warranty
5 years
