ACKSYS

AirWan-M12

Industrial WiFi Access Point

11n WiFi and 4G cellular router with positioning (GNSS), for road applications and tramway

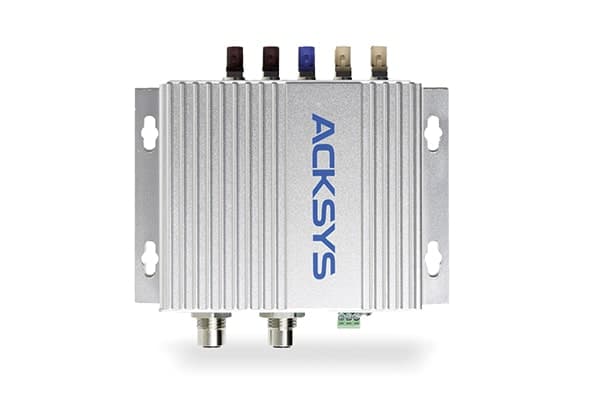

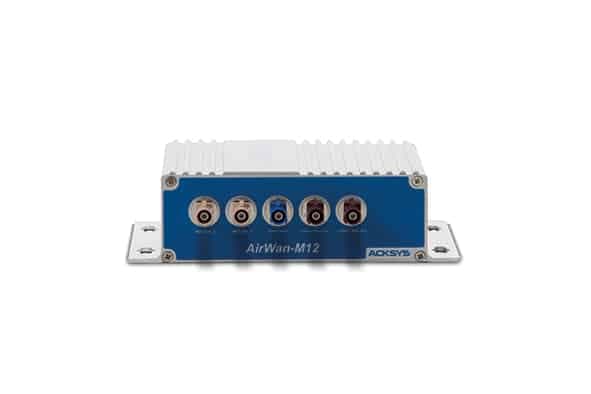

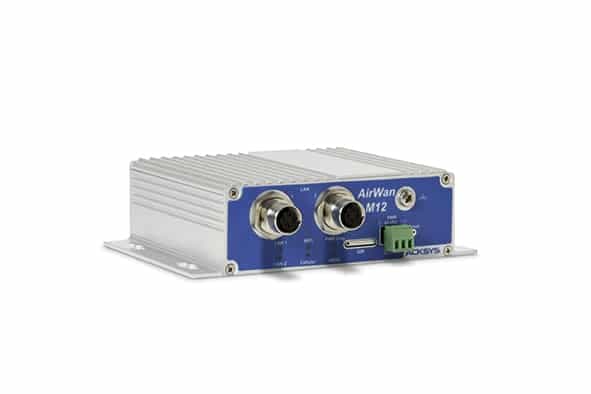

ACKSYS AirWan-M12

Description

AirWan-M12 is a simple, reliable and cost-effective solution for connecting fleets of vehicles such as buses, trams, trucks, emergency and public safety vehicles, etc., thanks to its cellular (2G/3G/4G LTE), dual-band WiFi (2.4/5GHz) and GNSS (GPS, Galileo, GLONASS, Beidou) interfaces, as well as its 2 Fast Ethernet ports.

  • Dual SIM 4G LTE router + positioning (GNSS)
  • WiFi router (with fast roaming <30ms) or access point
  • M12 & FAKRA connectors, ITxPT compliant
  • Automatic Cellular <> WiFi switching
  • Designed for road & trams applications
  • ECE R10 & EN50155 certified, shocks & vibrations proof…
  • Compact case, wall mounting
  • Centralized administration and configurations management

Prose

Mobility

AirWan-M12 is equipped with high-speed wireless technologies for transmitting data to and from vehicles. For public transport applications (bus and trams), AirWan-M12 makes it possible to pool all data streams (SAE, ticketing, PIS, CCTV…) on a single router. Its WiFi roaming capabilities (<30 ms) ensure continuous data transmission as buses move at the depot. Its automatic switching capabilities between WiFi and 4G/LTE ensure service continuity when they go into operation. AirWan-M12 allows vehicles tracking with its GNSS feature. It is also rugged (shock and vibration proof), E-marked ECE R10 and maintenance-free.

Administration and product monitoring

Can be achieved directly from a web browser or from WaveManager, the centralized administration software provided by ACKSYS. Besides, its advanced routing and filtering functions make it easy to deploy large fleets of vehicles.

Specifications

Specifications

Ethernet interface

2 ports Fast Ethernet 10/100 auto-sensing, Base TX, auto MDI/MDIX, 4-points M12 D-coded Ethernet interface

Cellular interfaces + navigation

1 LTE radio category 4, 3GPP E-UTRA release 11, MIMO DL with Rx diversity

LTE, UMTS/HSPA+, GSM/GPRS/EDGE (worldwide)

Dual Nano SIM

Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna.

Cellular radio data rate

150 Mbps ↓ & 50 Mbps ↑ (maximum radio data rate)

Cellular operating frequencies

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28

LTE-TDD: B38/B39/B40/B41

WCDMA: B1/B2/B4/B5/B6/B8/B19

GSM: B2/B3/B5/B8

WiFi interface

1 radio IEEE 802.11a/b/g/n 2T2R, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)

WiFi radio data rate

802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

802.11n: MCS0-7, 2T2R 2 streams (6.5 to 300 Mbps)

WiFi operating frequencies

ISM: 2.4-2.483 GHz (up to 14 channels)

UNII: 5.15-5.25 GHz (up to 4 channels)

UNII-2: 5.25-5.35 GHz (up to 4 channels)

UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)

UNII-3: 5.725-5.825 GHz (up to 4 channels)

Supports DFS and TPC

Output power

WiFi:

  • 2.4 GHz: up to 20.5 dBm

  • 5 GHz: up to 18 dBm

LTE / 4G:

  • GSM: up to 33 dBm
Sensitivity max.

WiFi:

  • 2.4 GHz: -92 dBm

  • 5 GHz: -96 dBm

LTE WCDMA B5/B8: -110.5 dBm

Radio connectors

5 fakra connectors: WiFi (2 x I-coded), LTE (2 x D-coded), GNSS (1 x C-coded) according to ITxPT standard

Security

Firewall, DoS, https, filtrage MAC, WPA2/WAP3-Personal & Enterprise (IEEE 802.1X radius), WEP, tunnels L2 (GRE), VPN (OpenVPN, IPsec), SNMP V3, isolation of clients in AP mode, Wireless Intrusion Detection System (WIDS)

WiFi modes

AP, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS

Ethernet networking

Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay

Ethernet routing

Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router

Administration

http, https, SNMP agent (V1, V2C, V3), WaveManager administration software

LEDs Signaling

Radio: activity and status

Ethernet: link 10/100, activity

Power: on-off

Diagnostic

Power supply

7 to 48 VDC, 3 point Phoenix connector or PoE 802.3af, A/endspan mode compatible

Consumption

9W typical power consumption / Recommended power supply: 12W

Dimensions &amp; weight

Product: compact rugged aluminium enclosure, (147 x 41 x 100 mm), 420 g

Standards and certifications

CE (RED)

Security: EN 62368-1, EN62311

CEM: EN301-489

Radio:

  • WiFi: EN 300 328 [2.4 GHz], EN 301 893 [5GHz, DFS]

  • LTE: EN 301 908 [-1, -2, -13], EN 301 511, EN 303 413

FCC

Radio:

  • WiFi: FCC ID Z9W- RMB

  • LTE: FCC ID 2ATM8EG25G, IC 25391-EG25G

Automotive

CEM: ECE R10 (UTAC E2/ R10)

Environmental:

  • Shock and vibration: EN 61373

  • Fire/smoke: UNR118, RoHS, WEEE

Railway

CEM: EN 50155

Environmental:

  • Shock and vibration: EN 61373

  • Fire/smoke: EN45545

Warranty

5 years
