Product Description

ACKSYS

AirXroad/4P

Industrial WiFi Access Point

11n WiFi access point, Ethernet bridge, repeater & MESH point for automotive & heavy duty applications

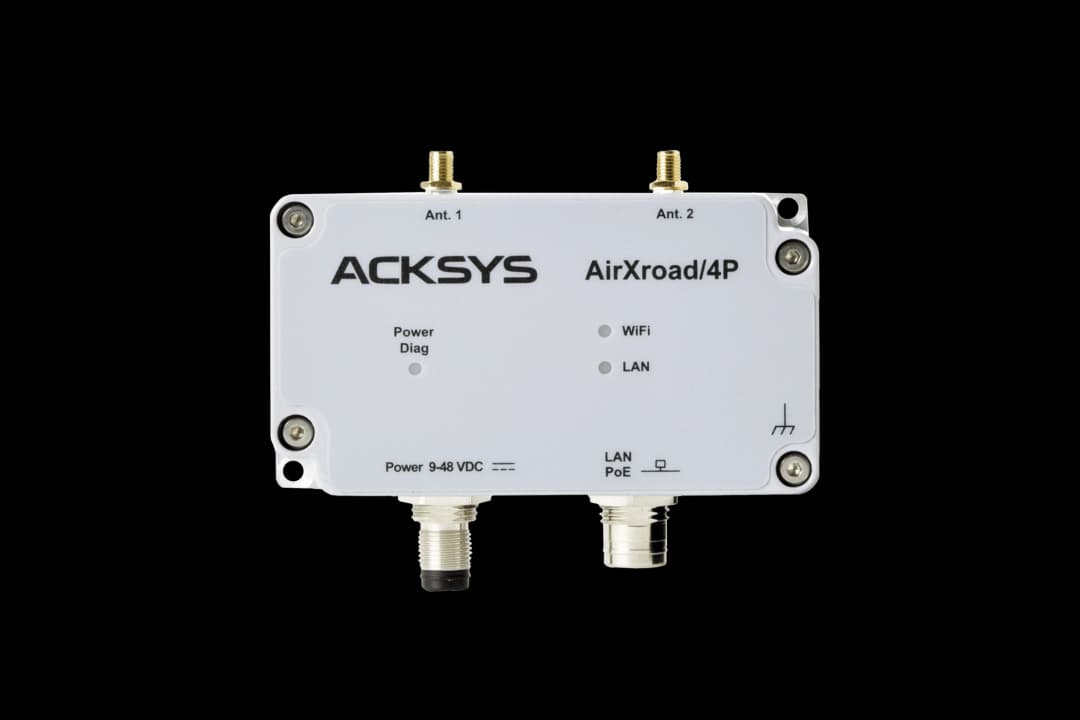

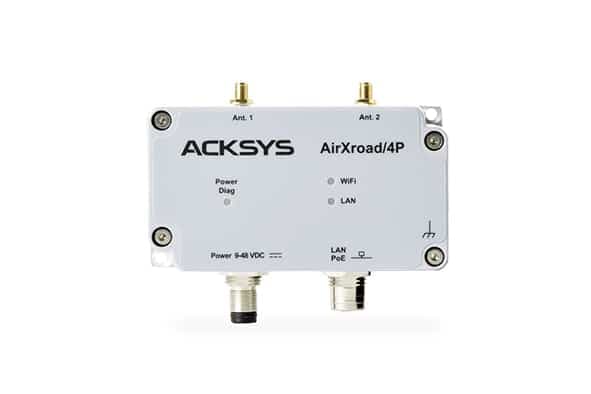

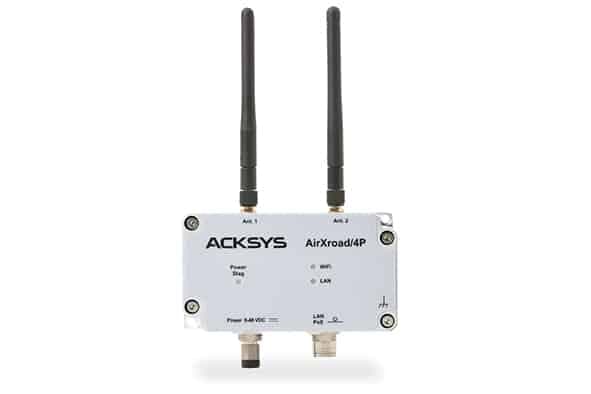

ACKSYS AirXroad/4P

Description

AirXroad/4P is a compact rugged enclosure equipment, ideally designed for applications in road transportation, depots, warehouses, agriculture, manufacturing floors, docks, distribution centers, shipyards and lumberyards. It can be mounted in trucks, city buses, forklifts, trailers, tractors or cranes or in any rotating machinery, for material handling, real-time information transmission, and inventory management.

  • All-in-one: AP/client/repeater/Mesh/router

  • E-mark certified (E2)

  • WiFi 802.11a/b/g/n (MIMO 2T2R), radio data rate up to 300 Mbps, 2.4/5 GHz

  • Easy and secure configuration: web browser (HTTPS), SNMPV3, WaveManager

  • Operating System: WaveOS

  • DC power supply input (+9VDC to +48VDC) & PoE 802.3af

  • Multichannel fast roaming (in client mode)

  • Shock & vibration proof rugged aluminium enclosure IP66 seal rating

  • E-marking (ECE R10 certification for integration in onboard vehicles)

Prose

The device relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability.

It fulfills the most severe requirements in terms of operating environment: from -20°C to +60°C, shock and vibration proof, protection against dust and water projections (IP66).

AirXroad/4P is E-marked ECE R10 (EMC standard for electronic equipment installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipment.

Specifications

Specifications

Ethernet Interface

1-port Fast Ethernet 10/100 Base TX auto-sensing, auto MDI/MDIX cross-over, 4 pts M12 connector

WiFi Interface

1 radio IEEE 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz

WiFi Radio Data Rate

802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)

Operating Frequencies

ISM: 2.4-2.483 GHz (up to 14 channels)

UNII: 5.15-5.25 GHz (up to 4 channels)

UNII-2: 5.25-5.35 GHz (up to 4 channels)

UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)

UNII-3: 5.725-5.825 GHz (up to 4 channels)

Supports DFS and TPC

RF Output power

2.4 GHz: 23.5 dBm (aggregate) / 5 GHz: 21 dBm (aggregate)

FR Sensitivity

Receiver: -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n

Antennas Connections

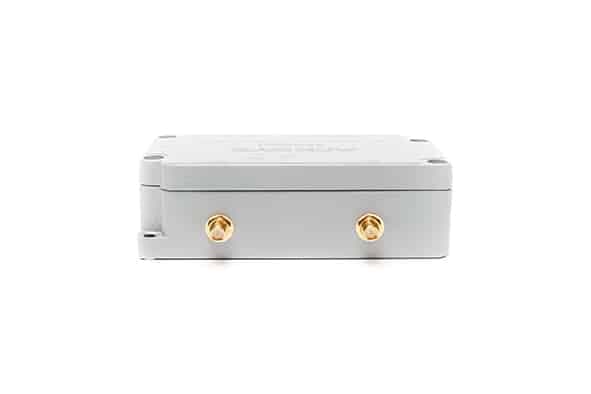

2 RP-SMA male connectors

Security

Firewall, DoS, https, MAC filtering, WPA2/WPA3-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, Wireless Intrusions Detection System (WIDS)

WiFi Modes

Access point, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS

Administration

http, https, SNMP agent (V1, V2C, V3), ACKSYS WaveManager administration software

Ethernet Networking

Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS

Ethernet Routing

Relay Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router

LEDs Signaling

Radio: activity - status - DFS detection Ethernet: link 10/100 - activity Power Diagnostic

Power Supply

+9VDC to +48VDC M12 connector 4-point A-coded & PoE 802.3af (15.4 W) mode A/endspan compatible

Consumption

Maximum average: 5.8 W / Recommended power supply: 7 W

Mechanical specifications

Dimensions: 115 mm x 64 mm x 34 mm Weight: 319 g

IP rating

IP66

Environmental conditions

Operating temperature: -20°C to +60°C

Storage: -40°C à +85°C

Relative humidity: 0% to 99% (non-condensing)

Standards and Certifications

CE (RED)

Safety: EN 62368-1:2014+A11, EN62311

EMC: EN301-489-1, EN301-489-17

Radio: EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS)

FCC

Radio: FCC ID Z9W-RMB

IC

Radio: IC ID 114688A RMB

E-marking

ECE R10

Environmental

Shocks & vibrations: EN 61373 (CAT 1 CLASS B)

Climatic: EN60068-2 [-1, -2, -30]

Warranty

5 years
