Product Description

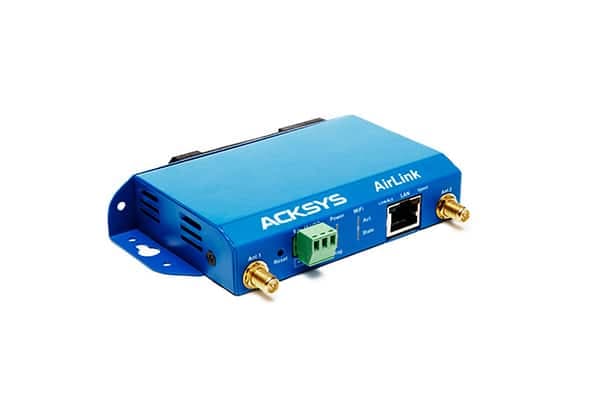

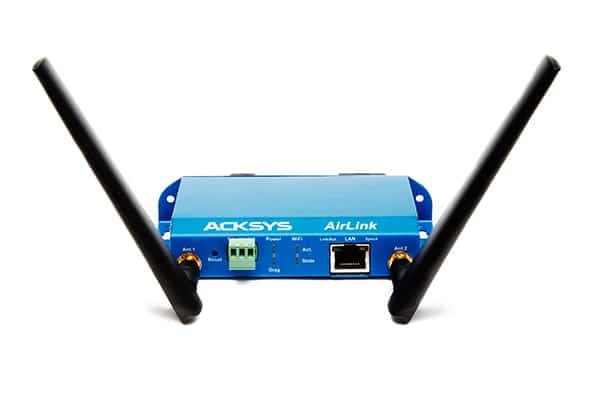

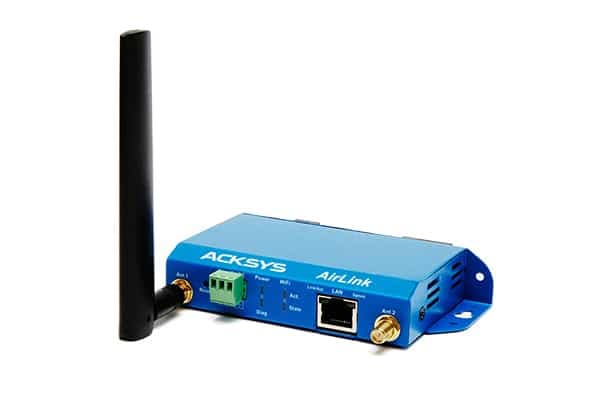

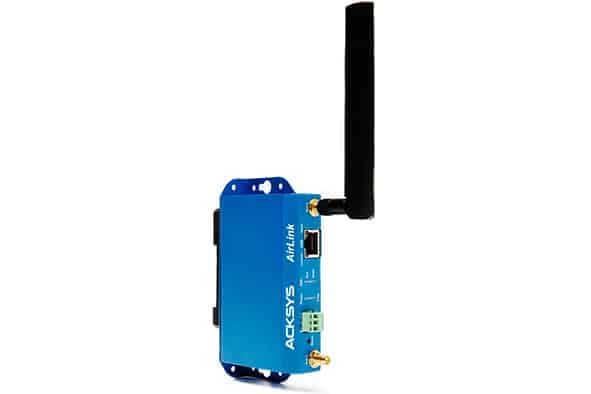

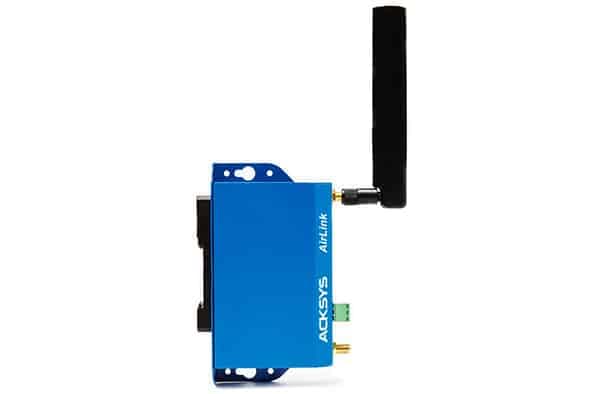

Indoor WiFi Bridge
Industrial WiFi Access PointSecure, quick and easy to install wireless point-to-point link
Indoor WiFi Bridge
Industrial WiFi Access PointSecure, quick and easy to install wireless point-to-point link
Description

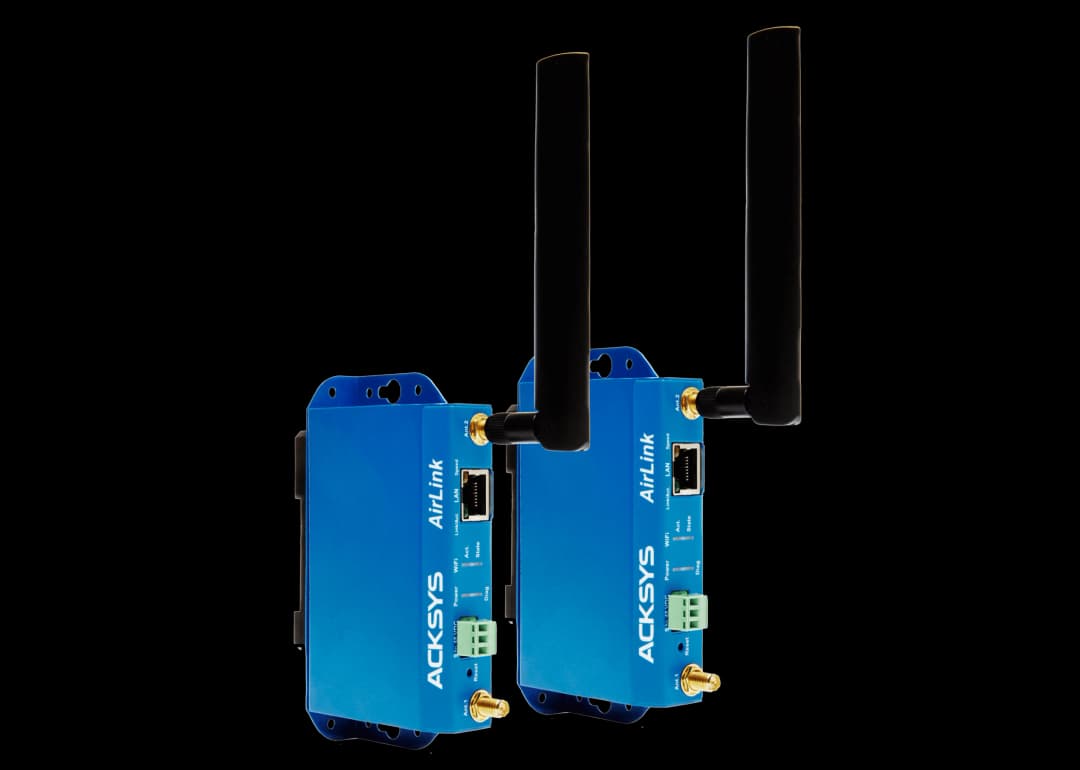

ACKSYS offers a secure wireless solution that is quick and easy to install, allowing you to create a wireless bridge between two independent Ethernet networks, two separate devices (PC, camera, printer, etc.) or two buildings by simply programming two Airlink_V2 standard units.

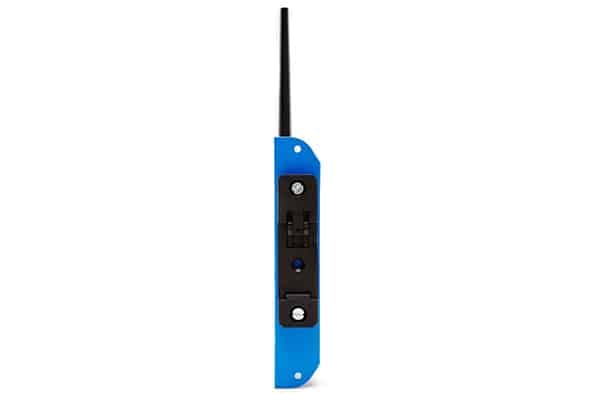

Indoor use: wall mounting or DIN rail
Outdoor use: installation in an outdoor cabinet with antennas adapted to the environment and to the distance to be covered (consults the list of additional accessories).
- Wireless connection of 2 networks or remote devices
- Easy commissioning using downloadable configuration files
- Secure link
- High speed communication up to 250 Mbps (depends on environment and distance)
- WaveOS operating system
- Power supply: +9VDC to +48VDC and PoE 802.3af
- Very compact cases, wall mounting or DIN rail
Specifications
- Ethernet Interface
1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, RJ45 Ethernet interface
- WiFi Interface
1 radio IEEE 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)
- WiFi Radio Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)
- Operating Frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up to 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output power
2.4 GHz: 23.5 dBm (aggregate) / 5 GHz: 21 dBm (aggregate)
- Sensitivity max.
2.4 GHz: -94 dBm / 5 GHz: -96 dBm
- Radio connectors
2 x RP-SMA
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, client isolation in AP mode
- WiFi Modes
Access point, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software
- LEDs Signaling
Radio: activity - status | Ethernet: link 10/100/1000 - activity | Power: on-off
- Power supply
+9VDC to +48VDC, 3-pin Phoenix connector & PoE Powered Device 802.3af (from model V2)
- Consumption
IDLE mode: 1.7 W / Maximum average: 5.8 W / Recommended power supply: 7 W
- Dimensions & weight
Compact case L: 103 x l: 67 x h: 24 mm, weight 225 g
- Standards and certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN301-489-1, EN301-489-17
Radio: EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS)
FCC
Radio: FCC ID Z9W-RMB
Environmental
Shocks and vibration: EN 61373 (CAT 1 CLASS B)
- Environment
IP30 Operating temperature: -20°C to +60°C , storage: -40°C to +85°C, humidity: 0% to 99% (non-condensing)
- Warranty
5 years
