Product Description

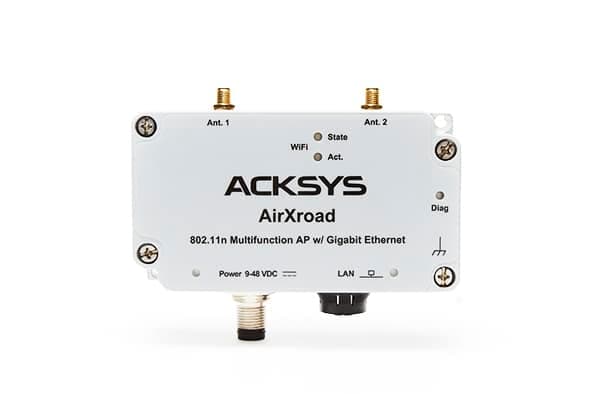

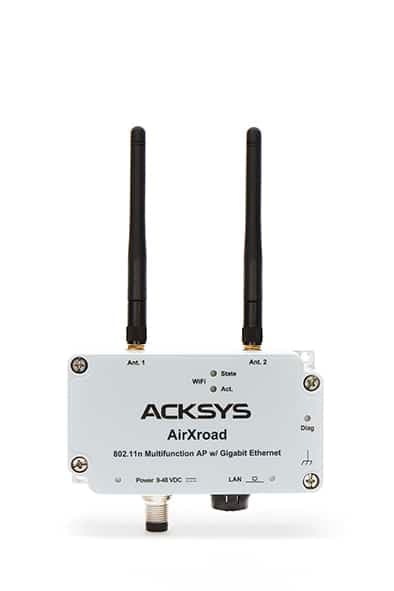

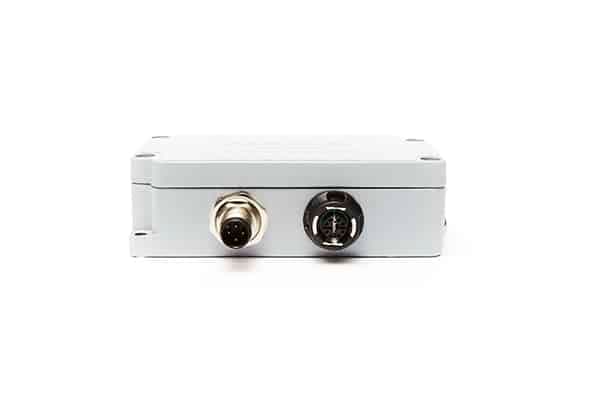

Outdoor WiFi Bridge
Industrial WiFi Access PointSecure, quick and easy to install wireless point-to-point link
Outdoor WiFi Bridge
Industrial WiFi Access PointSecure, quick and easy to install wireless point-to-point link
Description

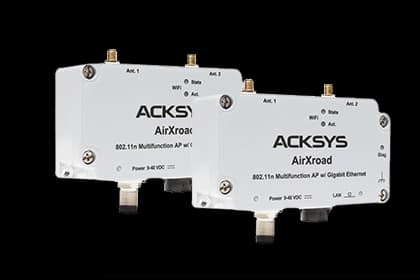

ACKSYS offers a secure wireless solution that is quick and easy to install, allowing you to create a wireless bridge between two independent Ethernet networks, two separate devices or two buildings by simply programming two AirXroad standard units (download configuration files).
Indoor use (harsh environment): wall mounting
Outdoor use: installation without additional protection with antennas adapted to the environment and the distance to cover (consult the list of additional accessories). To create an outdoor medium-distance WiFi bridge (on sight and respecting the Fresnel zone), we recommend the use of gain directional antennas
- Wireless connection of 2 networks or remote devices
- Easy commissioning using downloadable configuration files
- Secure link
- High speed communication up to 250 Mbps (depends on environment and distance)
- WaveOS operating system
- Power supply: +9VDC to +48VDC and PoE 802.3af
- Very compact cases, rugged and waterproof (IP66)
Specifications
- Ethernet interface
1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, 8 pts X-coded M12 connector
- WiFi interface
1 radio IEEE 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz
- WiFi radio data rate
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)
- Operating frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up to 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- RF Output power
2.4 GHz: 23.5 dBm (aggregate) / 5 GHz: 21 dBm (aggregate)
- FR Sensitivity
Receiver: -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n
- Antennas connections
2 RP-SMA male connectors
- WiFi modes
Access point, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS
- Administration
http, https, SNMP agent (V1, V2C, V3), ACKSYS WaveManager & WaveViewer administration softwares
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3
- Ethernet networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- LEDs Signaling
Radio: activity - status | Ethernet: link 10/100/1000 - activity | Power: on-off
- Power supply
+9VDC to +48VDC ULTRA-LOCK M12 4-point connector & PoE 802.3af
- Consumption
IDLE mode: 1.7 W / Maximum average: 5.8 W / Recommended power supply: 7 W
- Mechanical specifications
Dimensions: 115 mm x 64 mm x 34 mm Weight: 332 g
- IP rating
IP66
- Environmental conditions
Operating temperature: -40°C to +70°C, storage: -40°C à +85°C, relative humidity: 0% to 99% (non-condensing)
- Standards and certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN301-489-1, EN301-489-17
Radio: EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS)
FCC
Radio: FCC ID Z9W-RMB
IC
Radio: IC ID 114688A RMB
E-marking
ECE R10
Environmental
Shocks & vibrations: EN 61373 (CAT 1 CLASS B)
Climatic: EN60068-2 [-1, -2, -30]
- Warranty
5 years
