Product Description
Description

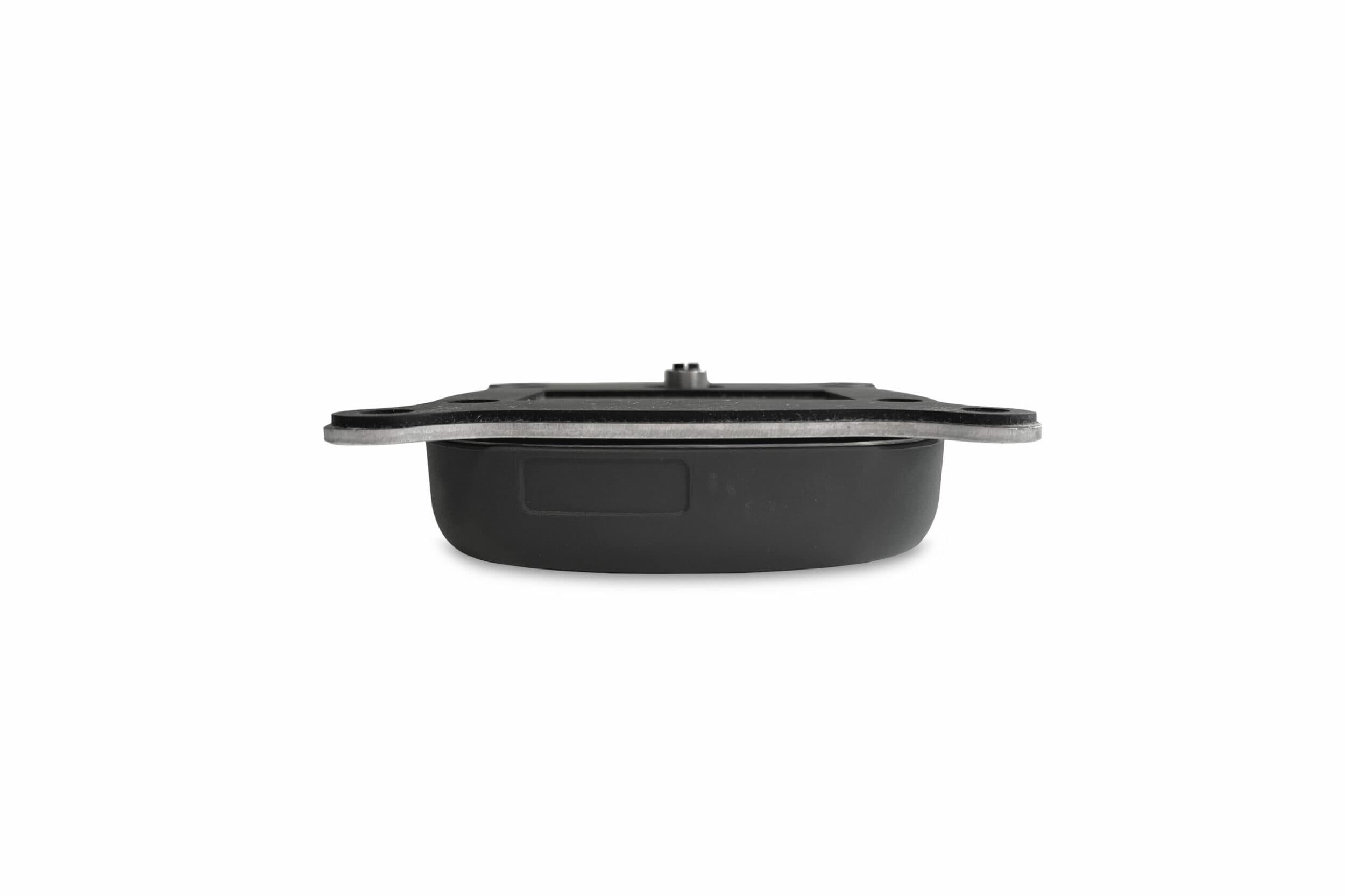

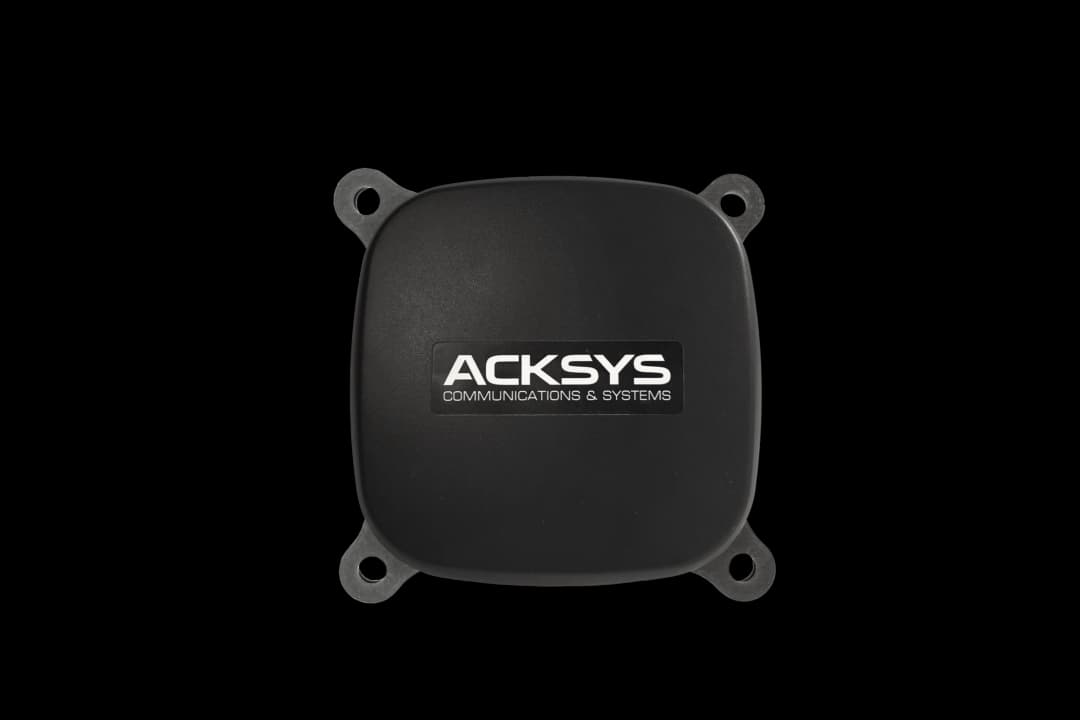

The RailBridger ACKSYS is a product designed specifically for inter-car and inter-train wireless connection. It is the ideal solution for train refurbishment or modernization projects, where there is no IP backbone or where the on-board network is limited (100 Mbps). Using wireless couplers is much easier and more cost-effective than using cables.
- Point-to-point interconnection solution operating in license-free 60 GHz frequency bands
- Based on the 802.11ad standard
- 1.2 Gbps connectivity
- Very Compact size with integrated beamforming antenna
- Rugged device designed for railway: shocks & vibrations proof, wide temperature range -40°C to +70°C, EN50155 and EN 45545-2 certified
- IP69K
- Plug & play installation
- Powered by standard PoE switch (802.3af)
- Maintenance-free
- Support of dynamic carriage composition
- No interference with other WiFi sources in the 2.4GHz and 5GHz bands
Specifications
- Physical interfaces

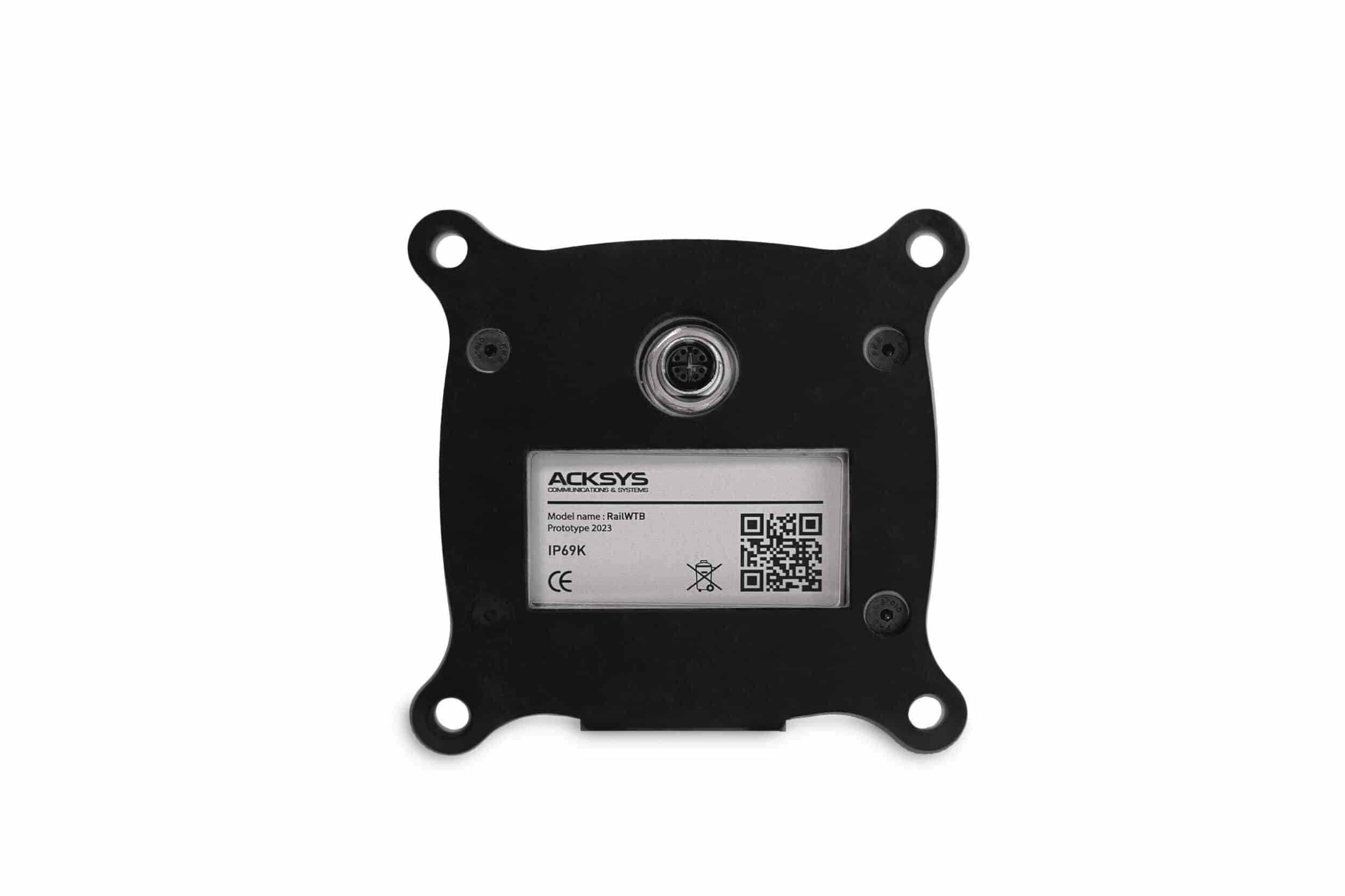

Outdoor Unit with integrated antenna PoE interface: outdoor CAT-5e or CAT-6 via M12 X-coded connector; Maximum cable length: 75m for 2500BaseT Mounting by 4 screws with flanges or external mounting plate
- Radio data rate
Max Capacity: Up to 1.5Gbps Channel Bandwidth: 2.16GHz Modulation: BPSK, QPSK, QAM (MCS 1-8); Single Carrier
- Output power
Up to 32dBm EIRP
- Performance
Link Acquisition time 5 seconds
- Ethernet routing
Layer 2 Bridge Mode
- Security
Management VLAN, SNMP v3, Encryption AES 128
- Administration
SNMP v3; HTTPS using web browser
- Operating frequencies
EN 302 567 V2.1.1 - Operation within the band 57-66 GHz
- Dimensions and weight
12x12x2.25 cm / 300g and 440g with mounting plate
- Power supply
802.3af standard PoE
- Consumption
Up to 12W
- Environment
Operating Temperatures -40° to +70°C Storage Temperatures -40° to +85°C IP-69K, NEMA-type 4
- Standards and certifications
US/CAN: UL 62368-1, UL 60950-22, CAN/CSA C22.2 62368-1, CAN/CSA C22.2 60950-22
CE/IEC: EN/IEC 62368-1, EN/IEC 60950-22
FCC: 47 CFR Part15, Subpart B, Class B
CE: EN 301 489-1, EN 301 489-17
CAN/CSA-CEI/IEC: ICES-003: 2017 Issue 6, Class B
AS/NZS: CISPR 32-2015 Class B
EMC: EN 50121-3-2, EN 50121-4 Class B, EN 50155
Electronic: EN 50155, IEC 60571
Shock & vibration: EN 61373, EN 50155, IEC 60571
Fire/smoke: EN 45545-2
- Warranty
Default 2 years, extendable to 5 years
- Reliability
MTBF >131,400 Hours for outdoor and rail environment
