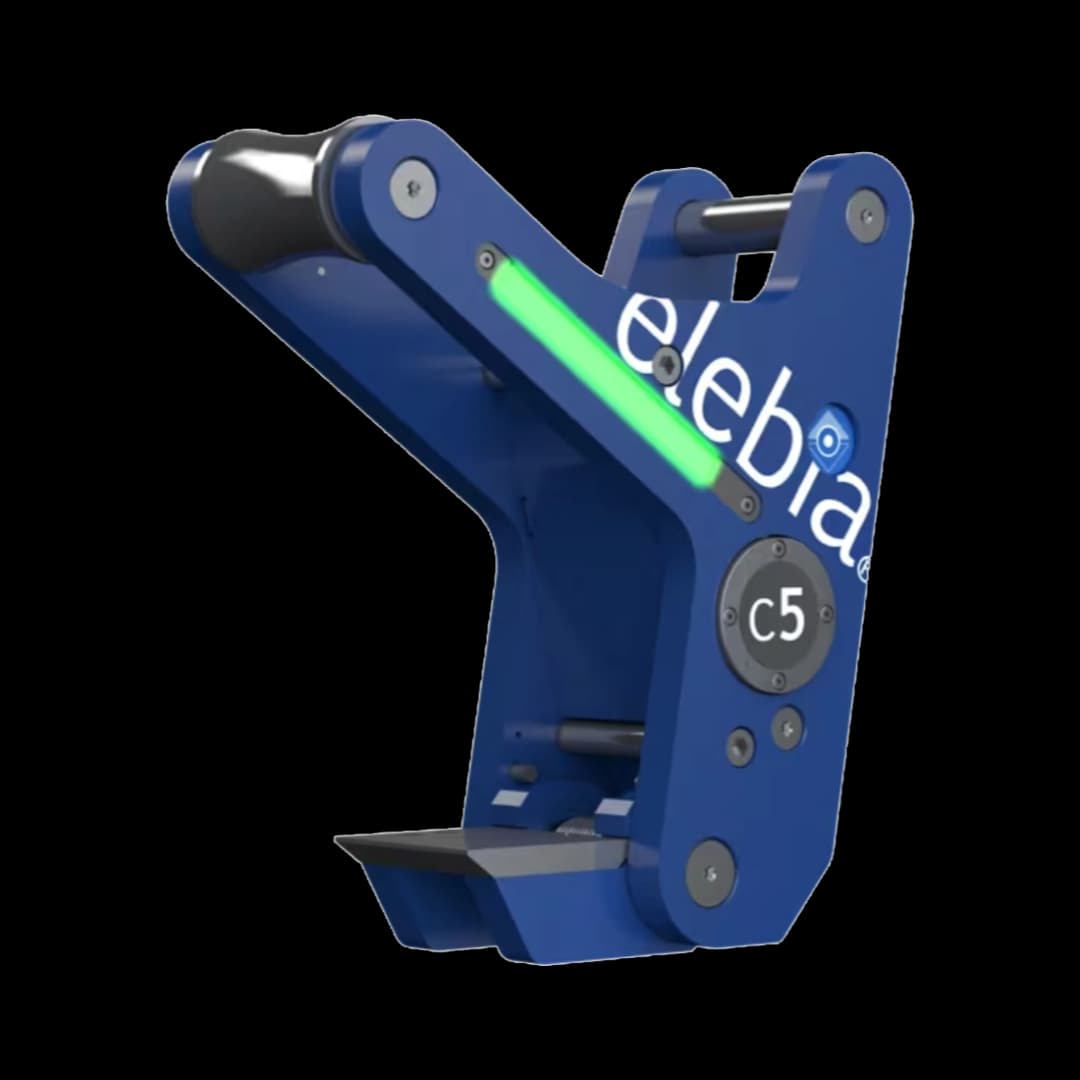

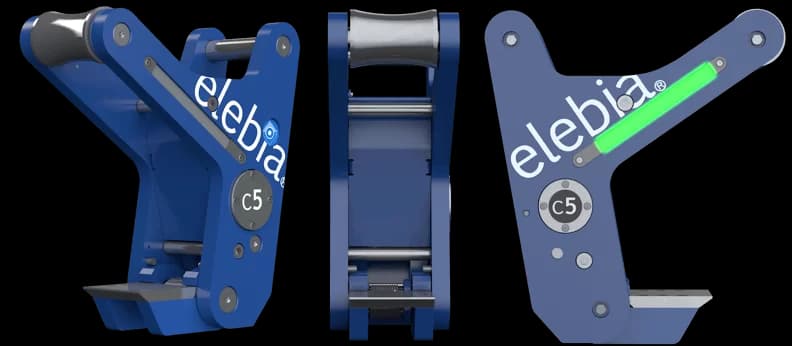

The C5 & C6 automatic horizontal lifting clamps have been designed for lifting and transferring steel plates, beams and pipe lifting clamps in a secure and safe manner.

Once the automatic clamps are fixed to the load that is being lifted, the automated process takes over. The crane driver/operator ensures by using the eMAX remote control that the lifting clamps are all in the same position before every lift. This information is relayed in real time and should there be any difference in the clamp's states, the remote control informs the crane operator immediately. Once all clamps are confirmed ready, the lifting operation can commence.

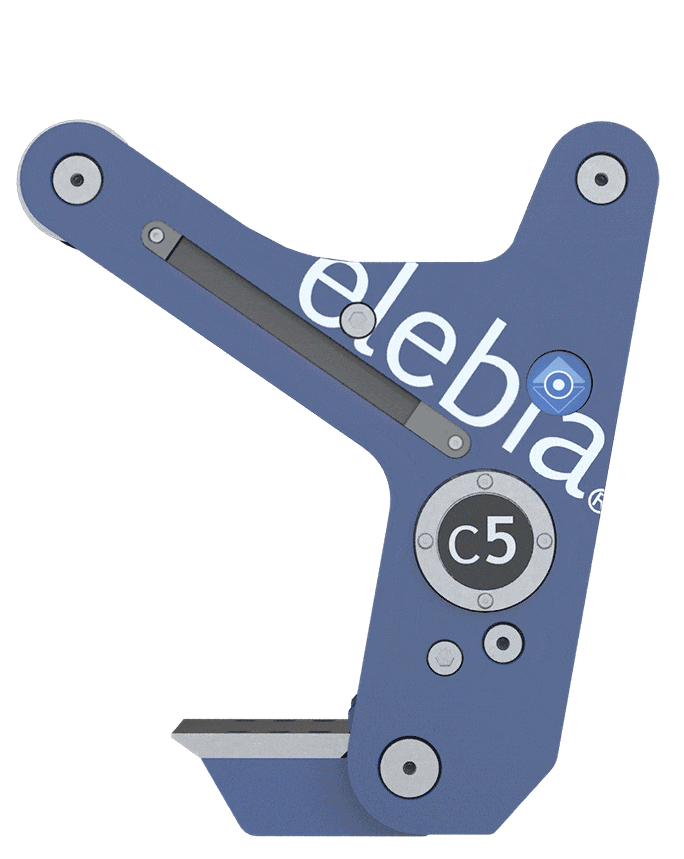

The High-Brightness LED status indicator is an additional safety measure that indicates the Lifting Clamp's status at all times. With this feature operators receive visual confirmation that the automatic release clamp is working properly.

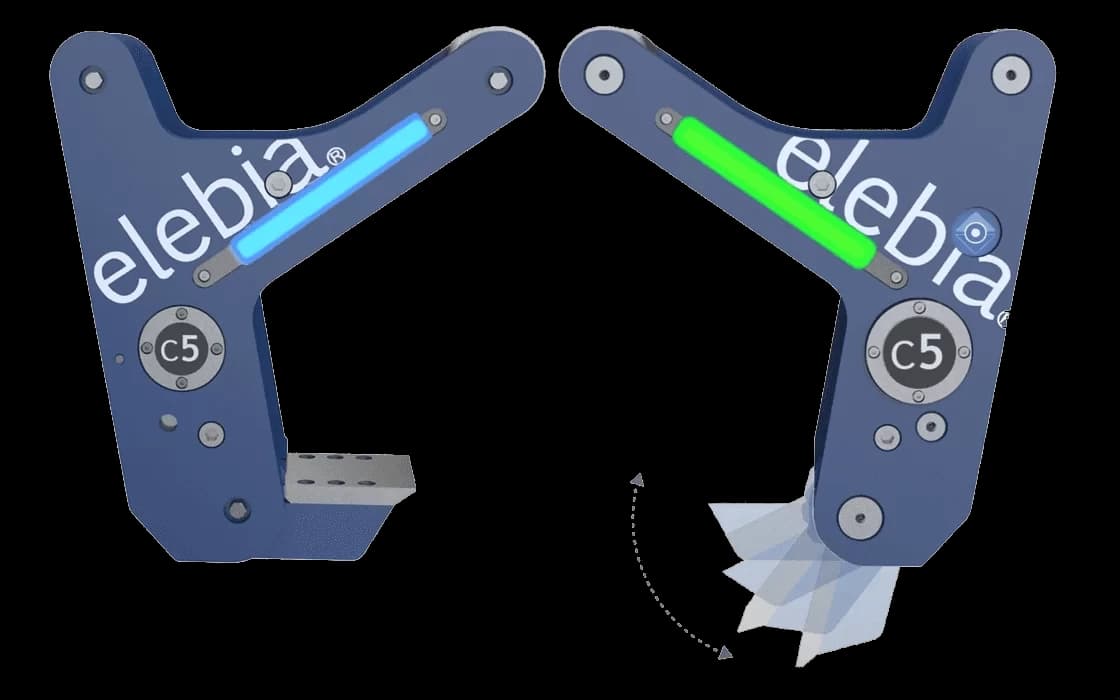

• Green: Unlocked / Release Load
• Red: Intermediate: Do Not Lift!
• Blue: Locked / Lift Load
• White: Low Battery

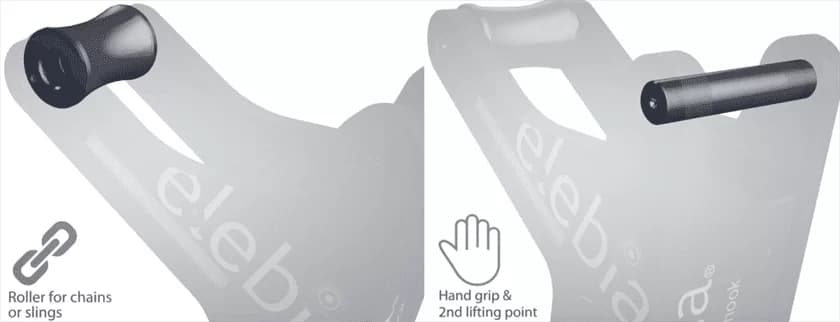

The C5 & C6 automatic release clamps include a roller for chains or slings and a hand grip that can also be used as a second lifting point. The hand grip allows the operator to manually maneuver the clamp whilst fixing it on the desired surface.

Easy to replace weared parts and to change the tip if to be used as a Pipe Lifting Clamp, a Beam Lifting Clamp or a Plate Lifting Clamp.

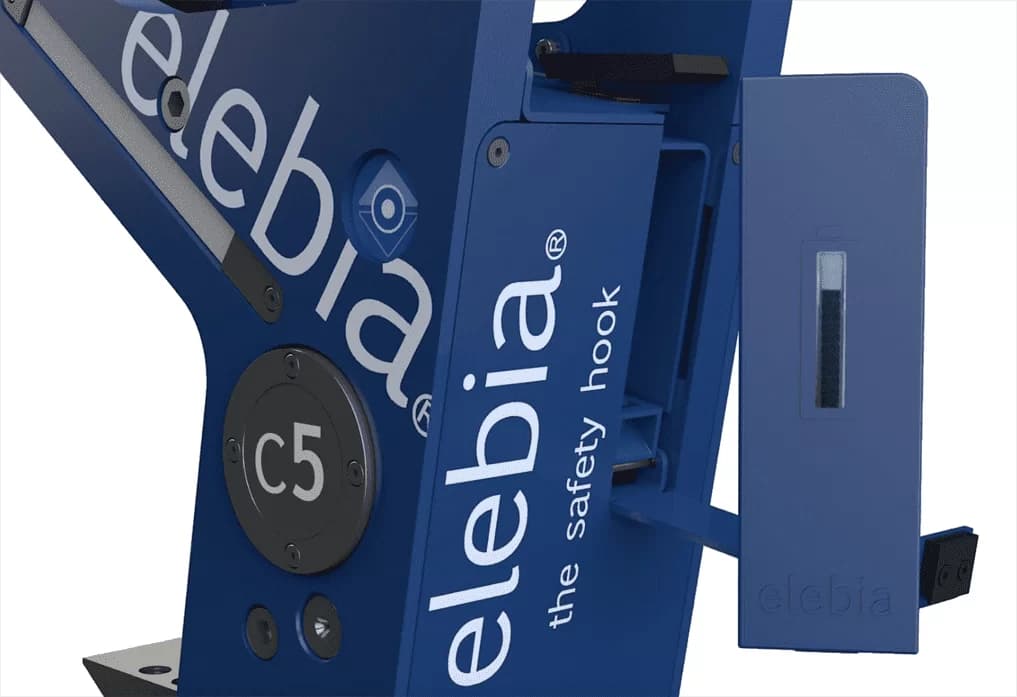

With the high-capacity battery, a simple 3 hour charge allows for more than 5.000 cycles or over 250 hours in standby mode. The new 14 segment E-ink charge status display along with new electronics and rechargeable Li-Ion technology guarantee an optimal autonomy and consumption of the battery. Charge the batteries with the Multiple Charger that's compatible with the C5 and C6 lifting clamps' batteries. The Multiple Charger can charge up to ten batteries simultaneously.

Open and close the C5 & C6 clamps or receive real-time information of weight, battery level, and other values of the lifting and manoeuvring operation. Just like the rest of our lifting products, the automatic lifting clamps can be paired to any of Elebia's remote controls.

Impossible to release the load while it is placed on the lifting clamp with automatic release. Just like the complete range of our lifting products, the automatic release lifting clamps are designed under a fail-safe principle that makes it impossible to drop a suspended load.

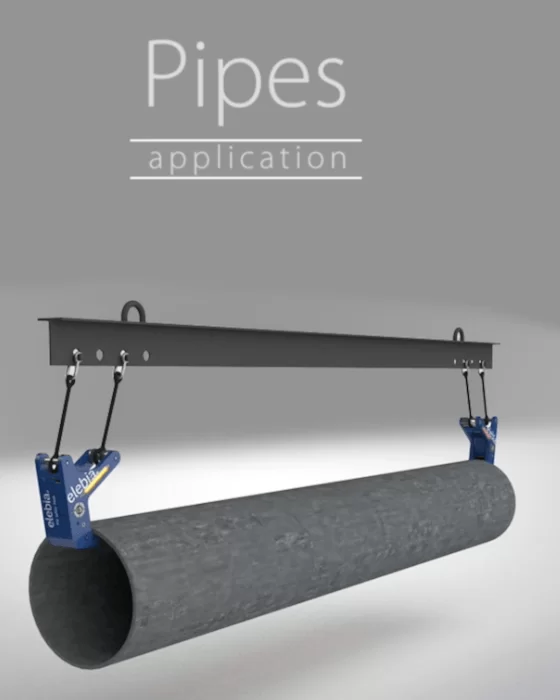

For horizontal lifting and moving of steel and concrete pipes. Thanks to the automatic release feature, the unloading operation is twice as fast, improving productivity. The pipe lifting clamp must always be used in pairs. The Working Load Limit indicated is per lifting clamp.

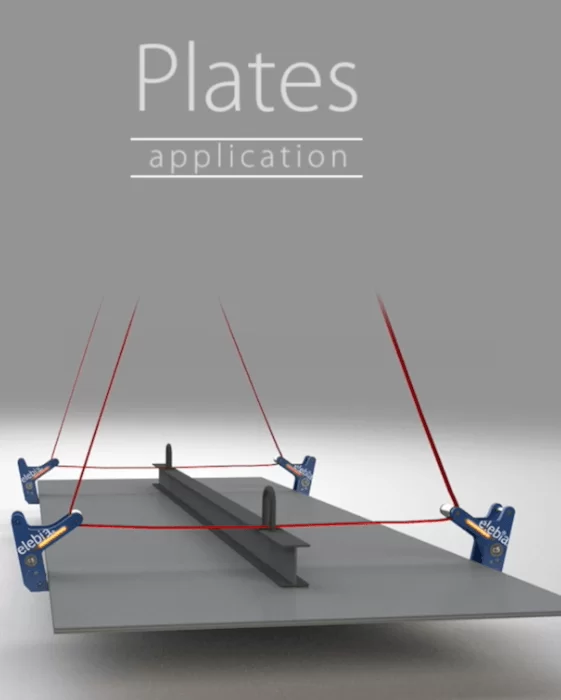

For horizontal lifting and moving of steel plates. The clamp's flat tip effectively inserts into small clearances, securing the load before each lift. This plate lifting clamp must always be used in pairs (or multiples). The Working Load Limit indicated is per lifting clamp.

For horizontal lifting and transportation of steel (H) beams. Replace the tip with tip for beams to lift beams safely and securely. The beam lifting clamp must always be used in pairs. The Working Load Limit indicated is per lifting clamp.
