Product Description
Description
The D10 is a 10 Tonne automatic drop test hook that allows you to drop any load safely and at a distance with the use of the remote control. No need to climb, use of ropes or cables to drop the load. Release the load effortlessly. from a safe distance. Experience the convenience of our automate quick drop system, making your workflow seamless and secure.
Highlights

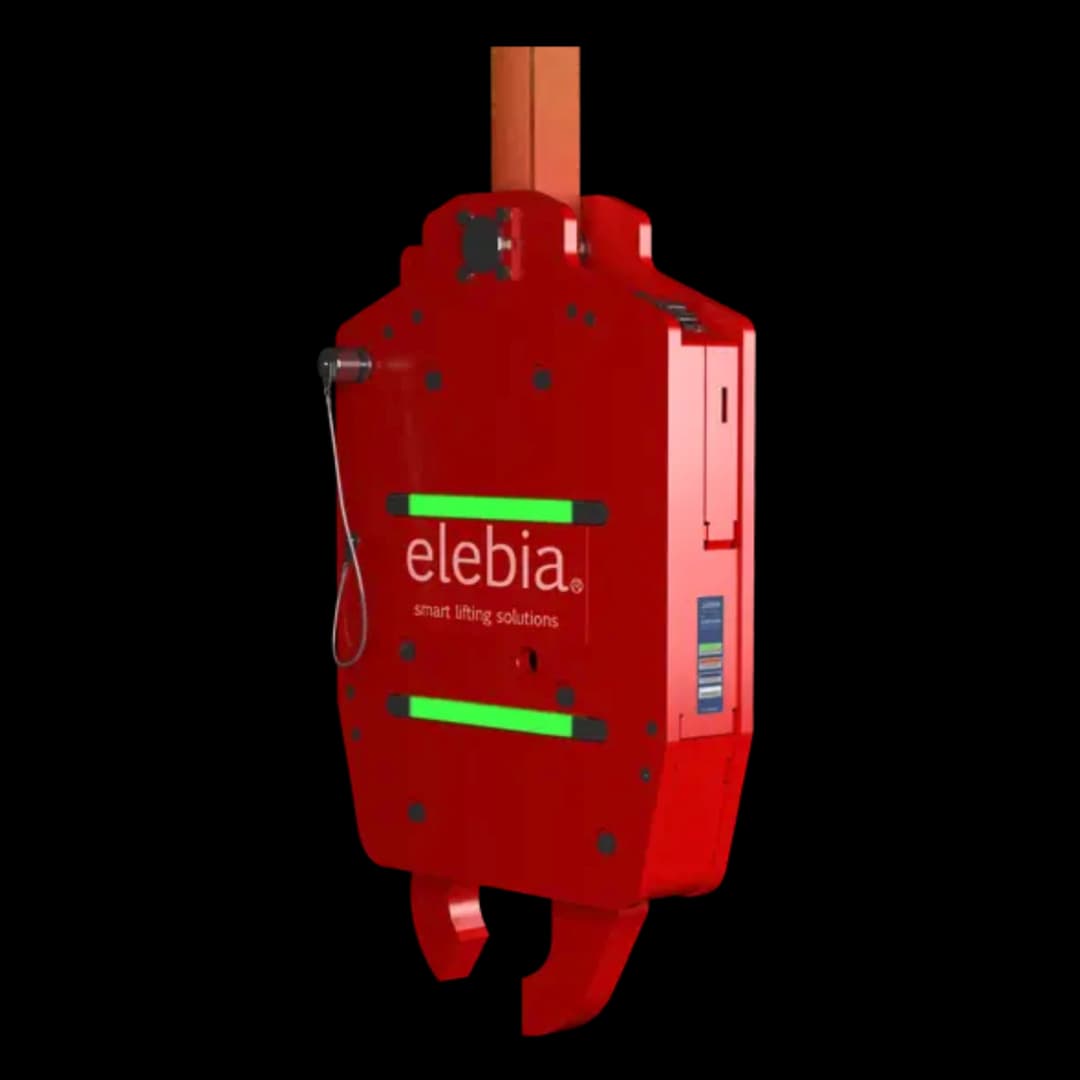

High-Brightness LED Status Indicator
The color of the LEDs indicates the state of the hook. Green: D10 is Open / Unlocked Red: Transitioning: Watch out! Load about to drop. Blue: D10 is Closed / locked White: Low Battery
Precision Load Cell in Quick Release Drop Tester
The D10 can be equipped with a load cell for precise load measurements during the lifting process. Our load cells provide quick and accurate readings, offering affordability and a longer lifespan compared to other sensors. Primarily used for weighing and preventing overloads, the load cell, when combined with the remote control, transforms our automatic drop test hook into a sophisticated and precise weighing scale with advanced features.

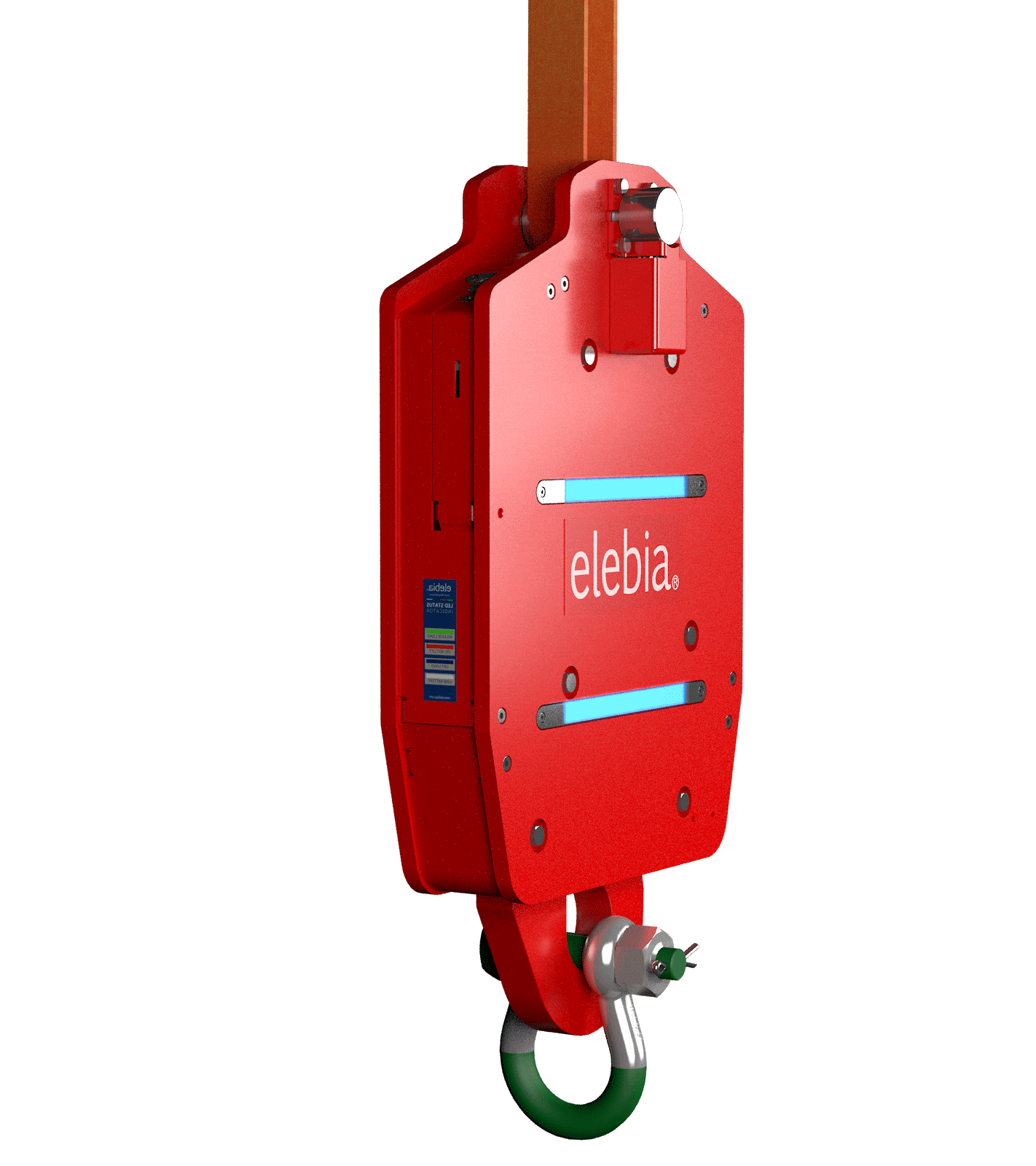

High-Capacity Battery
With the high-capacity battery, a simple 3 hour charge allows for a full day of productivity. The battery remains protected from accidental impacts as the slot cover is protected with a safety lock which protects the battery from falling in case of impact.

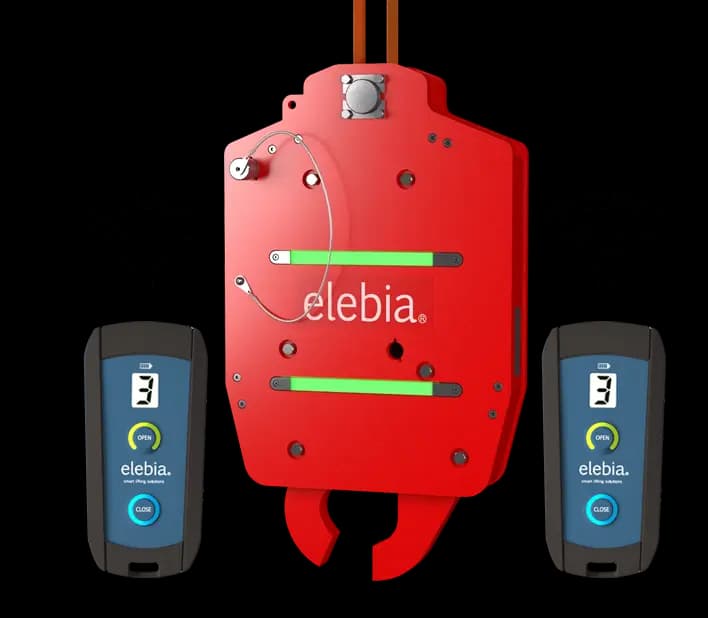

Dual Remote Controlled Release for Quick Release Hooks
The Elebia Drop Test Release Hook is designed for use with a dual remote control system. We have chosen to implement a dual remote control setup, employing two emini remotes to enhance error mitigation. Utilizing distinct frequencies for each remote adds an additional layer of security, making it more challenging for potential hackers to intercept and decipher the signals. The likelihood of inadvertent order transmission is greatly reduced, given the necessity for precise button sequences on each remote within predefined time parameters. For optimal operation, it is recommended to assign two separate workers to independently operate each remote. You can see how it works our remote release hooks.

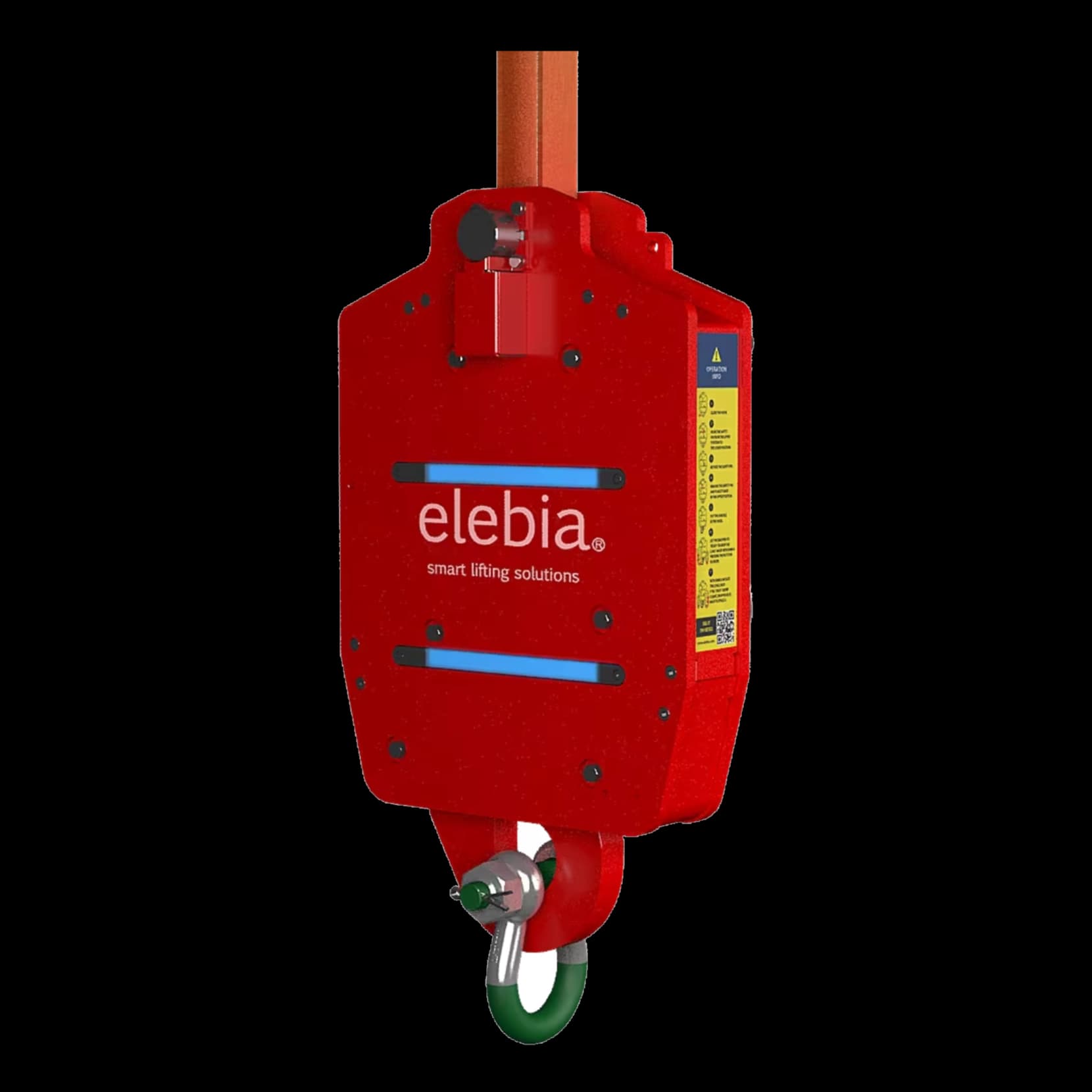

Shackle Integration with Drop Test Release Hook

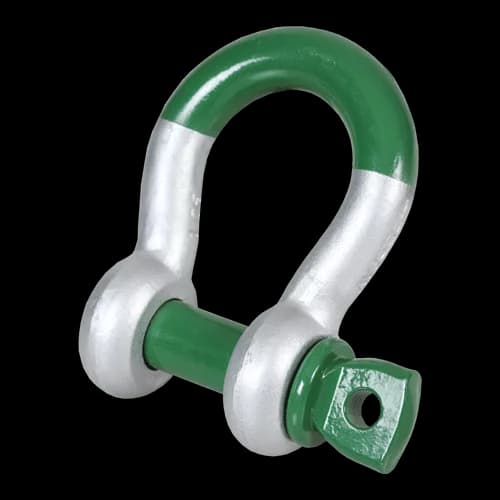

Our quick release drop tester is supplied with a shackle. The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin.
*The D10 has been specifically designed for use exclusively with the supplied shackle. Only in exceptional cases, and following prior evaluation and validation by Elebia, may the use of other connection elements between the D10 and the load be authorised.
Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety Factor: MBL equals 6 x WLL
Finish: hot dipped galvanized
Temp. Range: -40°C up to +200°C
Diameter Pin: 35mm. / 1.37in.
Certification: 2.1 / 2.2 / 3.1 / MTCa / ABS PDA / ABS MA / DNV 2.7-1a / DNV 2.7-1b / DNVGL-ST-0378 / CE
Standard: N 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A. From 2 t and upward these shackles comply with ASME B30.26
Frequently Asked Questions
What is a quick release hook drop test and why is it important?
A quick release drop test hook validates the hook's functionality under load release conditions, ensuring safe operation. This remote-controlled hook allows the release of materials from a certain height, making it essential to operate remotely for personnel safety.
How does the remote load drop hook enhance safety during tests?
The remote load drop hook minimizes human involvement in tests, reducing the risk of accidents during load release scenarios.
Can the quick release drop tester be customized for specific applications?
Yes, the quick release drop tester can be customized to suit specific applications, providing flexible solutions for various testing needs.
What are the key features of the drop test release hook?
Key features include remote control capability, quick release, and a minimum release weight of 0 kg, allowing it to open without requiring a minimum load. It also includes a load cell to measure the weight suspended from the hook.
What safety measures are included in the quick release hook drop test?
Safety measures include remote operation and a Dual Remote Controlled Release for Quick Release Hooks. This dual remote setup uses two mini remotes, each on distinct frequencies, providing an extra layer of security. This approach minimizes the risk of interference or unintended command execution, as operators must press specific buttons on both remotes within a set time frame to release the load. It is recommended that two separate workers operate each remote independently for optimal safety
Videos
Shackle-Based Direct Release Test
Big Bag Drop with Sling Attachment
How to Use the D10: Step-by-Step Guide
Specifications
- Regulatory Standards
EN ISO12100:2012
EN 61000-6-4:2002
EN 61000-6-2:2002
EN 60204-1:2007
Directive on Machine Safety (D2006/42/EC).
EMC Directive (2014/30/EU).
Low Voltage Directive (2014/35/EU).
Radio Equipment Directive (2014/53/EU).
Assurance of Production Quality in accordance with ISO9001.
ARIB Construction Design Certification Number 203-JN0689.
FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System.
Each mechanism is delivered with the CE stamp and a declaration of CE conformity.
elebia is a member of F.E.M. (European Federation of Materials Handling).
