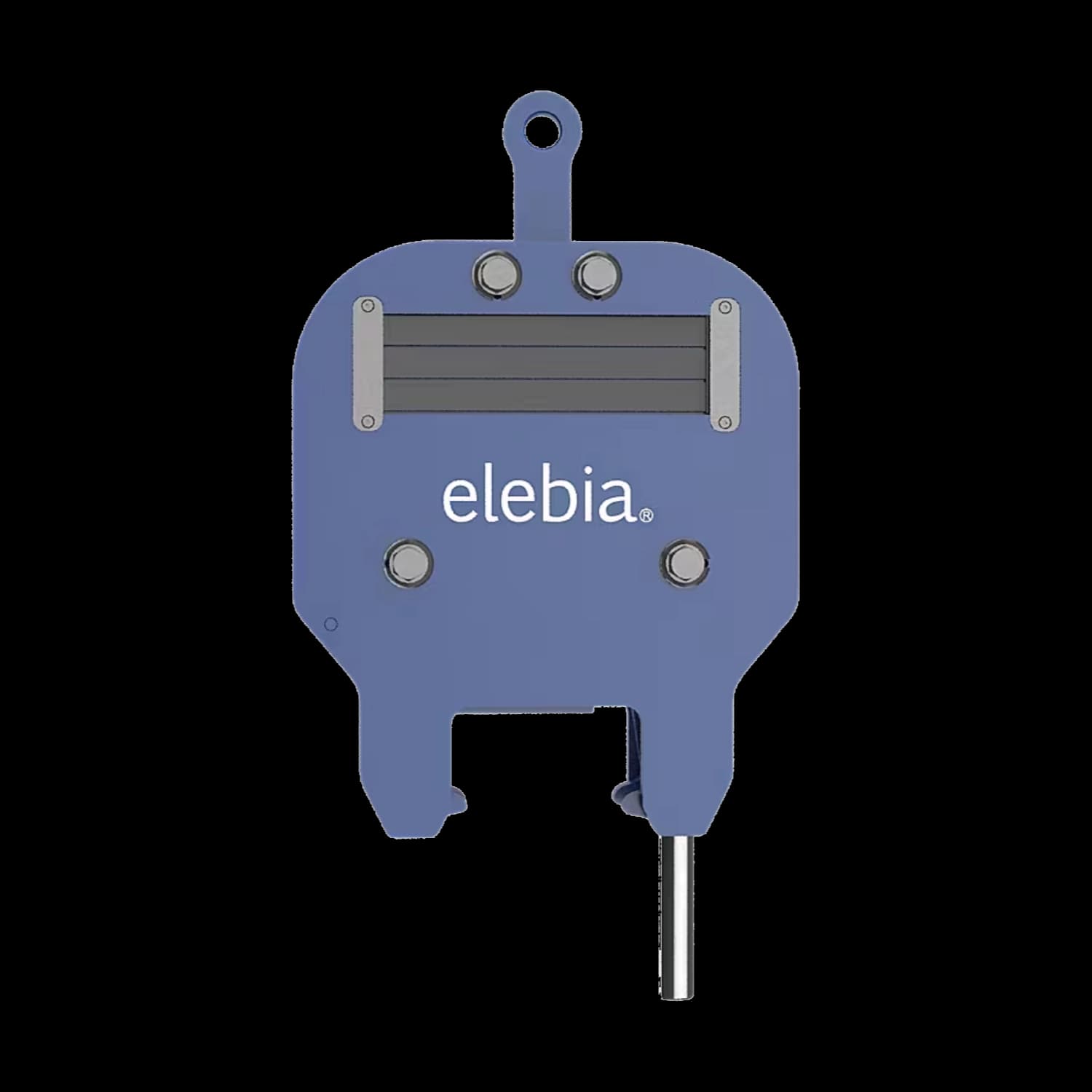

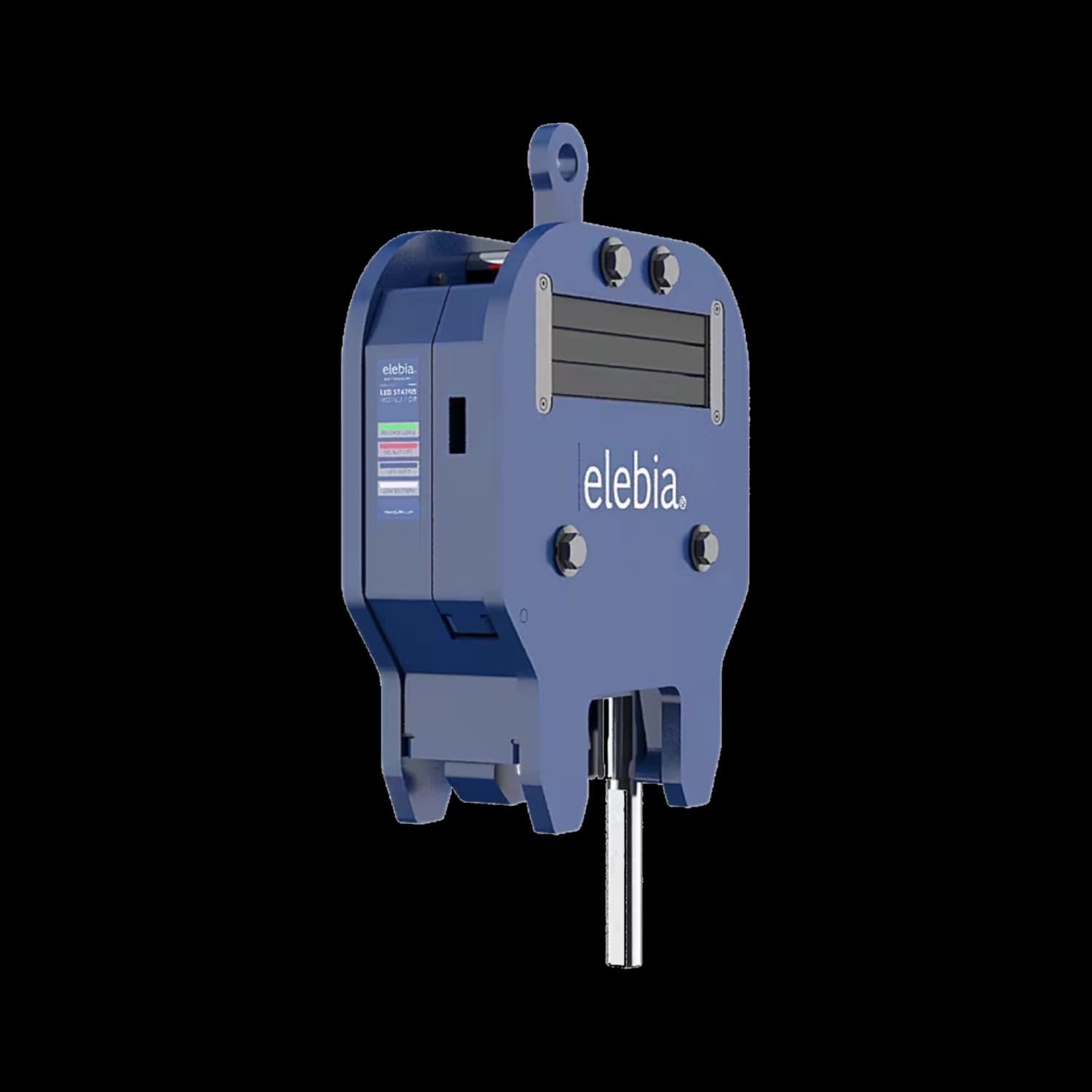

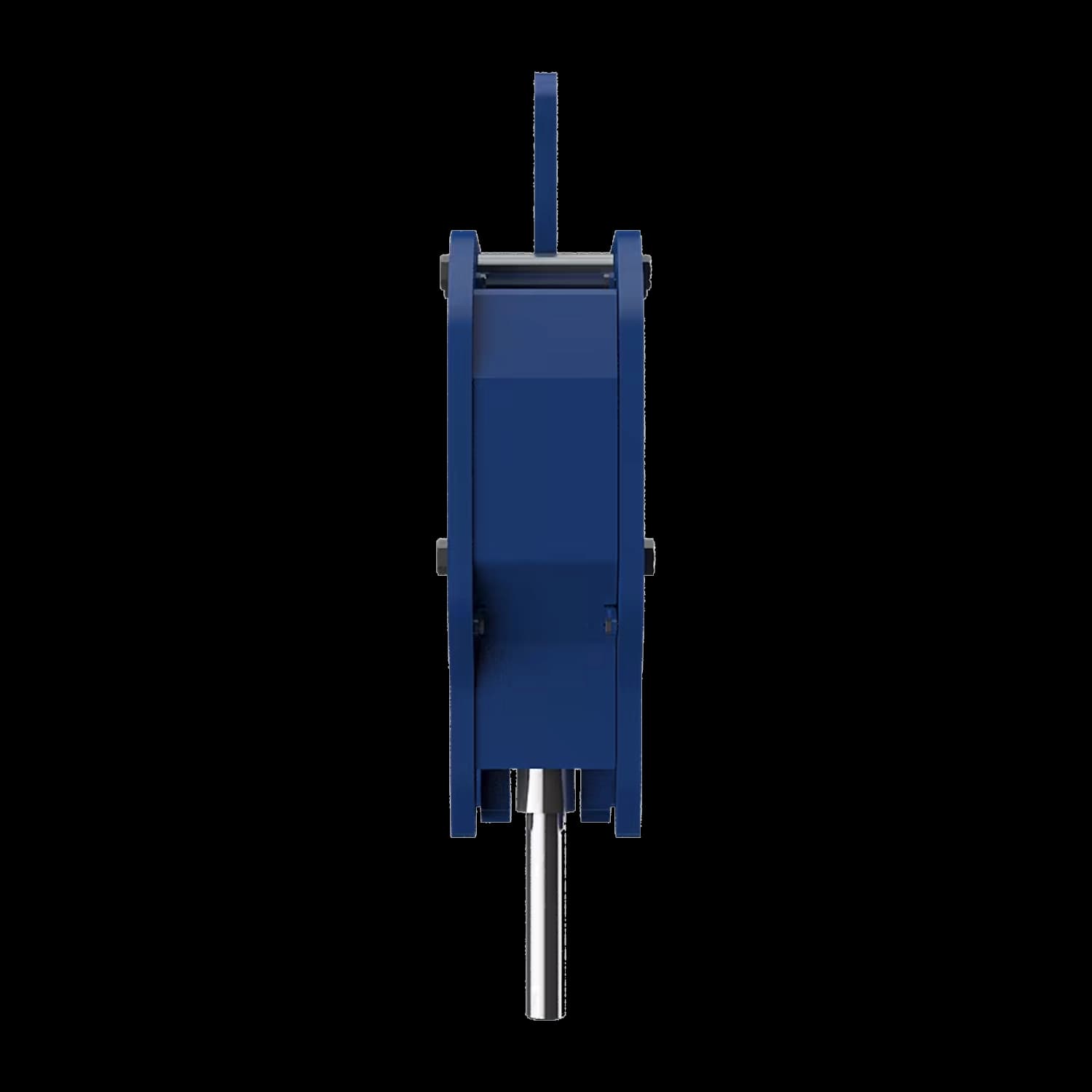

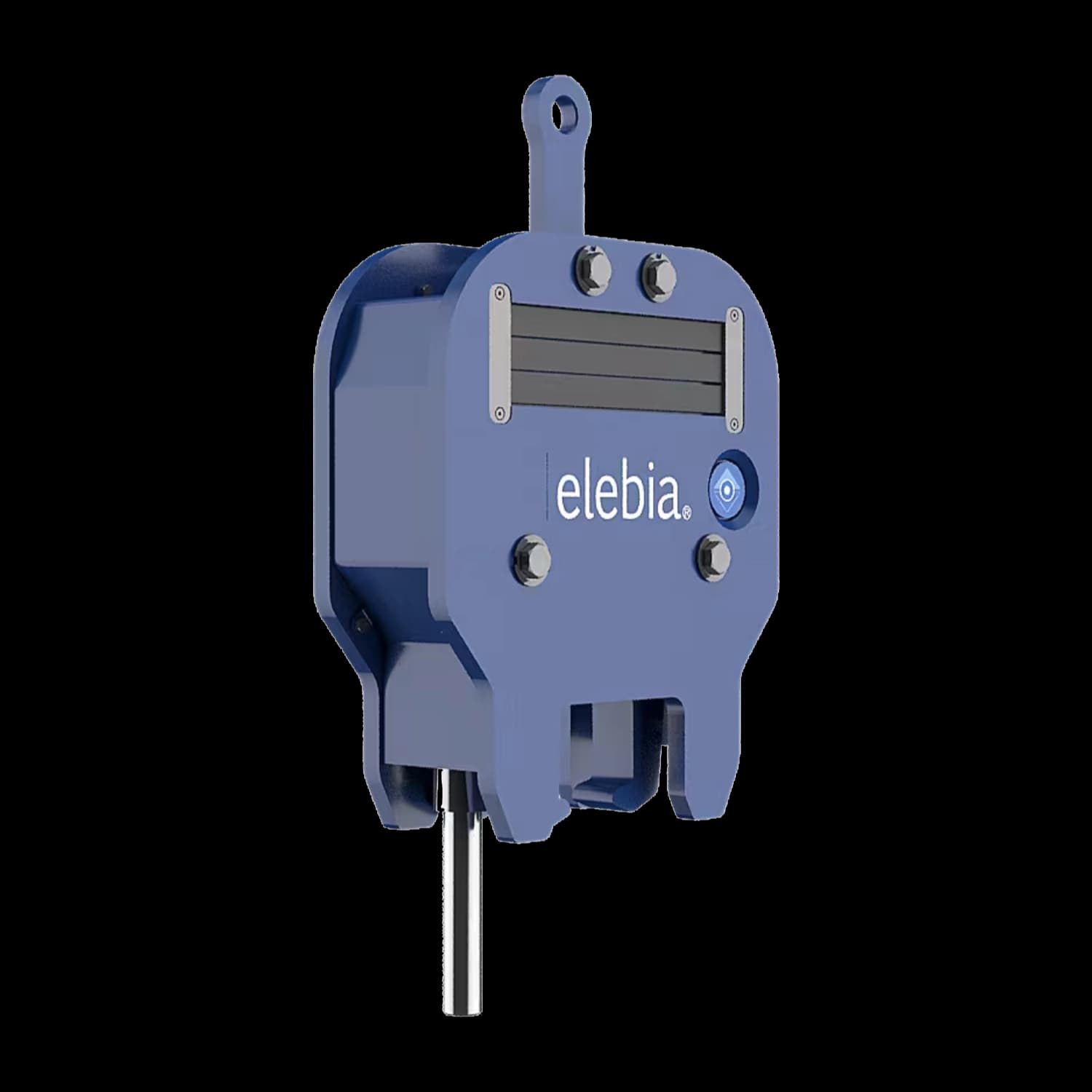

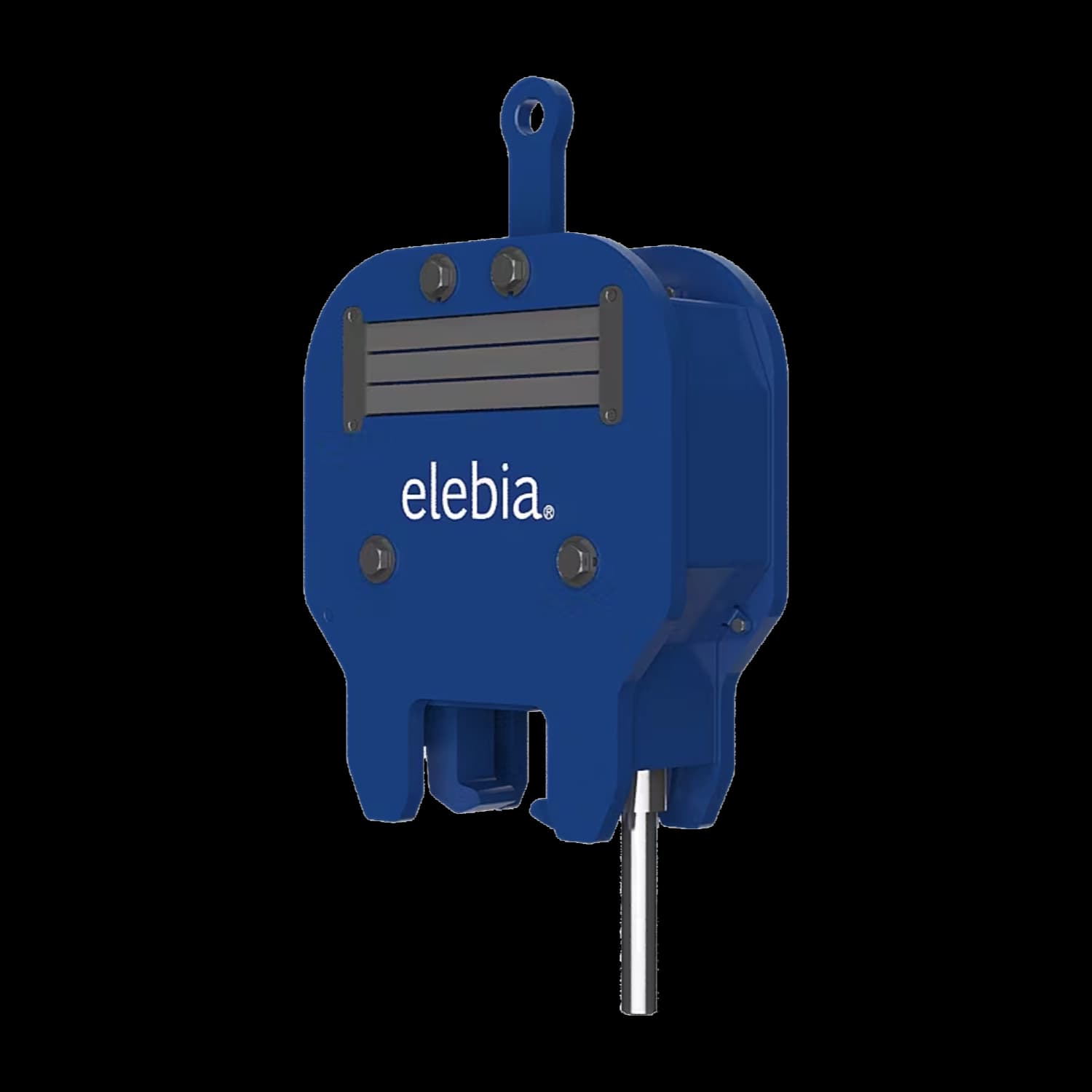

The eTrack rail lifting clamp approaches, orients and positions itself directly on the rail thanks to the finger. Once in position, the crane descends, the spring loaded finger retracts and allows the clamp to make contact with the rail. The eTrack clamp has been tested on the following rails: 45E2, 49E1, 50E3, 54E1, 54E3, 56E1, 60E1, 60E2 rail profiles and 75 conductor rails. The eTrack is likely to be compatible with the following references but must depend on real tests: 49E1A2, 60E1A1 and 60E1A5.

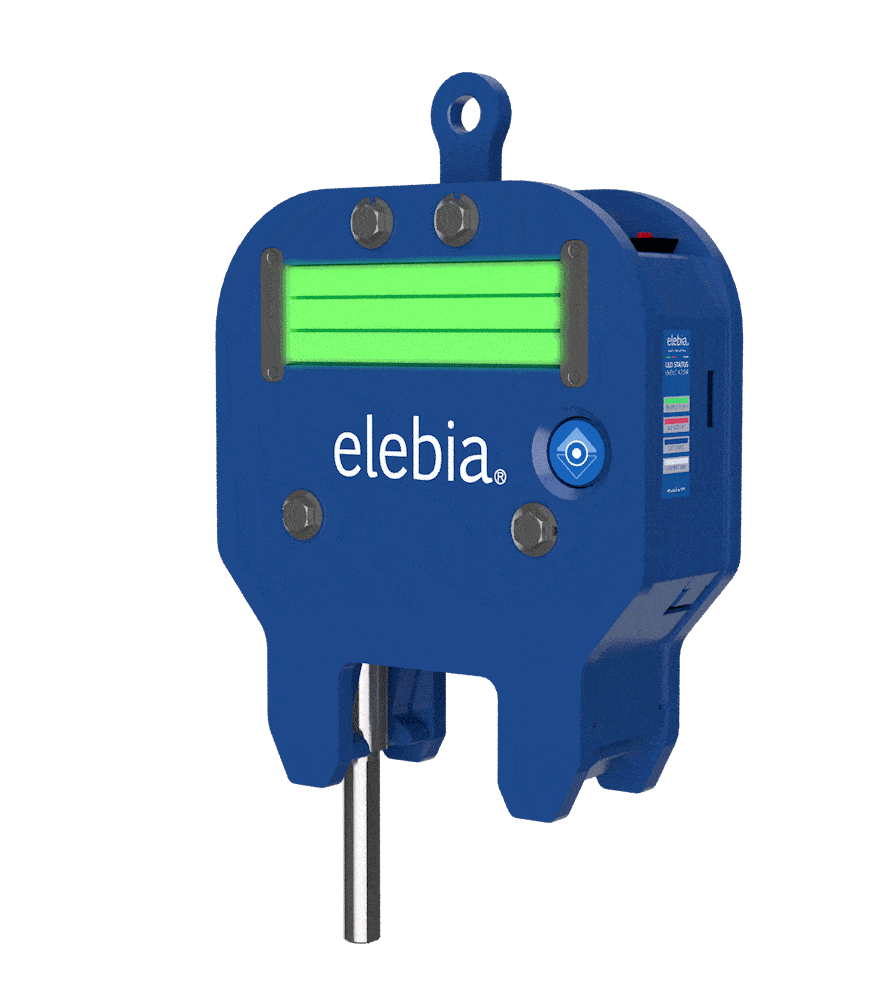

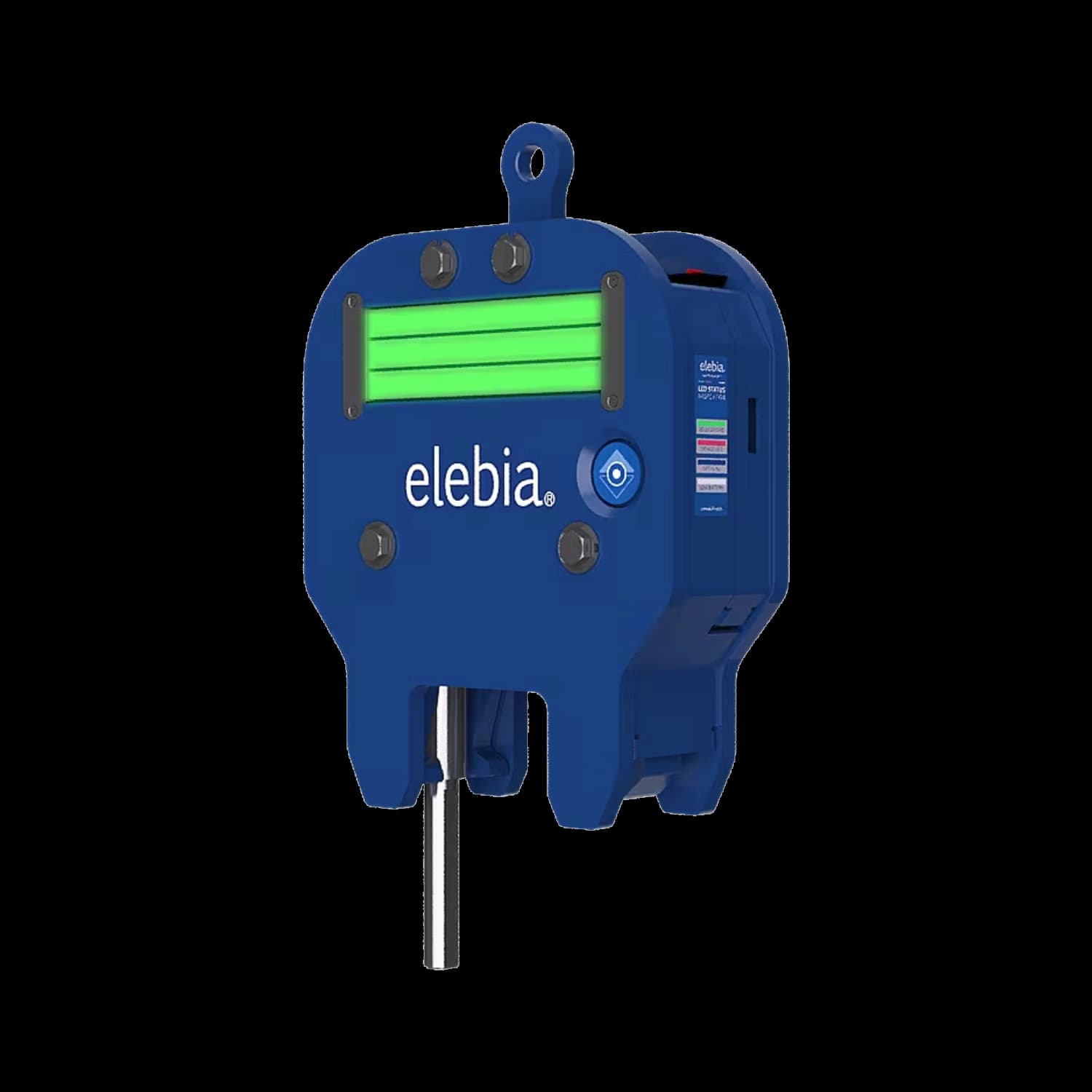

The eTrack's LED Status Indicator is another feature that helps minimize risks and enhance safety in the lifting, transporting and turning of rail profiles. The colour coded scheme shows the rail lifting clamps' status at all times, and is visible from the operator's position.

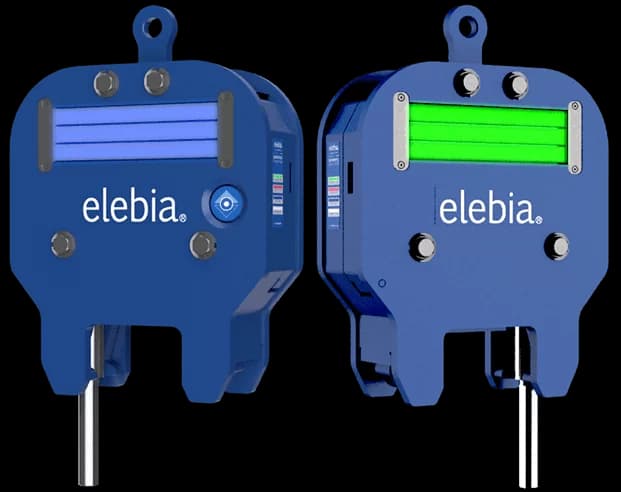

• Green: Clamp is Unlocked / Release Load
• Red: Intermediate: Do Not Lift!
• Blue: Clamp is Locked / Lift & Manoeuvre Load
• White: Low Battery

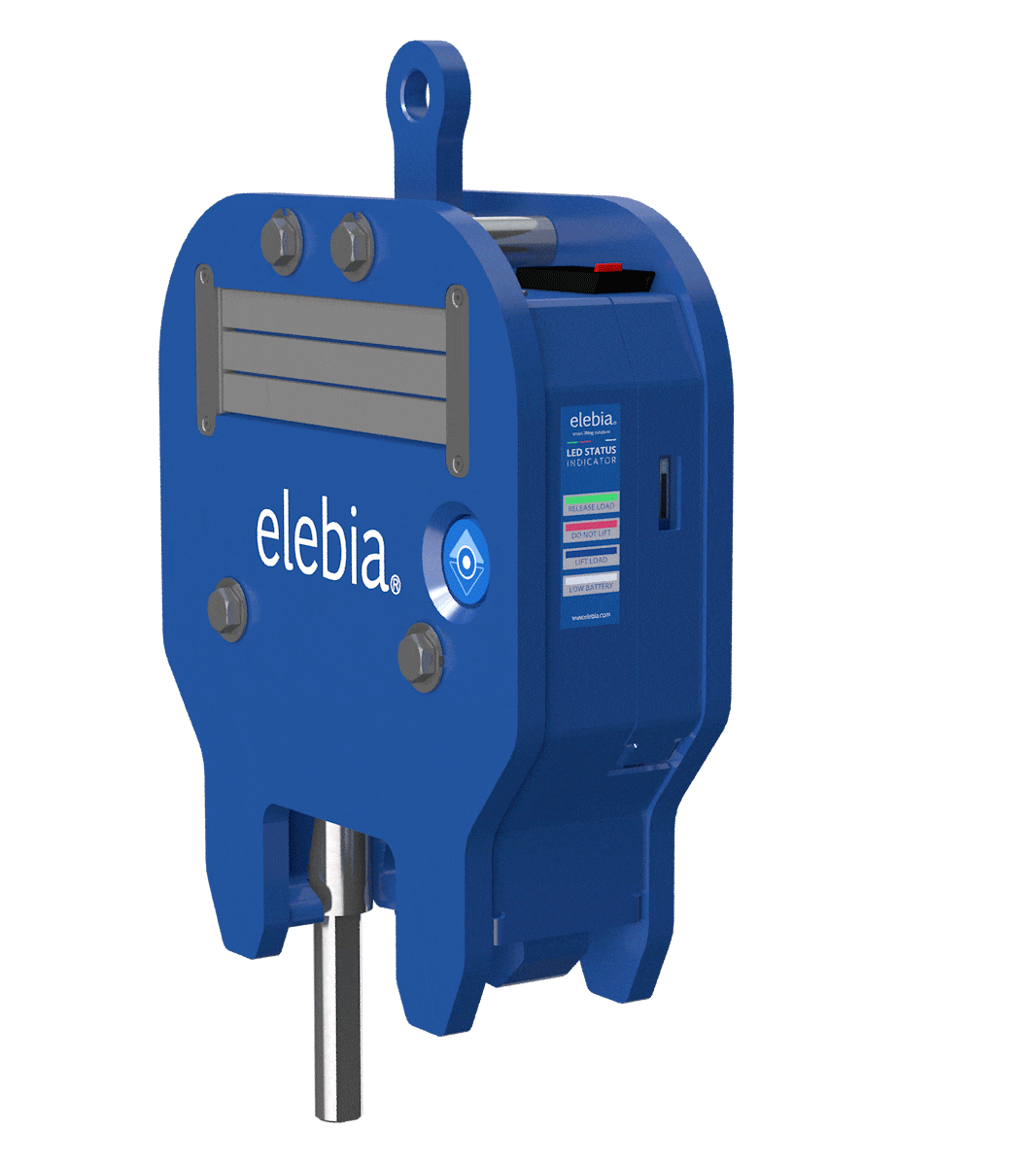

The 14 segment E-ink charge status display of the rechargeable li-ion battery for the eTrack rail lifting clamp guarantees its optimal autonomy and minimum consumption. The slot cover is also protected with a safety lock which protects the battery from falling in case of impact.

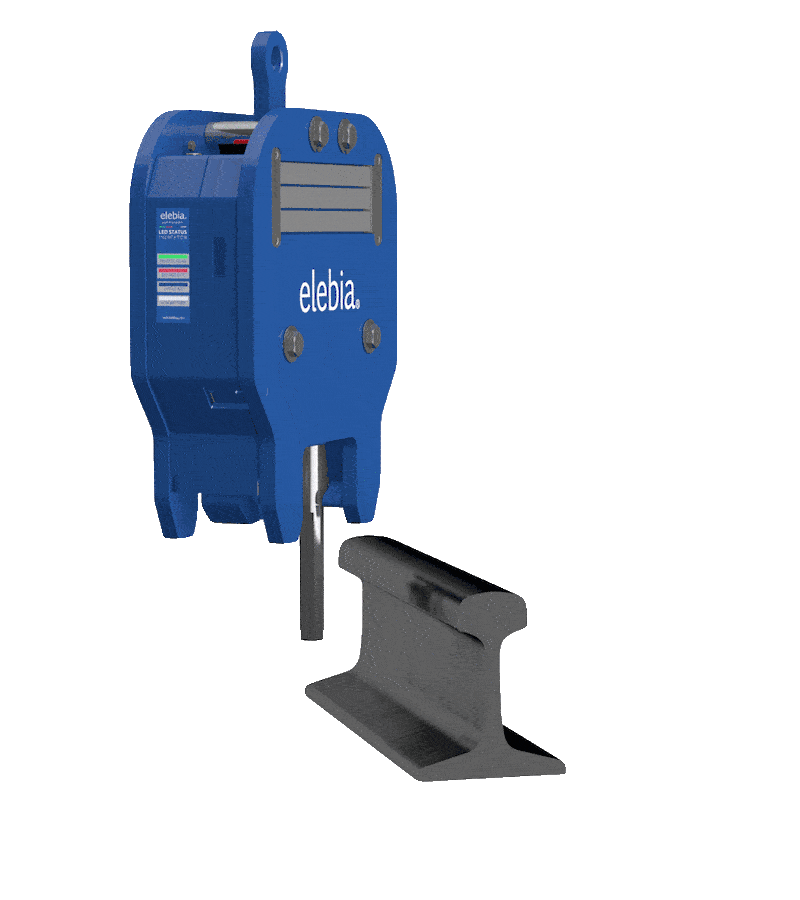

The “Smart Nap” mode reduces battery consumption by activating the color code scheme of the LED status indicator when the eTrack lifting clamp initiates its locking movement. Until then, the rail clamp is in suspension mode and its electronics and battery are not active. A simple 3 hour charge allows for more than 5.000 cycles or over 2 months in standby mode.

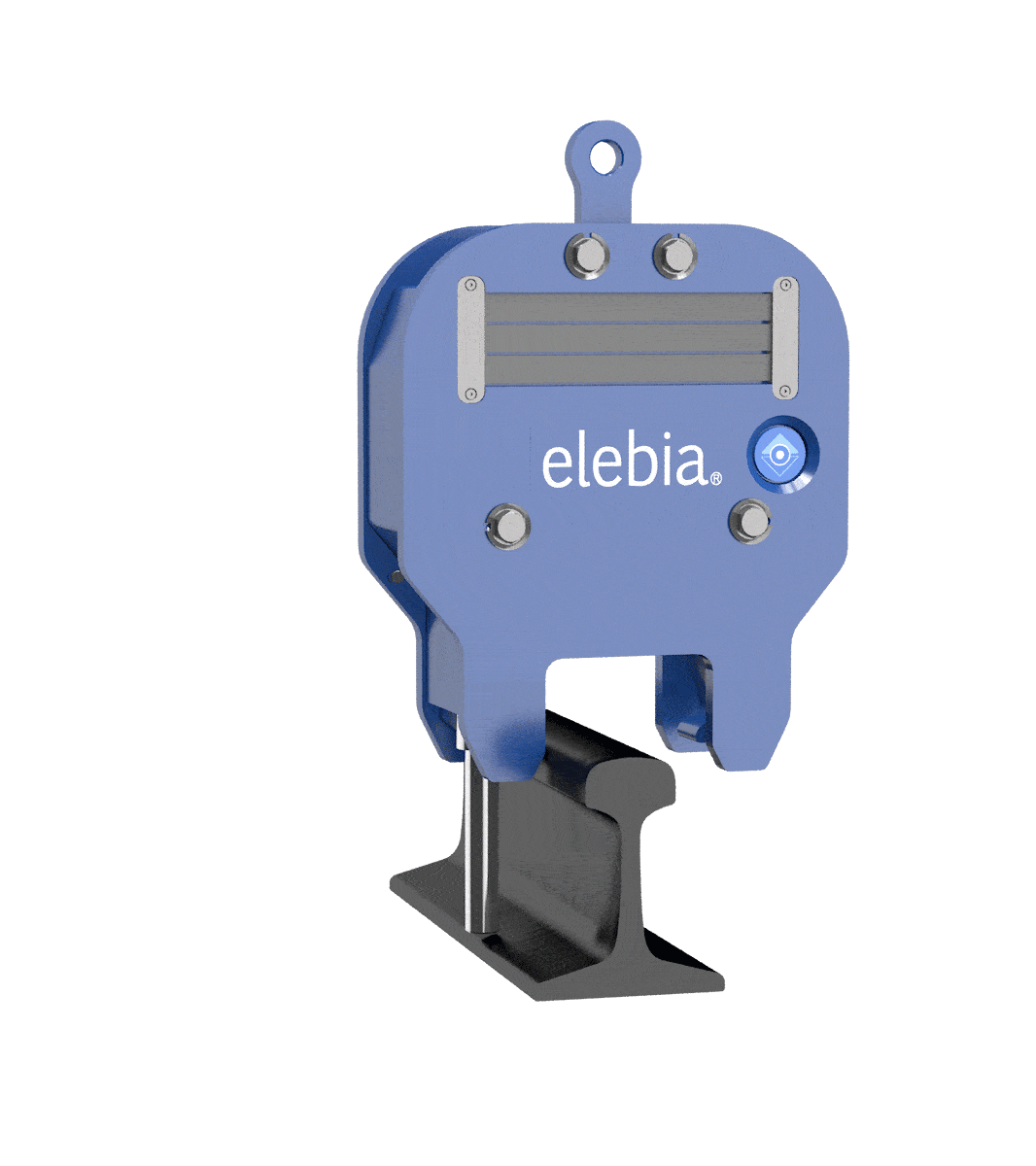

When the eTrack's sensor makes contact with the surface of the rail, the clamping mechanism automatically unlocks. When the ascending maneuver begins, tension is applied to the clamping mechanism which automatically locks onto the rail, allowing to raise the load. The eTrack provides a reliable and fail-safe grip on the rail, and has a narrow profile to ease the approach and positioning to an individual rail when rails are side by side.

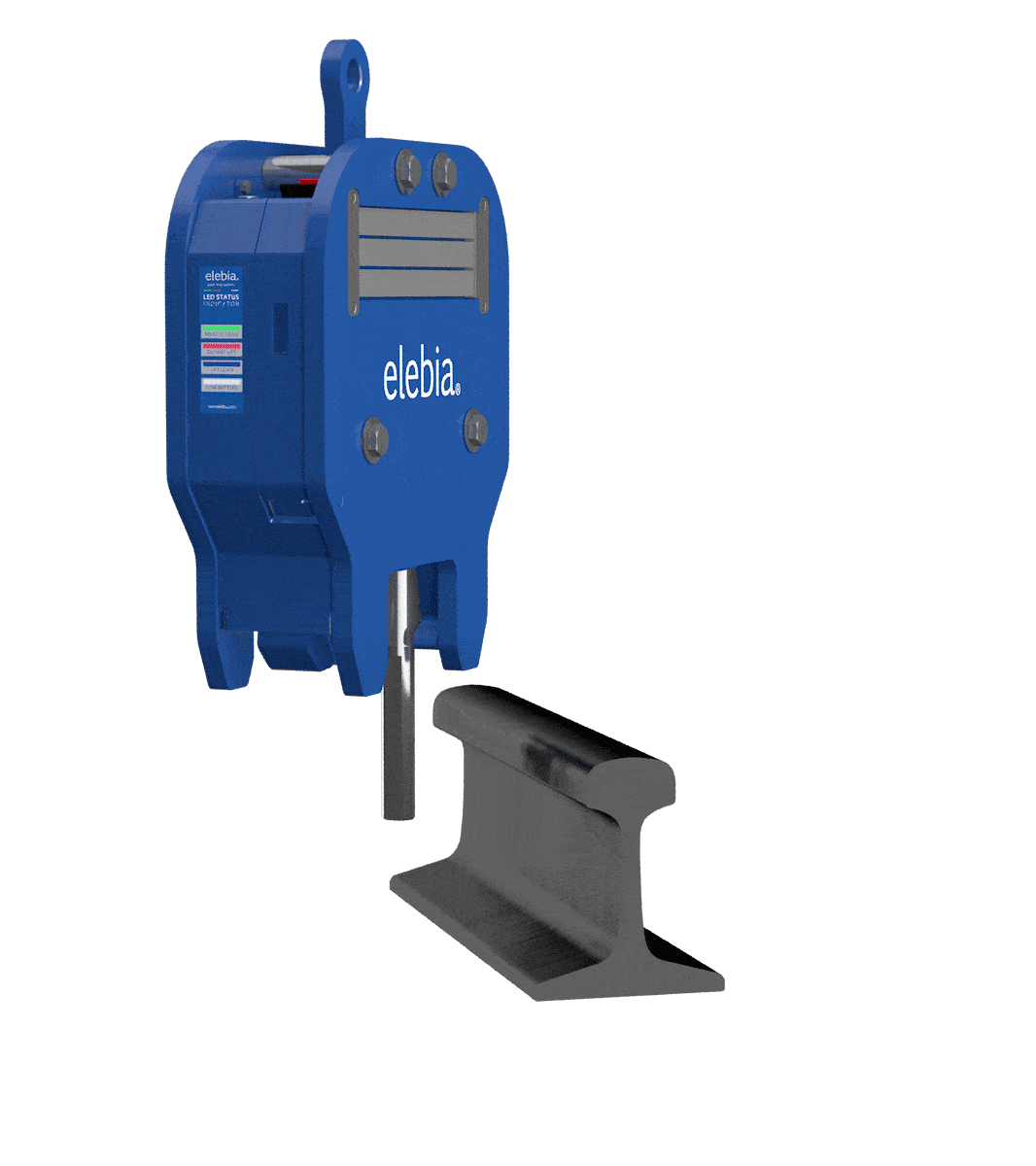

The eTrack has a retractable spring loaded finger that serves as a guide to orient and center the correct positioning of the rail clamp.

Thanks to its fail-safe design, and like the rest of our smart lifting solutions, once the rail lifting clamp has locked the rail, it is not possible to release or drop the load that is being lifted.

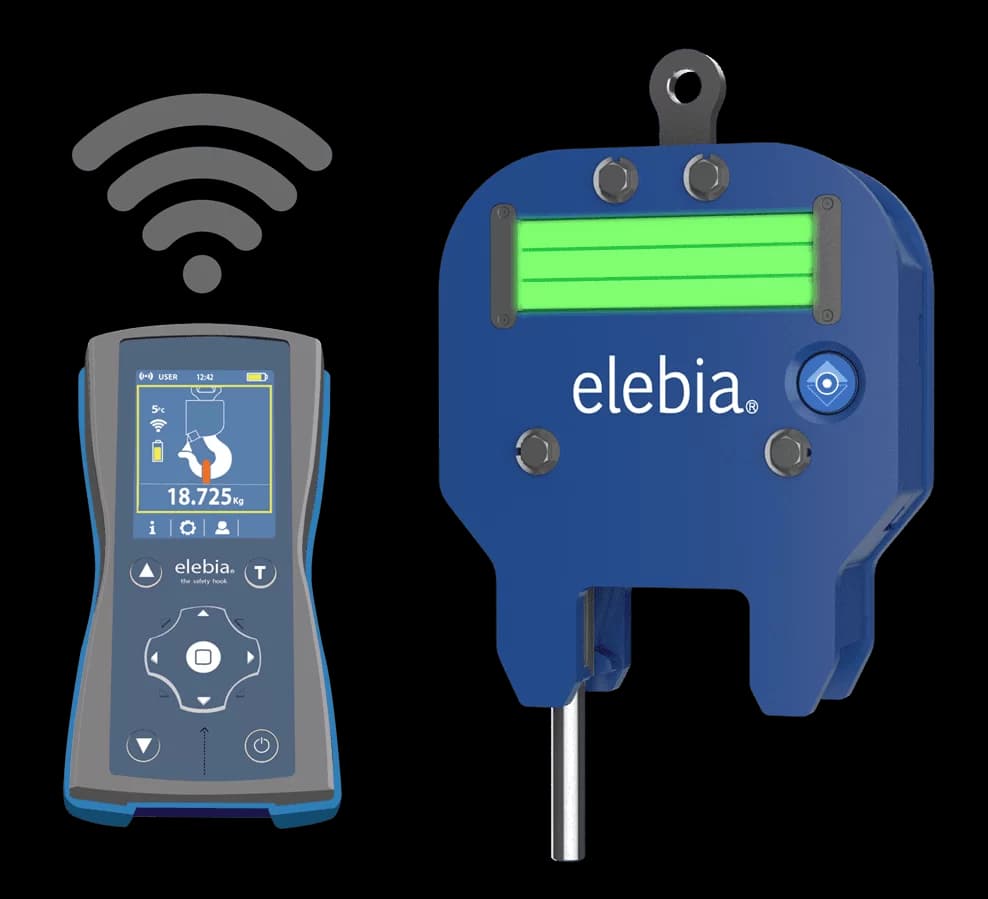

The eTrack rail lifting clamp can be paired to the eMAX remote control, the eMINI remote control or the eINST installable remote control. Send all the necessary orders and receive all the info from the rail lifting clamps straight to your preferred remote control.
