Product Description

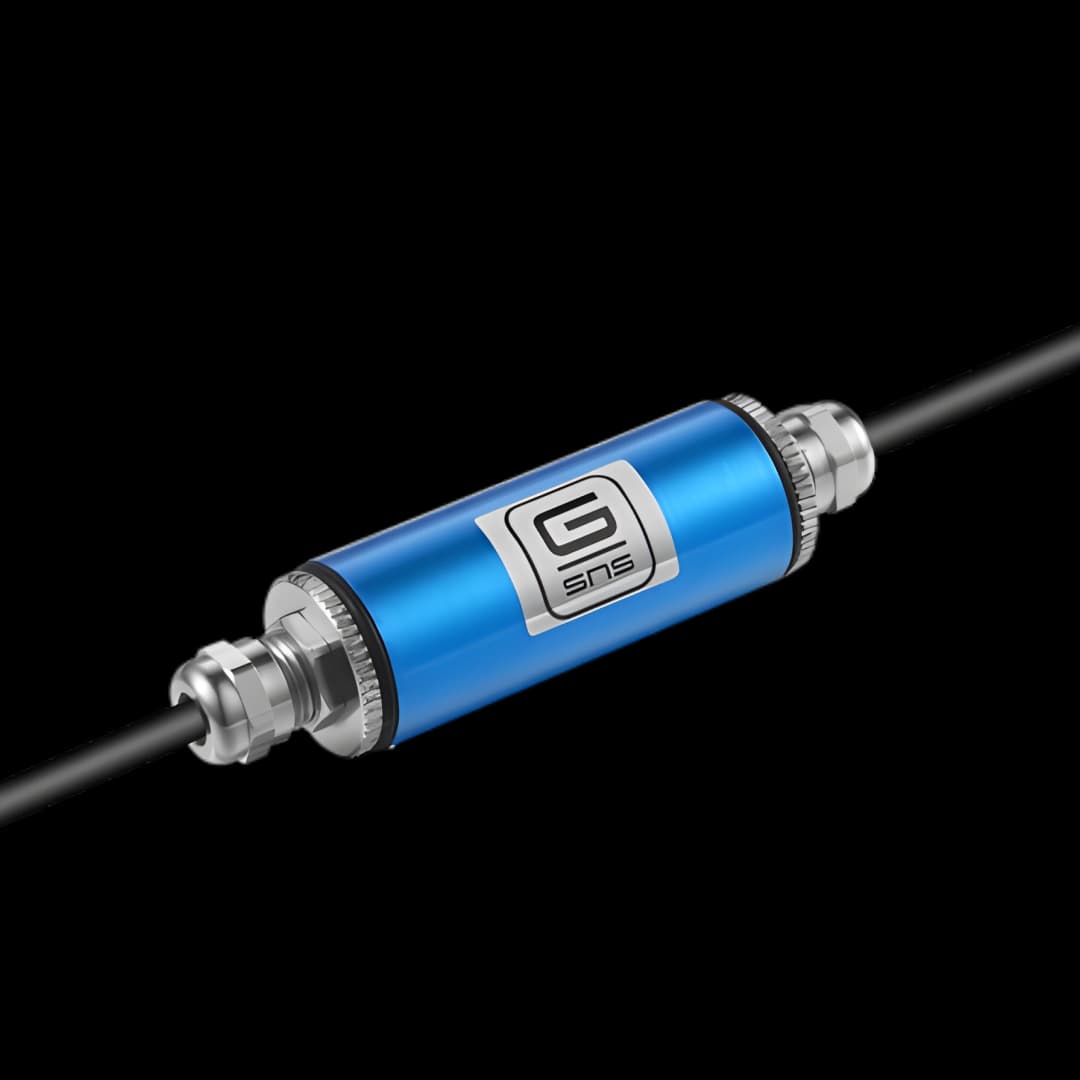

G-SNS
A40
In-Line Analog AmplifierIn-line analog amplifier with aluminum alloy housing — three-wire current/voltage output for mV-range load cells
G-SNS
A40
In-Line Analog AmplifierIn-line analog amplifier with aluminum alloy housing — three-wire current/voltage output for mV-range load cells
Description
Inline analog amplifier with aluminum alloy housing and three-wire current or voltage output, designed primarily for use with 0.3 ~ 3.0 mV/V rated output load cells.
- Inline Analog Amplifier With Aluminum Alloy Housing
- Three-Wire Current Or Voltage Output
- Transform mV-Signal To mA-Signal Or 0 ~ 5 V / 10 V Signal Output
- Mainly Used for 0.3 ~ 3.0mV/V Rated Output Load Cell
GENERAL
- Bandwidth (Hz)
≥ 1000 Hz
- Accuracy
0.1% F.S.
- Electronic Identification
Potentiometer regulation
- Zero Drift
±0.1 μV/°C
- Gain Drift
+5 ppm/°C
- IP Rating
IP65
- Weight
0.1 kg
INPUT
- Power Supply
15 ~ 24 VDC/AC
- Maximum Power
2 W
- Bridge Excitation
5 VDC
- Input Load
4 pcs 350 Ω sensors
- Channel Quantity
One input and one output
OUTPUT
- Current Output
0 ~ 20 mA / 4 ~ 20 mA (option)
- Voltage Output
0 ~ 5 V / 0 ~ 10 V
ENVIRONMENT
- Operating Temperature
-10 ~ 60 °C
- Storage Temperature
-30 ~ 80 °C
- Relative Humidity
≤ 85% RH
