Description

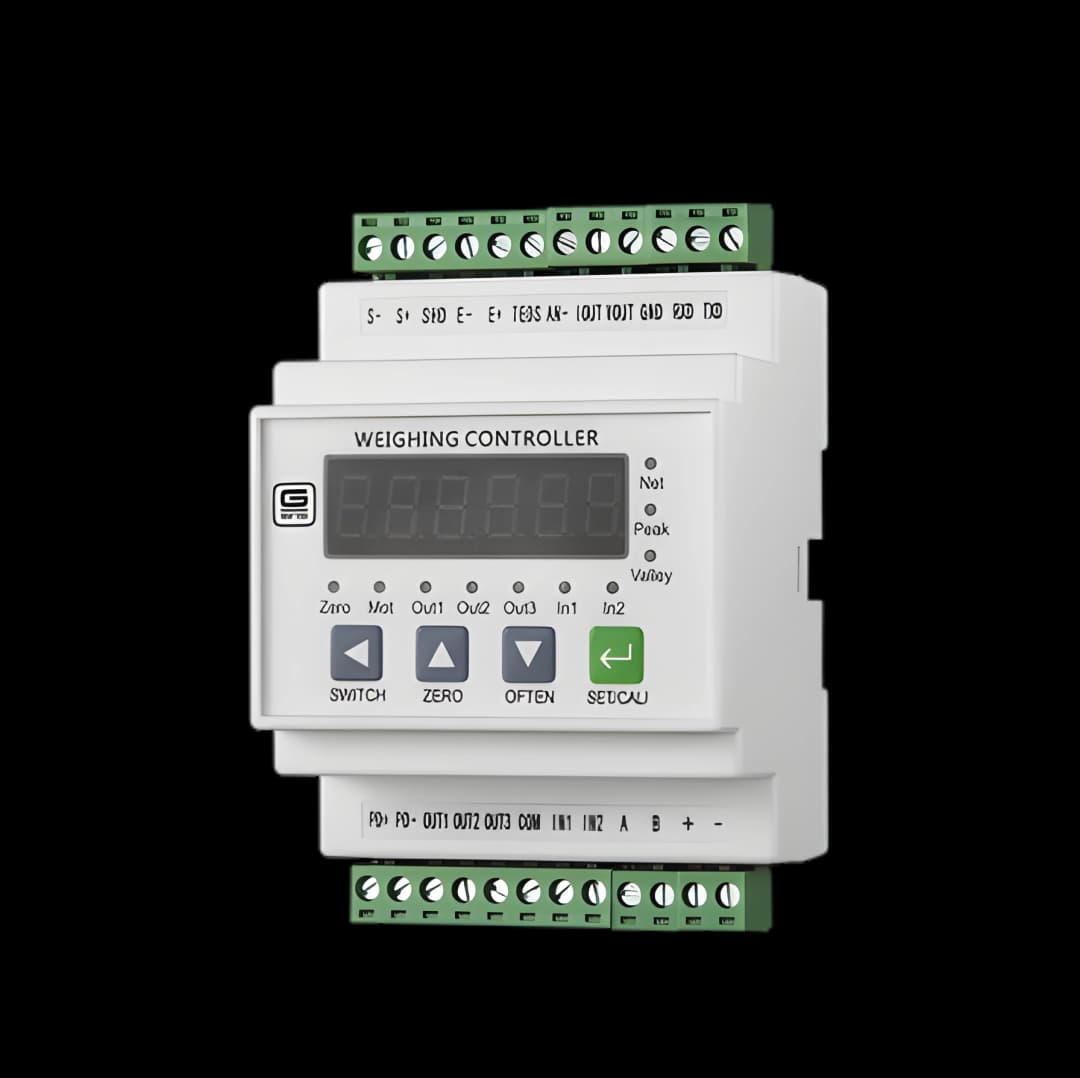

Numeric display designed for force measurement systems with multiple digital inputs and optional analog outputs, suitable for industrial weighing and test applications.
- Numeric Display
- 21 DI input and 3 DO transistor output
- RS232 or RS485 connection optional, analog output can be added
- Suitable for all kinds of force measuring
GENERAL
- Sampling Rate
640 / 1280 Hz
- Internal Resolution
24 bits
- Resolution (Noise Free)
20 bits
- Integrated Digital Filter
50 Hz / 60 Hz rejection (10 Hz)
- Current Consumption (No Load)
200 mA
- Digits
6
- Zero Drift
±0.1 μV/°C
- Gain Drift
+8 ppm/°C
- Accuracy
0.01% F.S.
- Front Panel IP Rating
IP50
- IP Rating
IP50
- Weight
0.3 kg
STRAIN GAUGE MV/V INPUT
- Bridge Excitation
5 VDC
- Standard Input Range
±2 mV/V (factory default)
- Optional Input Range
±0.4 ~ ±6 mV/V
- Input Load
4 pcs 350 Ω sensors
- Electronic Identification
Weight calibration, weight-free calibration or TEDS; auto-calibration (option)
OUTPUT
- Analog Output Resolution
12 bits
- Analog Adjust Mode
Digital adjust
- Analog Voltage
+5 VDC or ±10 VDC
- Minimum Load Impedance (Voltage)
15 kΩ
- Analog Current
0 ~ 20 mA or 4 ~ 20 mA
- Max Load Impedance (Current)
500 Ω
- Communication Interface
RS232 and RS485
- Communication Protocol
Modbus RTU, FREE
- Digital Input
2 DI
- Digital Output
3 DO
POWER ADAPTER
- Input
12 ~ 30 VDC
- Input Current
0.5 A rms @ 24 VDC
ENVIRONMENT
- Operating Temperature
-25 ~ 70 °C
- Storage Temperature
-30 ~ 80 °C
- Relative Humidity
≤ 85% RH
