Description

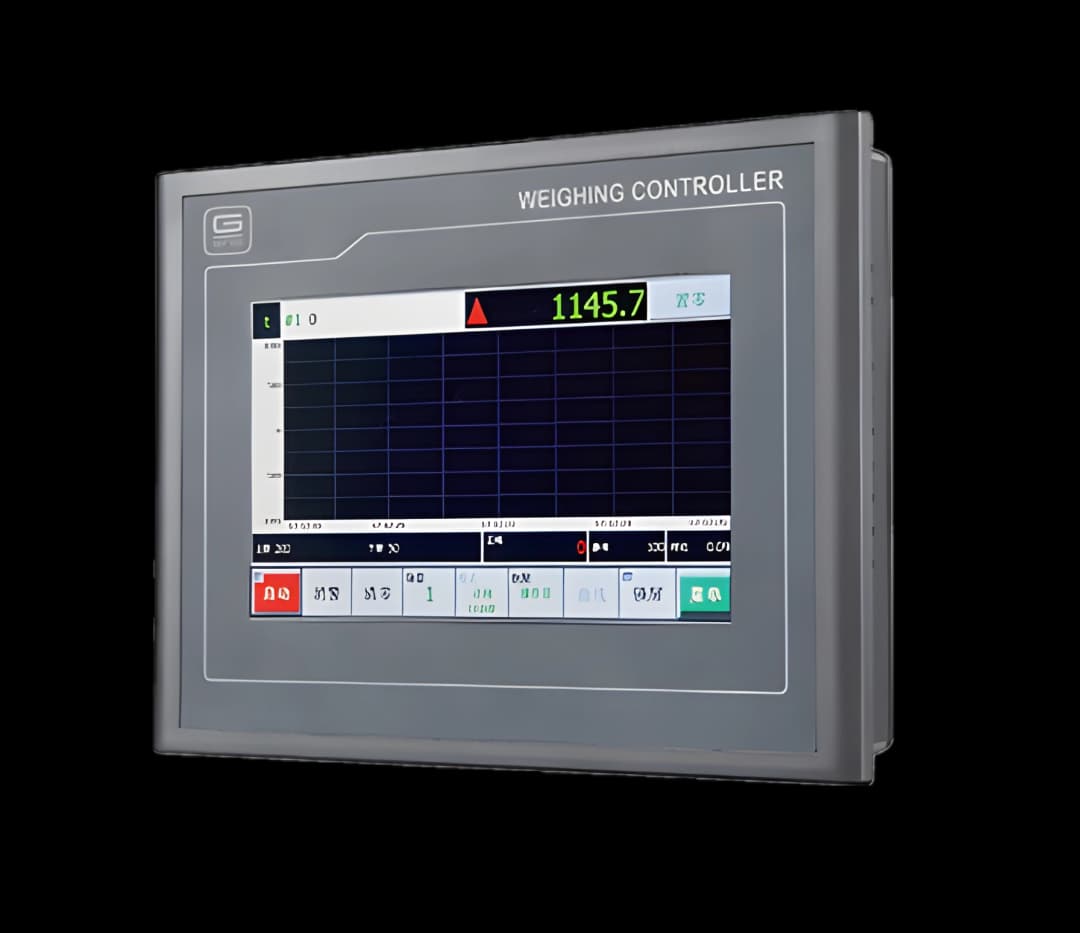

Graphic display with 7" touch screen, fast response and extensive I/O for automated control and measurement systems.
- Graphic Display
- 7” Touch Screen
- Max. storage of 30000 values
- Remote control
- Quick response 3200 Hz
- 7 switch signal input port, 18 switch signal output port
- RS232 or RS485 connection optional
- Widely used in the application field of automatic control
GENERAL
- Sampling Frequency
3200 Hz
- Internal Resolution
1 / 130,000
- Force Display Range
-99,999 ~ +999,999
- Force Capacity
1, 2, 5, 10, 20, 50
- Scale Division
1 / 100,000
- Display Resolution
0, 0.0, 0.00, 0.000
- Zero Drift (RTI)
±0.1 μV/°C
- Zero Drift (ppm)
±5 ppm/°C
- Gain Drift
0.005% F.S.
- Accuracy
0.01% F.S.
- Non-Linearity
See datasheet
- Front Panel IP Rating
IP65
- Weight
0.7 kg
STRAIN GAUGE MV/V INPUT
- Excitation Voltage / Max. Current
5 VDC / 250 mA
- Signal Input Range
0 ~ 12.5 mV
- Output Sensitivity of Loadcell
1.0 ~ 2.5 mV/V
- Input Load
16 pcs 350 Ω sensors
- Electronic Identification
Weight calibration, weight-free calibration or TEDS; auto-calibration (option)
VOLTAGE INPUT
- Standard Input Range
DC 24 V ± 20%
- Maximum Power
10 W
OUTPUT
- Communication Interface
RS232 or RS485
- Communication Protocol
Modbus RTU, FREE
- Digital Input
7 DI
- Digital Output
18 DO
- Analog Output
0 ~ 10 V (4 independent channels and one combined)
ENVIRONMENT
- Operating Temperature
-25 ~ 45 °C
- Storage Temperature
-30 ~ 60 °C
- Relative Humidity
≤ 85% RH
