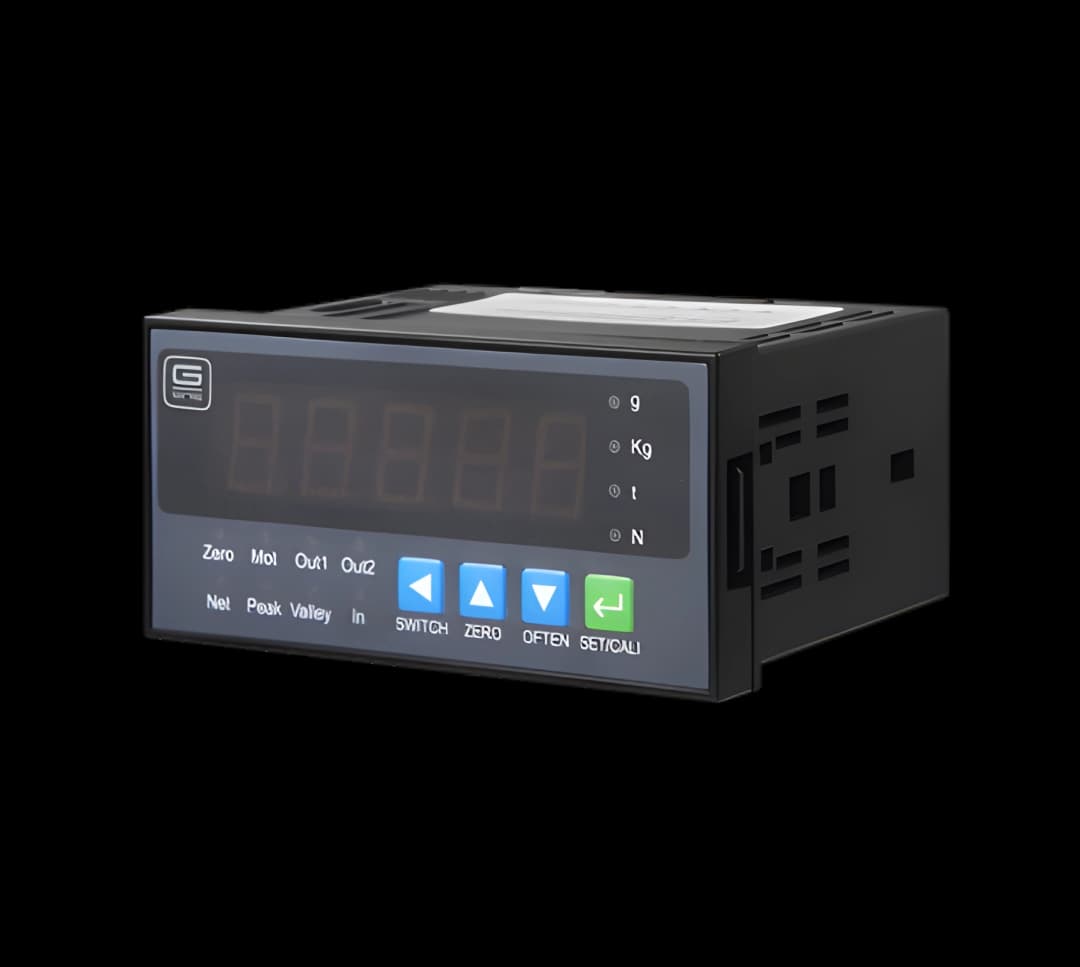

D30
Numeric DisplayNumeric display — 5-digit red LED, multilingual I/O and optional analog outputs
D30
Numeric DisplayNumeric display — 5-digit red LED, multilingual I/O and optional analog outputs
Description
Numeric display with 5 digits and red LED for clear readout, designed for force measuring and industrial weighing applications with flexible I/O and calibration features.
- Numeric Display
- 5 Digits, LED Red
- Transistor or relay are optional
- 1 channel transistor input, with peeling, zeroing and remote operation functions
- Peak and valley values can be maintained; upper and lower limits are alarmed
- Standard RS-232/RS485 interface and optional analog output (0 ~ 10 V / 4 ~ 20 mA)
- With TEDS calibration function
- Suitable for all kinds of force measuring
GENERAL
- Sampling Rate
640 / 1280 Hz
- Internal Resolution
24 bits
- Resolution (Noise Free)
20 bits
- Integrated Digital Filter
50 Hz / 60 Hz rejection (10 Hz)
- Current Consumption (No Load)
200 mA
- Digits
5 (red LED)
- Zero Drift
±0.1 μV/°C
- Gain Drift
±8 ppm/°C
- Accuracy
0.01% F.S.
- Front Panel IP Rating
IP50
- Weight
0.2 kg
STRAIN GAUGE MV/V INPUT
- Excitation Voltage / Max. Current
5 VDC
- Standard Input Range
±2 mV/V (factory default)
- Optional Input Range
±0.4 ~ ±6 mV/V
- Input Load
4 pcs 350 Ω sensors
- Electronic Identification
Weight calibration, weight-free calibration or TEDS; auto-calibration (option)
OUTPUT
- Analog Output Resolution
12 bits
- Analog Adjust Mode
Digital adjust
- Analog Voltage
±5 VDC or ±10 VDC (option)
- Minimum Load Impedance (Voltage)
15 kΩ
- Analog Current
0 ~ 20 mA or 4 ~ 20 mA
- Maximum Load Impedance (Current)
500 Ω
- Communication Interface
RS232 or RS485
- Communication Protocol
Modbus RTU, FREE
- Digital Input
1 DI
- Digital Output
3 DO
POWER ADAPTER
- Input
12 ~ 30 VDC
- Input Current
0.5 A rms @ 24 VDC
ENVIRONMENT
- Operating Temperature
-20 ~ 70 °C
- Storage Temperature
-30 ~ 80 °C
- Relative Humidity
≤ 85% RH
