D94
Numeric DisplayNumeric display — data-logging, high-resolution A/D, adaptive baud and flexible I/O for weighing
D94
Numeric DisplayNumeric display — data-logging, high-resolution A/D, adaptive baud and flexible I/O for weighing
Description

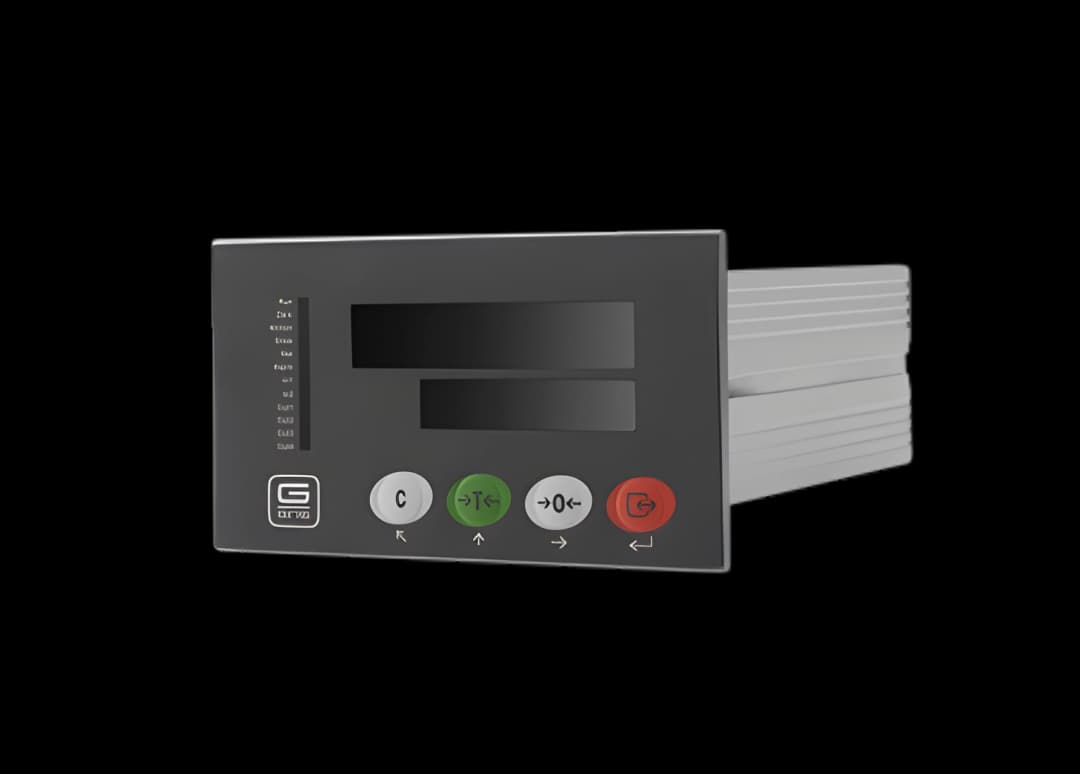

Numeric display designed for precision force measurement and data-logging applications, with 24-bit A/D, adaptive communication and robust I/O.
- Numeric Display
- 2 DI digital input and 4 DO digital output
- Min. or max. value display
- Support max. 1,000,000 divisions
- 24 bits A/D channel
- 600 ~ 57600 baud-rate adaptive communication
- Easy reset function
- RS232 or RS485 connection optional
- Suitable for all kinds of force measuring places
GENERAL
- Data Logging
2k points
- Profile Storage
14 profiles
- Sampling Rate
5 ~ 4800 SPS
- Internal Resolution
24 bits
- Resolution (Noise Free)
16 bits
- Integrated Digital Filter
50 Hz / 60 Hz rejection (120 dB)
- Digits
6
- Zero Drift
±0.1 μV/°C
- Gain Drift
±5 ppm/°C
- Accuracy
0.1% F.S.
- Front Panel IP Rating
IP50
- Weight
0.8 kg
STRAIN GAUGE MV/V INPUT
- Bridge Excitation
5 VDC
- Standard Input Range
±2 mV/V (factory default)
- Optional Input Range
Up to ±40 mV/V
- Weighing Signal Input
0 ~ 39 mV
- Input Load
4 pcs 350 Ω sensors
- Electronic Identification
Weight calibration, weight-free calibration or TEDS
- Reading Error
±0.2% of 2 mV/V
VOLTAGE INPUT
- Standard Input Range
24 VDC ± 20%
- Maximum Power
3 W
- Reading Error
None
OUTPUT
- Analog Voltage
0 ~ 5 VDC or 0 ~ 10 VDC
- Minimum Load Impedance (Voltage)
10 kΩ
- Analog Current
0-20, 4-20, 0-25, 5-25 mA (options)
- Maximum Load Impedance (Current)
40 Ω
- Individual Transistor Outputs
4 × 48 VDC / 300 mA max, 0.1 ms response time
- Optocoupler Inputs
2 × 24 VDC / 300 mA max, 0.1 ms response time
- External Supply Output
24 VDC / 300 mA max, 0.1 ms response time
- Communication Interface
RS232 or RS485
- Communication Protocol
Modbus RTU, FREE
- Digital Output
4 DO
POWER ADAPTER
- Input
12 ~ 36 VDC
- Frequency
47 ~ 63 Hz
- Input Current
0.1 A @ 24 VDC
ENVIRONMENT
- Operating Temperature
-20 ~ 70 °C
- Storage Temperature
-30 ~ 80 °C
- Relative Humidity
≤ 85% RH
CONFORMITY
- RoHS
2011/65/EC
- CE
EN 61326-1:2006
