FC31
Shear Beam SensorShear beam — long-term stability, high side-load tolerance, stainless or alloy steel, IP67
FC31
Shear Beam SensorShear beam — long-term stability, high side-load tolerance, stainless or alloy steel, IP67
Description

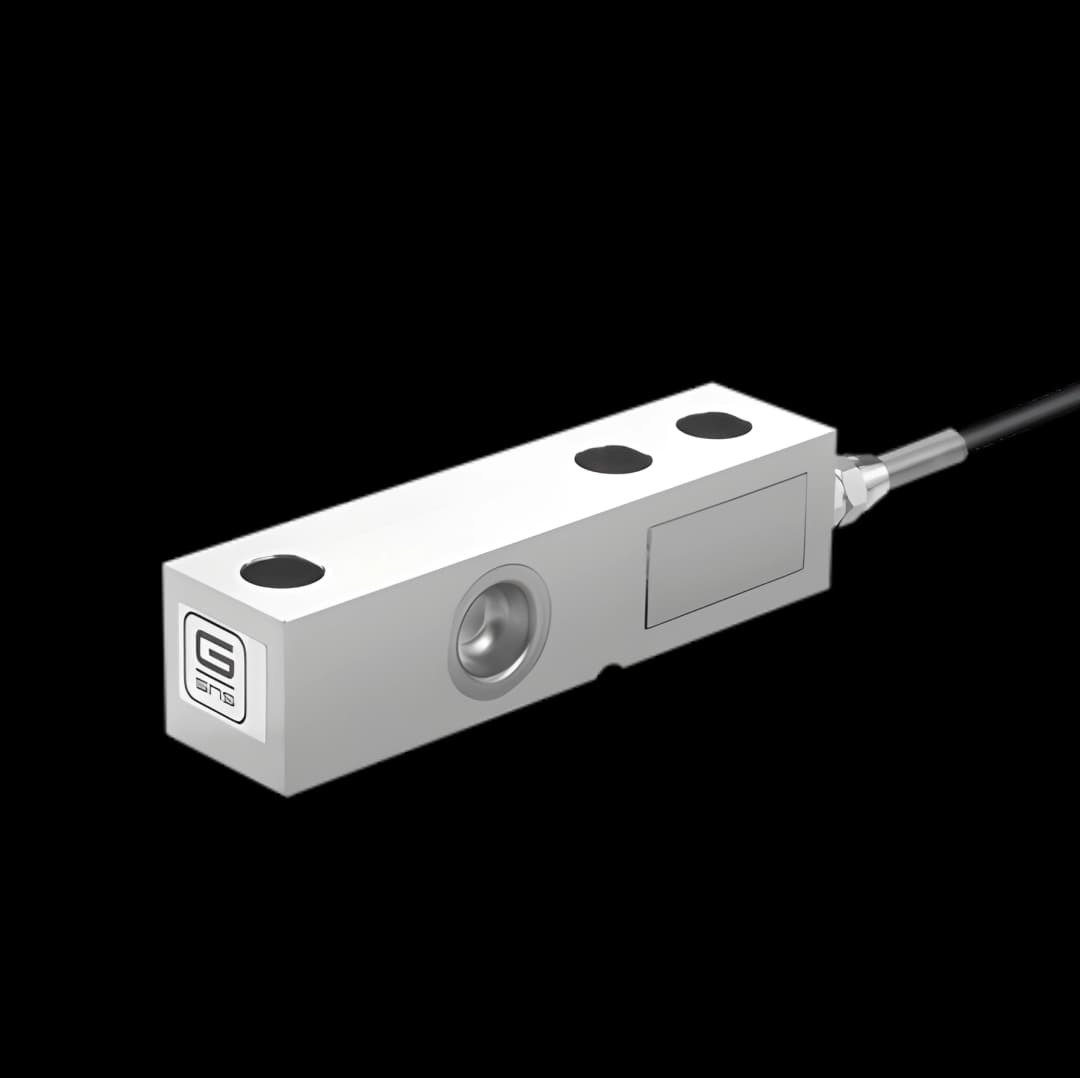

Shear beam construction load cell engineered for long-term stability and high side-load tolerance. Available in stainless steel or alloy steel and designed for floor & platform scales up to 10 t. Compact and robust for industrial weighing environments.
- Shear beam construction
- Long-term stability and high side-load tolerance
- Max capacity: up to 10 t
- Mainly used for floor & platform scales
Performance
- Non-Linearity
±0.03% (Stainless Steel) / ±0.05% (Alloy Steel) of RO
- Hysteresis
±0.03% (Stainless Steel) / ±0.05% (Alloy Steel) of RO
- Repeatability
±0.03% (Stainless Steel) / ±0.05% (Alloy Steel) of RO
- Creep (30 min)
±0.03% (Stainless Steel) / ±0.05% (Alloy Steel) of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±1% mV/V (3.0 ±1% mV/V option)
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
385 ±10 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
See table above
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel or Alloy Steel
- Cable Size
Ø5 × 6000 mm
- IP Rating
IP67
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.025% of RO / 10 °C
- Temperature Effect on Zero
±0.025% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
