Product Description
Description

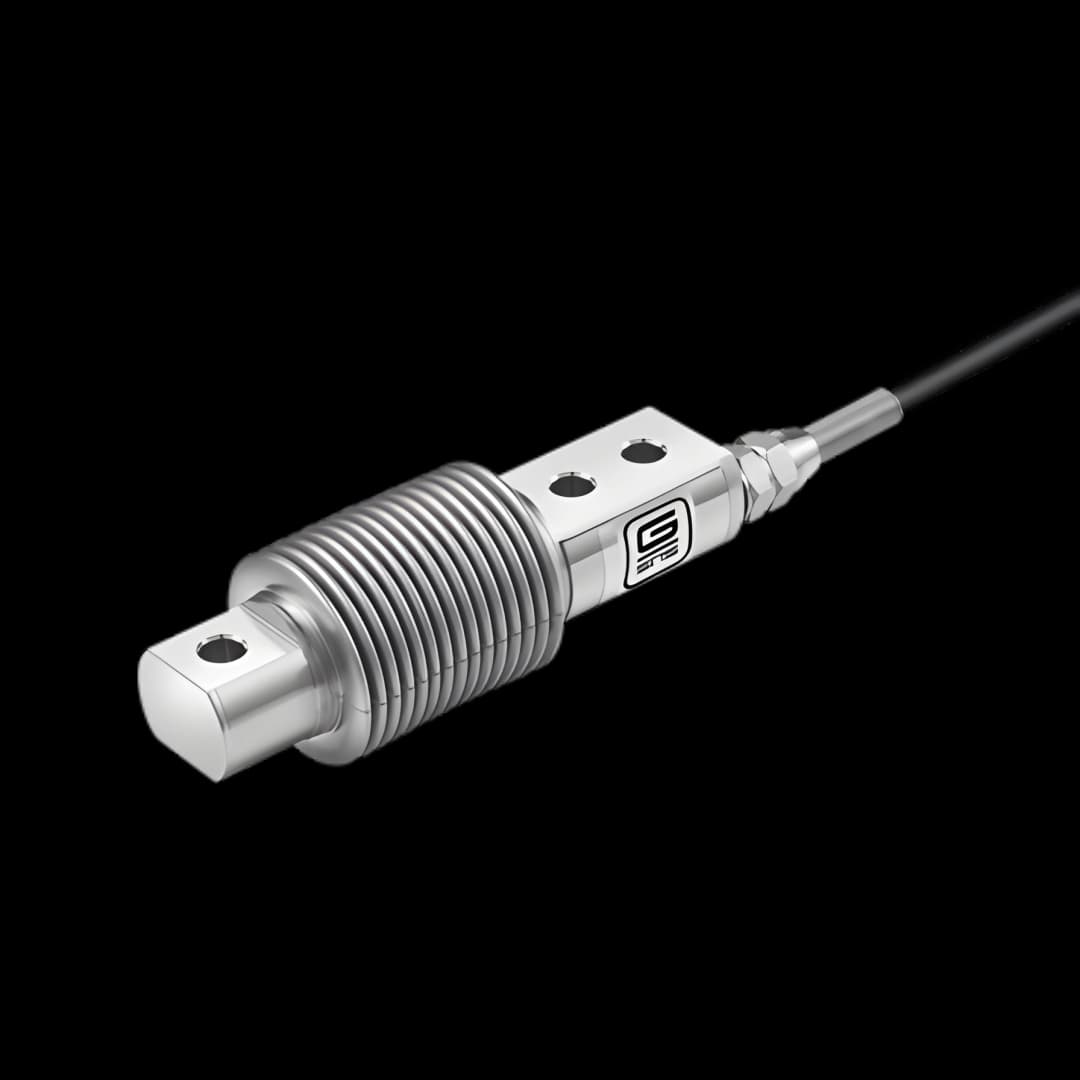

Bell-type bending beam load cell with welded-on metal bellows. Compact, high precision sensor designed for small hopper scales and other low-capacity weighing applications up to 0.5 t. Offers excellent repeatability, low creep and protection for harsh environments.
- Bell type bending beam
- Welded-on metal bellows
- Max. capacity: up to 0.5 t
- Mainly used for small hopper scales
Performance
- Non-Linearity
±0.02% of RO
- Hysteresis
±0.02% of RO
- Repeatability
±0.02% of RO
- Creep (30 min)
±0.03% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±1% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
385 ±10 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.6 kg
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø5 × 3000 mm
- IP Rating
IP68
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.03% of RO / 10 °C
- Temperature Effect on Zero
±0.03% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
