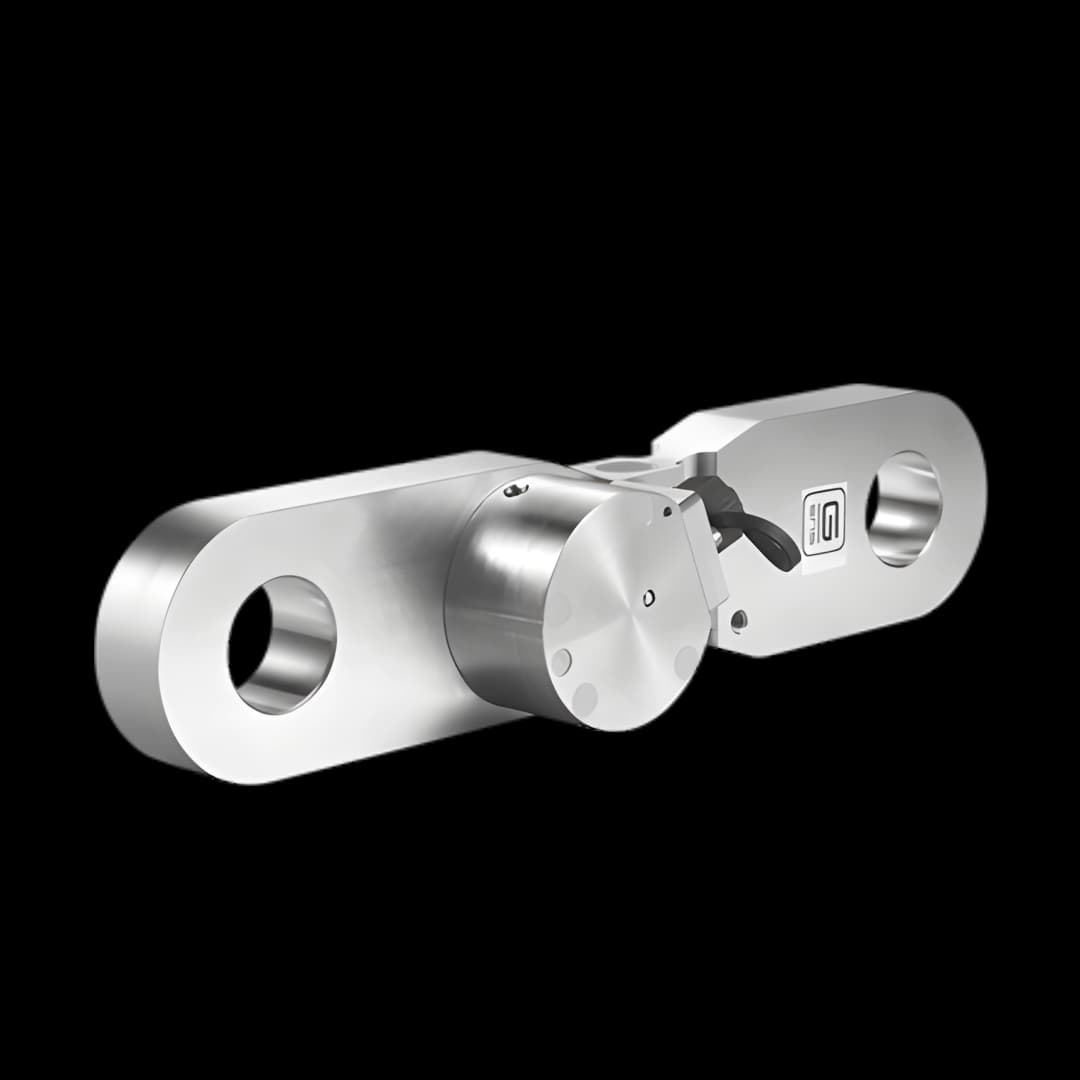

Custom Tension LinkCustom tension link — for static and dynamic in-line tension measurement, stainless steel, IP67
FG02
Custom Tension LinkCustom tension link — for static and dynamic in-line tension measurement, stainless steel, IP67
Description
Custom tension link designed for static and dynamic in-line tension measurement. High accuracy and easy to install; size and shape can be customised to suit existing hardware. Acts as an affordable replacement for original tension links to add overload protection and is commonly used in crane and hook scales.
- For static and dynamic in-line tension measurement
- High accuracy; easy to install
- Custom size and shape available
- Affordable replacement to provide overload protection
- Used for various crane and hook scales
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.2% of RO
- Repeatability
±0.1% of RO
- Creep (30 min)
±0.05% of RO
- Zero Balance
±1% of RO
Electrical
- Rated Output
4-20 mA (three-wire); 0-10 V (option)
- Recommended Excitation
16-24 VDC
- Maximum Excitation
24 VDC
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code / Pinout
PIN1: UB+ (Power+); PIN2: NC; PIN3: 0V / S- (Power/Signal-); PIN4: S+ (Signal+)
Mechanical
- Weight
According to design
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
Stainless Steel
- Connector
M12 × 1-4P
- IP Rating
IP67
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.2% of RO / 10 °C
- Temperature Effect on Zero
±0.2% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
