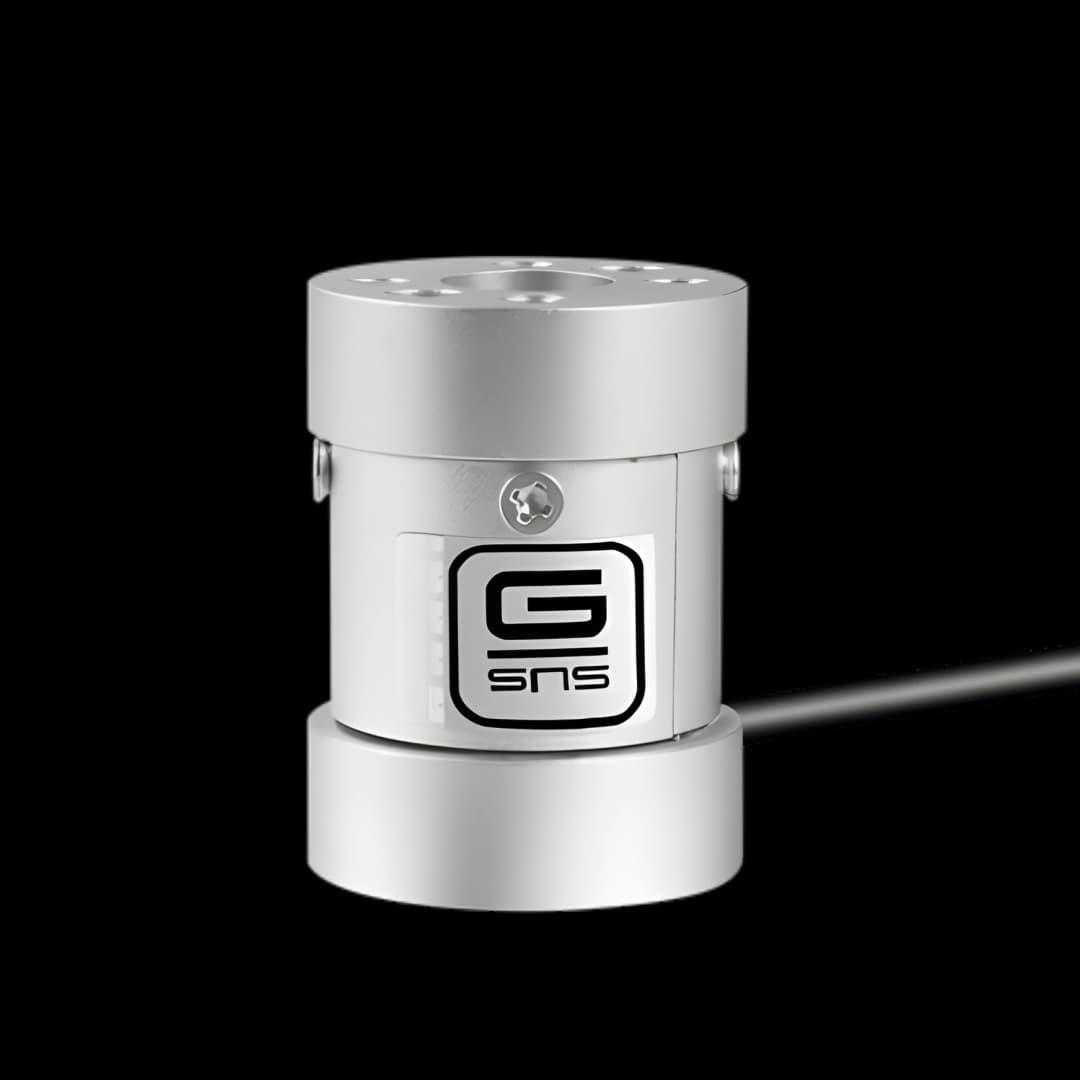

FH01
Static Torque SensorStatic torque sensor — compact, anodized aluminium, for static non-continuous torque auditing up to 90°
FH01
Static Torque SensorStatic torque sensor — compact, anodized aluminium, for static non-continuous torque auditing up to 90°
Description
Static torque sensor designed for high-volume OEM integration and static, non-continuous rotational torque measurement (max 90°). Surface anodized for durability, easy to install and suitable for torque auditing, testing and production environments.
- Torque Type
- Easily integrates into OEM applications
- Intended for high volume applications
- Surface anodized
- Designed for static, non-continuous rotational torque force measurement / auditing (max 90°)
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.25% of RO
- Repeatability
±0.1% of RO
- Creep (30 min)
±0.5% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±10% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
410 ±10 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.2 kg
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
Aluminium Alloy (surface anodized)
- Cable Size
Ø3 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.2% of RO / 10 °C
- Temperature Effect on Zero
±0.2% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
