Product Description

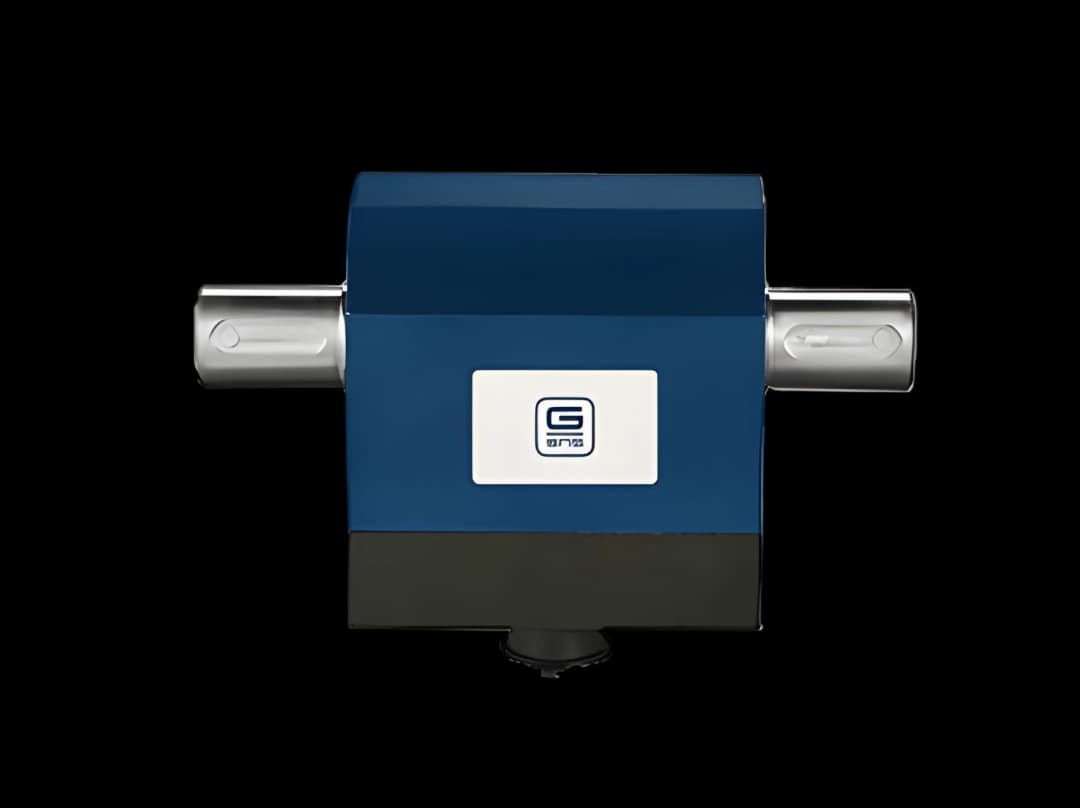

G-SNS
FH59
Dynamic Torque SensorDynamic torque sensor — compact, angle speed feedback, up to 3000 RPM, stainless steel, IP65
G-SNS
FH59
Dynamic Torque SensorDynamic torque sensor — compact, angle speed feedback, up to 3000 RPM, stainless steel, IP65
Description
Dynamic torque sensor providing angle speed feedback for rotating applications up to 3000 RPM. Compact and robust, designed for dynamic industrial automation tasks requiring continuous or periodic torque and speed monitoring.
- Torque Type
- Angle speed feedback
- Compact size
- Can operate up to 3000 RPM
- Used for dynamic industrial automation
Performance
- Non-Linearity
±0.1% of RO
- Hysteresis
±0.1% of RO
- Repeatability
±0.1% of RO
- Creep (30 min)
±1% of RO
- Zero Balance
±1% of RO
Electrical
- Rated Output
0-10 V
- Max. Rotary Speed
3000 RPM
- Recommended Excitation
24 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.5 kg
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
Stainless Steel
- Cable Size
Ø6 × 8100 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.1% of RO / 10 °C
- Temperature Effect on Zero
±0.1% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
