Product Description

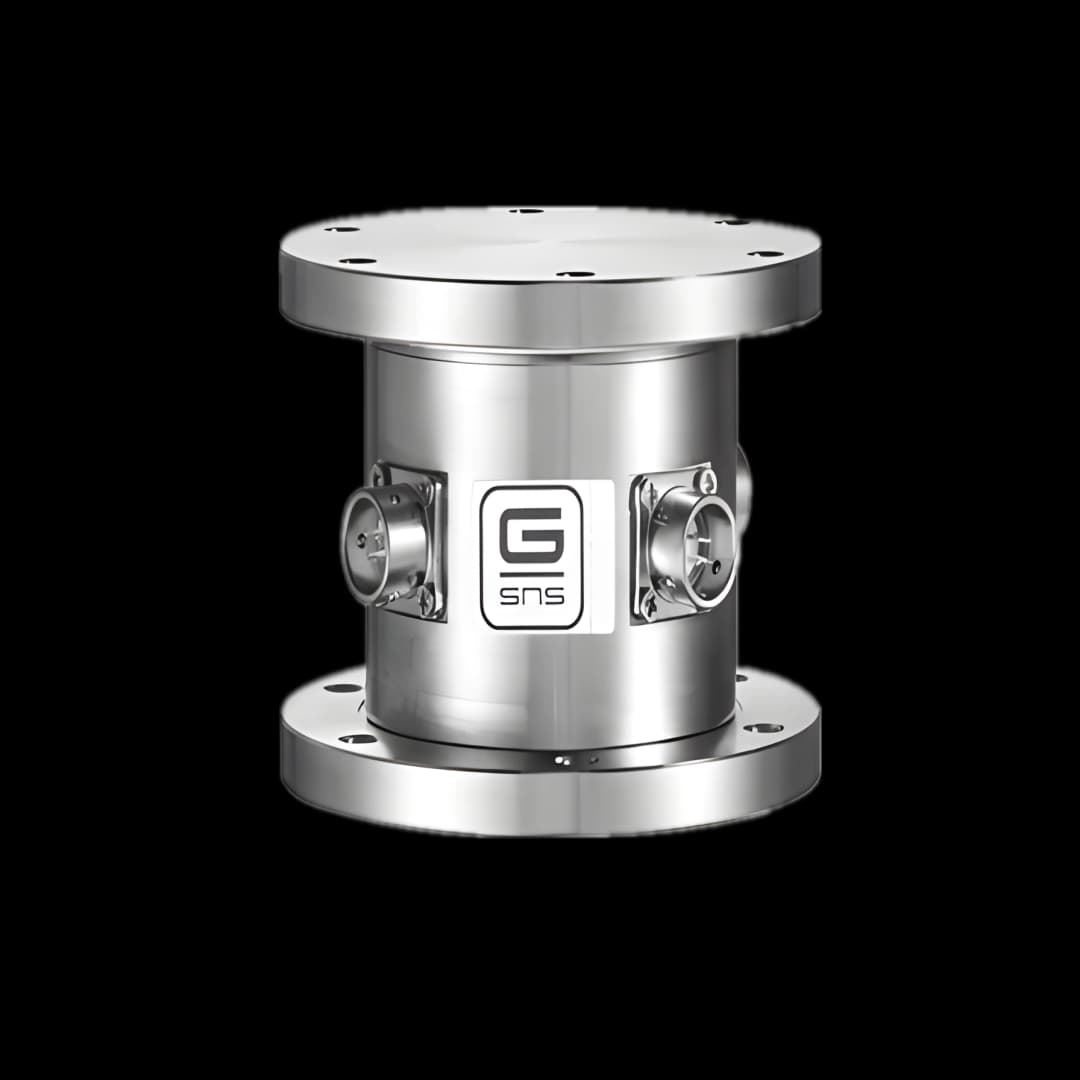

G-SNS
FI04
Custom Multi-Axis SensorThree-dimensional force sensor — multi-load type, stainless steel, IP65
G-SNS
FI04
Custom Multi-Axis SensorThree-dimensional force sensor — multi-load type, stainless steel, IP65
Description
Custom multi-axis (3D) force sensor designed for static and dynamic force measurement in robotic and automation applications. Integrates easily into OEM systems and is suitable for torque auditing and multi-directional force sensing.
- Multi load type (force)
- Three dimensional force sensor
- Easily integrates into OEM applications
- Designed for torque auditing
- Used for robotic applications
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.25% of RO
- Repeatability
±0.25% of RO
- Creep (30 min)
±0.2% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.0 ±10% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
385 ±30 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
1.8 kg
- Safe Overload
120% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
3 × Ø5 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.05% of RO / 10 °C
- Temperature Effect on Zero
±0.05% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
