Product Description
Description

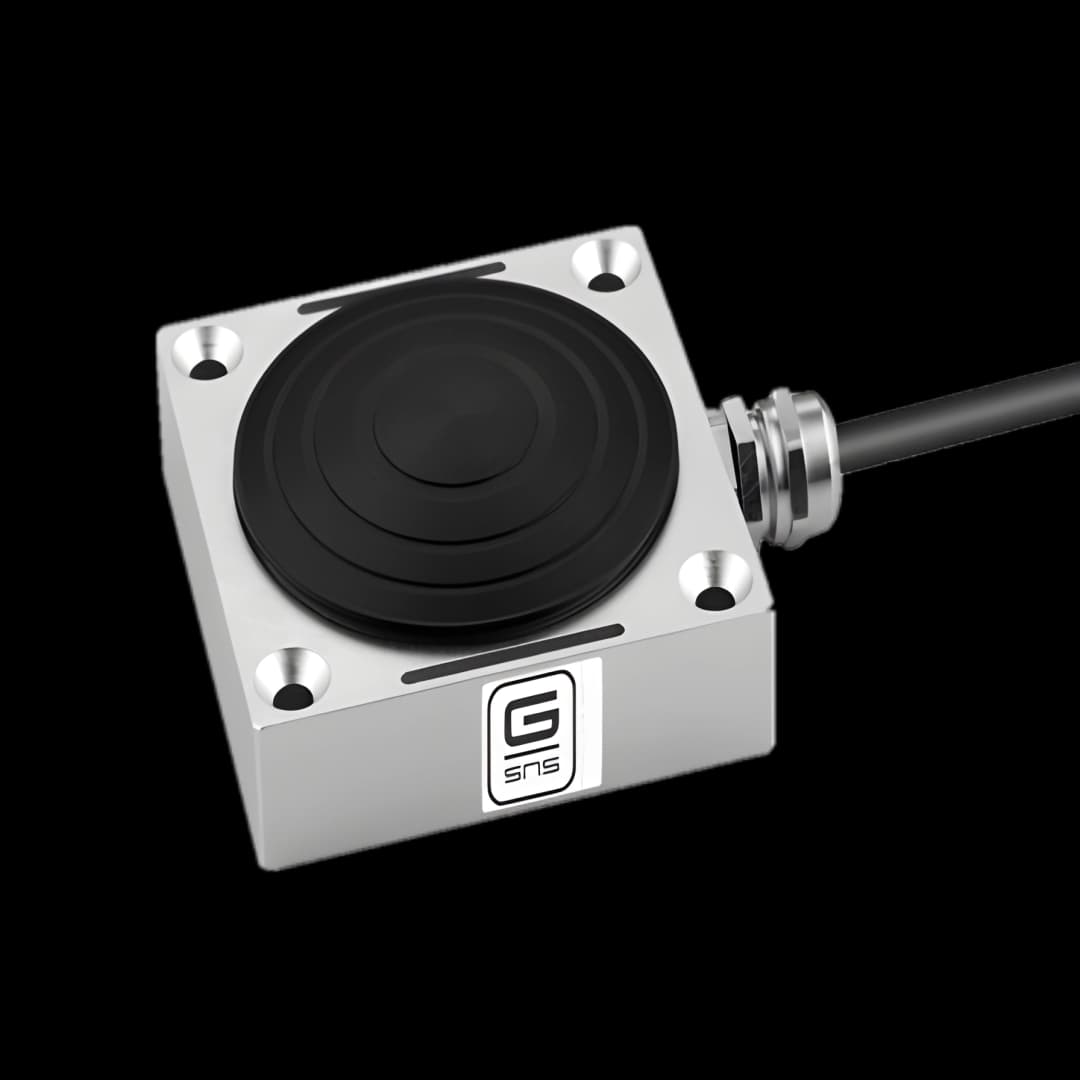

Compression-type pedal sensor designed for static pedal force testing in aerospace and automotive applications (accelerator/clutch testing). Low profile with a removable mounting plate and surface anodized for durability. Easy to install and suitable for OEM integration.
- Compression Type
- Low profile height
- Removable mounting plate
- Surface anodized
- Ideal for aerospace pedal testing and automotive accelerator/clutch testing
Performance
- Non-Linearity
±0.25% of RO
- Hysteresis
±0.1% of RO
- Repeatability
±0.1% of RO
- Creep (30 min)
±0.2% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.5 ±10% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
780 ±30 Ω
- Output Impedance
700 ±10 Ω
- Insulation
≥ 2000 MΩ / 50 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.4 kg
- Safe Overload
120% of RO
- Ultimate Overload
200% of RO
- Material
Aluminium Alloy (surface anodized)
- Cable Size
Ø4 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 60 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.05% of RO / 10 °C
- Temperature Effect on Zero
±0.03% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
