Product Description
Description

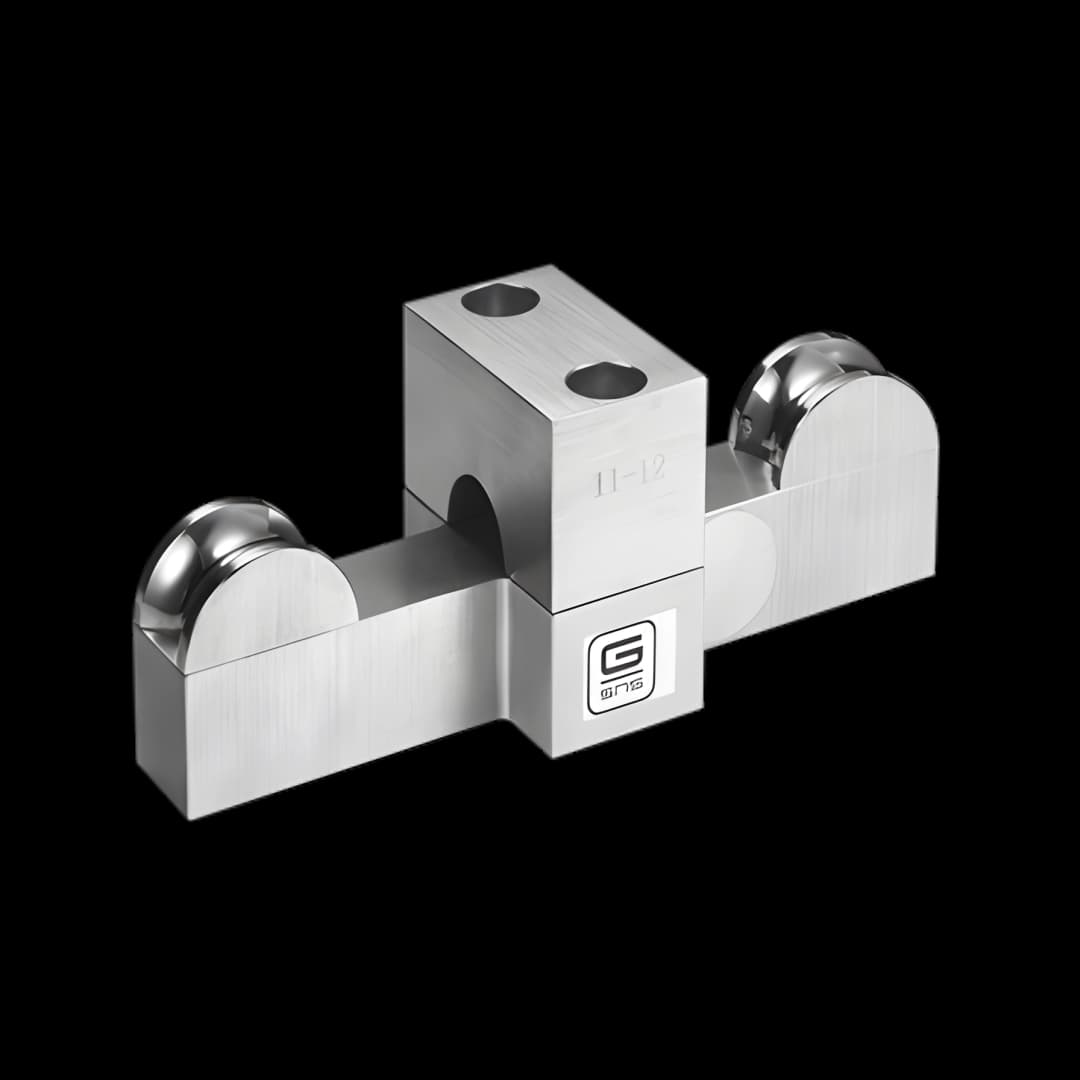

Custom rope tension sensor designed for inline rope and cable tension measurement. Easy to install and operate, and suitable for a wide range of industrial applications including crane rope monitoring and testing.
- Rope tension sensor
- Easy to install and operate
- Used for rope tension measurement
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.5% of RO
- Creep (30 min)
±0.05% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
4-20 mA (2-wire)
- Power
16-24 VDC
- Recommended Excitation
24 VDC
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
4-20 mA (2-wire): Red (UB+/S+), Black (OV/S-)
Mechanical
- Weight
See table above
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Alloy Steel
- Cable Size
Ø4 × 3000 mm
- IP Rating
IP66
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.025% of RO / 10 °C
- Temperature Effect on Zero
±0.025% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
