FJ33

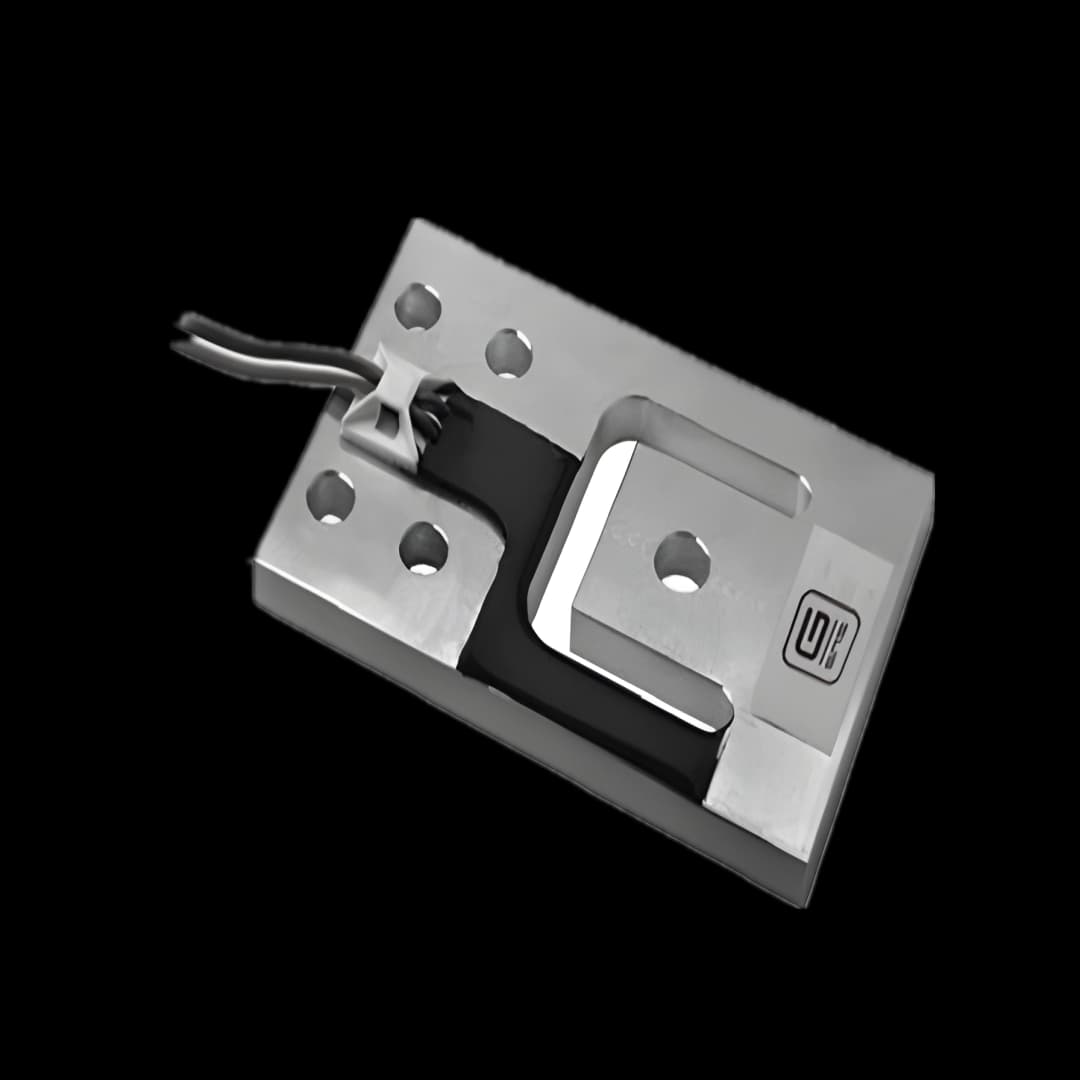

Custom Planar SensorVery low profile planar load sensor — matched output and calibration circuitry, anodized aluminium, IP65
FJ33
Custom Planar SensorVery low profile planar load sensor — matched output and calibration circuitry, anodized aluminium, IP65
Description
Very low profile planar (custom) sensor designed to give freedom in rectangular scale size design and eliminate the need for spider arrangements in typical bench top scales. Matched output and current calibration circuitry simplifies system integration.
- Compression Type
- Very low profile
- Provides freedom in rectangular scale size design
- Matched output and current calibration circuitry
- Eliminates need for spider in typical bench top scales
- Surface anodized; commonly used in low profile scales
Performance
- Non-Linearity
±0.03% of RO
- Hysteresis
±0.03% of RO
- Repeatability
±0.03% of RO
- Zero Balance
±1% of RO
Electrical
- Rated Output
1.0 ±2% mV/V
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
12 VDC
- Input Impedance
1160 ±15 Ω
- Output Impedance
1000 ±10 Ω
- Insulation
≥ 2000 MΩ / 50 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.3 kg
- Safe Overload
150% of RO
- Ultimate Overload
300% of RO
- Material
Aluminium Alloy (surface anodized)
- Cable Size
Ø5 × 5000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-30 to 70 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.02% of RO / 10 °C
- Temperature Effect on Zero
±0.02% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
