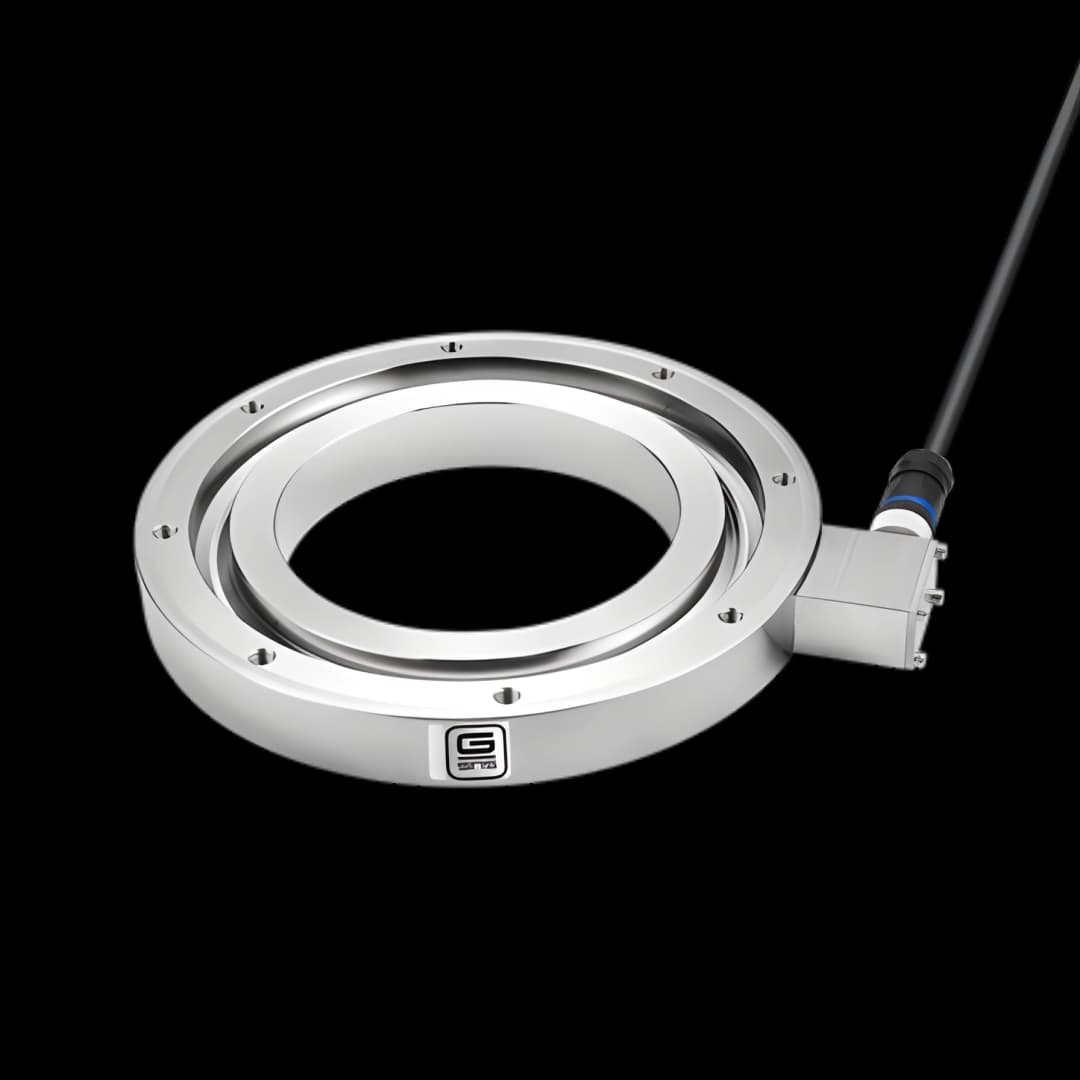

Custom Ring TransducerRing type transducer — low profile, customisable shape/size, optional internal amplifier, IP65
FJ41
Custom Ring TransducerRing type transducer — low profile, customisable shape/size, optional internal amplifier, IP65
Description
Ring (hoop) transducer designed for a wide measurement range in a very low profile form. Shape and size can be customised to suit injection machine and industrial applications. An optional internal amplifier and standard M12 connector make integration and replacement straightforward for OEMs.
- Ring type sensor
- Very low profile and wide measurement range
- Internal amplifier optional
- Shape and size can be customised
- Mainly used for injection machine industry and other industrial applications
Performance
- Non-Linearity
±1% of RO
- Hysteresis
±0.7% of RO
- Repeatability
±1% of RO
- Creep (30 min)
±1% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
0-10 V or 4-20 mA
- Recommended Excitation
16-24 VDC
- Maximum Excitation
24 VDC
- Insulation
≥ 2000 MΩ / 100 VDC
- Cable Colour Code / Pinout
PIN1: UB+ / +; PIN2: NC; PIN3: 0V / S-; PIN4: S+ / S+
Mechanical
- Weight
According to design
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Alloy Steel
- Connector
M12 × 1-4P
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.05% of RO / 10 °C
- Temperature Effect on Zero
±0.05% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
