Product Description

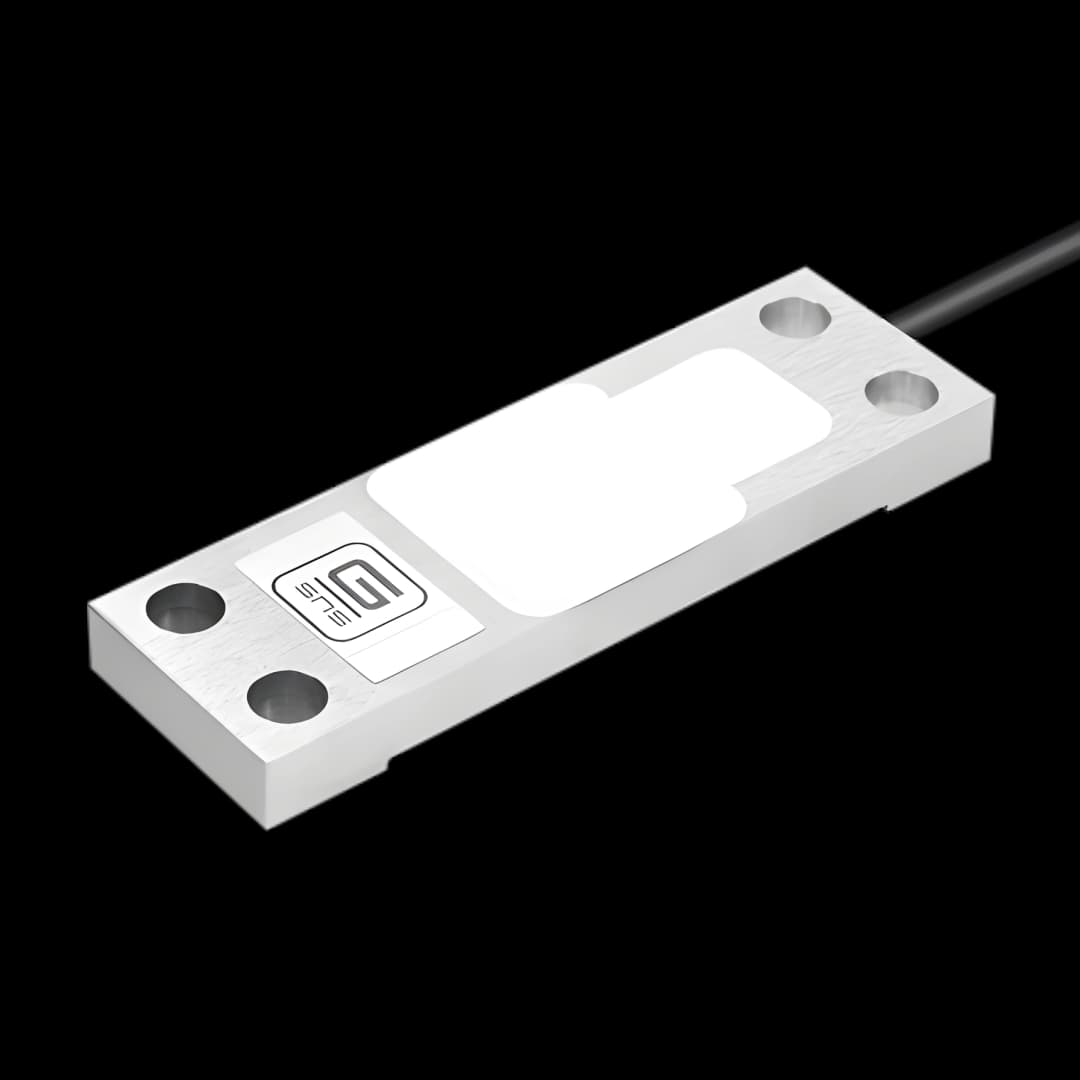

FJ46
Custom Strain TransducerCustom strain transducer — suitable for large capacity equipment, stainless steel, IP65
FJ46
Custom Strain TransducerCustom strain transducer — suitable for large capacity equipment, stainless steel, IP65
Description
Custom strain transducer designed to measure direct strain from equipment where it is inconvenient to install other force transducers. Easy to install and replace, suitable for large capacity equipment and a practical solution for monitoring structural strain in industrial installations.
- Strain transducer
- Easy to install and replace
- Suitable for large capacity equipment
- Suitable where other force transducers are inconvenient to install
- Used to measure directly the strain of the equipment
Performance
- Non-Linearity
±1% of RO
- Hysteresis
±1% of RO
- Repeatability
±1% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.0 ±15% mV/V
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
1000 ±10 Ω
- Output Impedance
1005 ±3 Ω
- Insulation
≥ 2000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.5 kg
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
Stainless Steel
- Cable Size
Ø3 × 6000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.5% of RO / 10 °C
- Temperature Effect on Zero
±0.5% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
