Product Description
G-SNS
FJ46-B

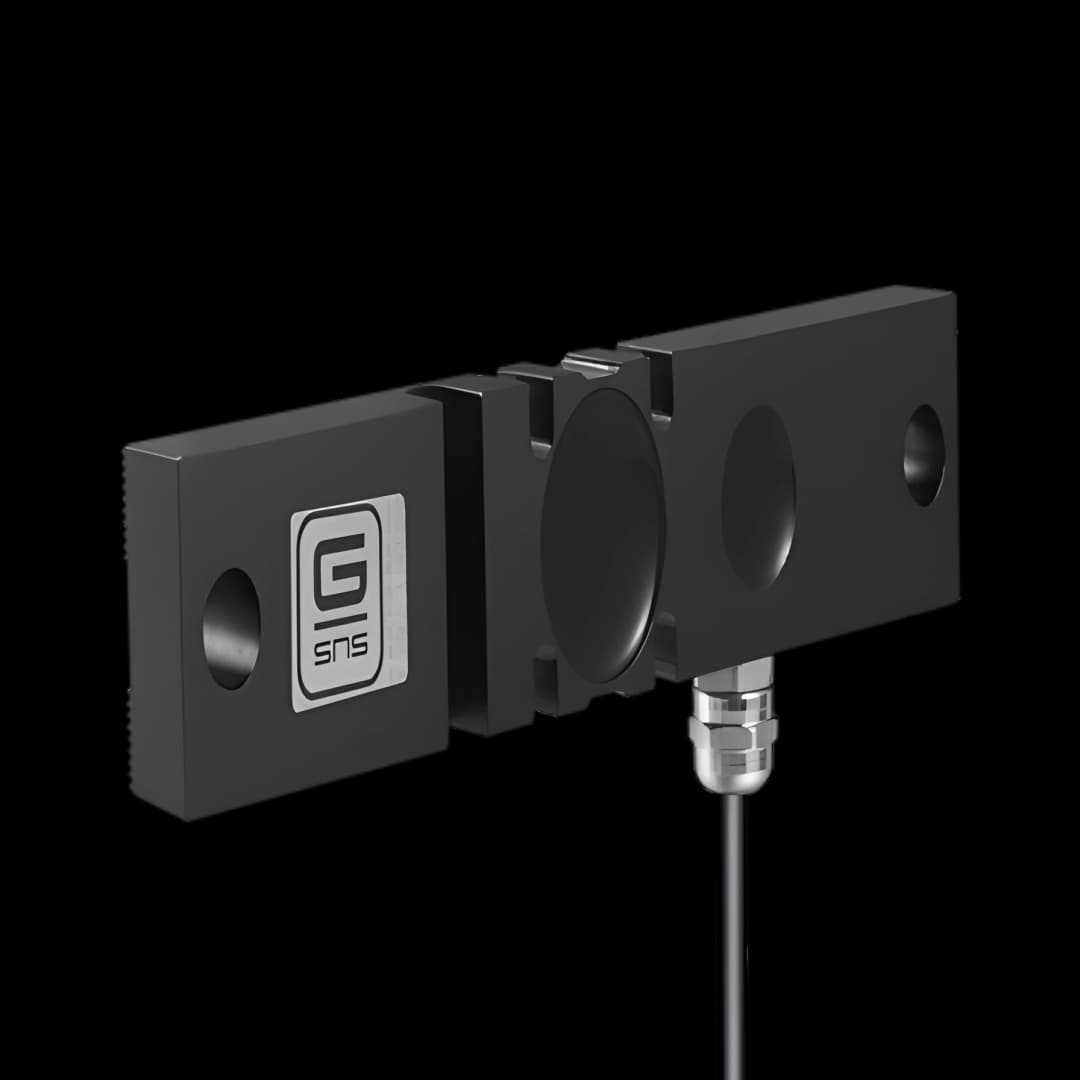

Custom Strain TransducerCustom strain transducer (FJ46-B) — suitable for large capacity equipment, stainless steel, IP65
G-SNS
FJ46-B
Custom Strain TransducerCustom strain transducer (FJ46-B) — suitable for large capacity equipment, stainless steel, IP65
Description
Custom strain transducer variant FJ46-B designed to measure direct strain where it is inconvenient to install other force transducers. Easy to install and replace, and suitable for large capacity equipment and industrial monitoring applications.
- Strain transducer
- Easy to install and replace
- Suitable for large capacity equipment
- Suitable where other force transducers are inconvenient to install
- Used to measure directly the strain of the equipment
Performance
- Non-Linearity
±1% of RO
- Hysteresis
±1% of RO
- Repeatability
±1% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.0 ±10% mV/V
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
400 ±50 Ω
- Output Impedance
352 ±3 Ω
- Insulation
≥ 2000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.6 kg
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
Stainless Steel
- Cable Size
Ø5 × 5000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.2% of RO / 10 °C
- Temperature Effect on Zero
±0.2% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
