Product Description
Description

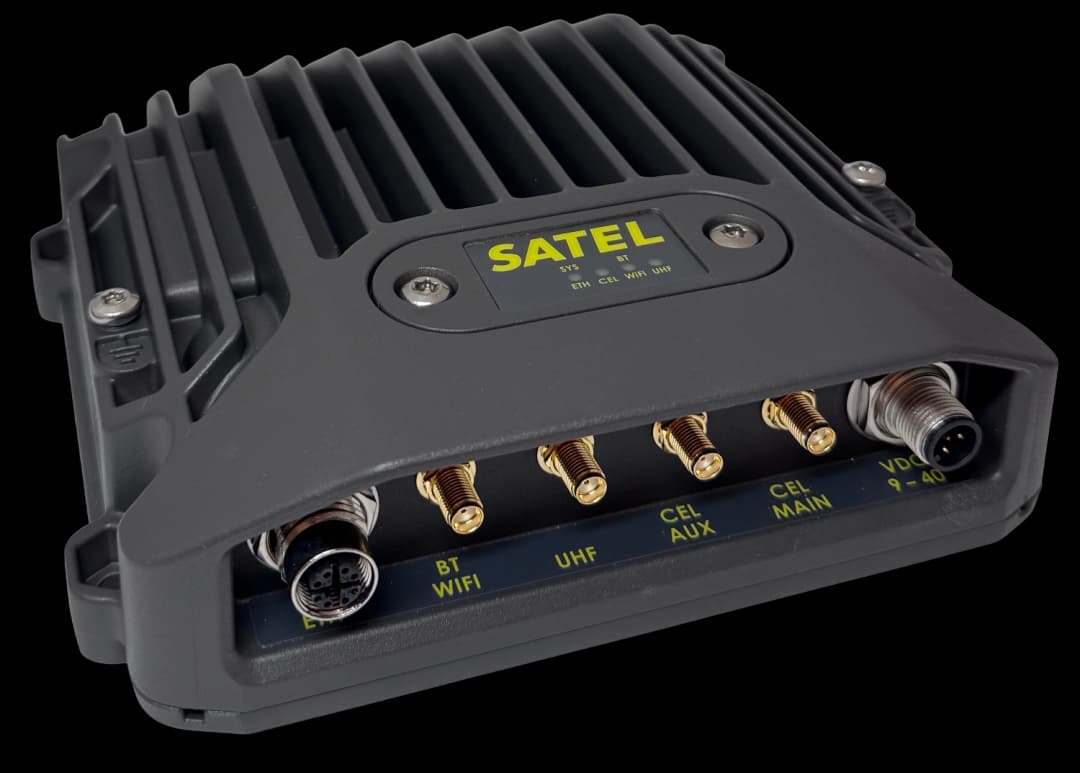

The SATEL MCCU-30 is a versatile, innovative, and robust multi-band vehicle router solution that effectively solves connectivity challenges in a wide range of applications, including machine control and off-highway vehicle applications.
It excels in providing reliable connectivity by smartly integrating various wireless technologies in even the most intricate scenarios, all within a single unit. Whether you are dealing with a new build or retrofit projects, SATEL MCCU-30 offers adaptability, thanks to its field proven and IP classified mechanics.
Prose
SATEL MCCU-30 is designed to resolve various connectivity challenges in harsh environments:
- LTE, WiFi, UHF, BT (all can be used simultaneously)
- Based on field proven mechanics
- IP67 / IP69K classification
- Vibration, shock and temperature
- Connections with surge and ESD (Electrostatic Discharge) protection Comprehensive Internet solution from machine and/to other devices:
- LTE towards Internet and for example to cloud services
- WiFi to (for example) enable local wireless communication
- BT low energy for sensors and other auxiliary devices
- Local connection via ethernet GNSS RTK correction data to a moving vehicle with UHF radio based RTK or NTRIP over LTE:
- Compatible with existing SATEL radios
- RTK correction data is forwarded over Ethernet to machine control system
Support for SATEL Secure Remote
SATEL Secure Remote is a cloud-based service designed to enhance the value of multi-band vehicle router by addressing maintenance requirements and simplifying configuration complexities in machine control applications. When combined with the SATEL MCCU-30, it presents a comprehensive connectivity solution that prioritizes user-friendliness and peace of mind, providing significant value to customers.
Specifications
- Communication technologies
- LTE Cat 4
- UHF 403 … 473 MHz (SATEL-TR4+)
- WiFi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz
- Bluetooth V5.2
- Interface
1 GB Ethernet
- Operating voltage range
+9 … +40 VDC
- Operating temperature
-20 … +55 °C (type approval conditions) -40 … +70 °C (functional)
-40 … +70 °C (storage)
- Antenna connectors
SMA female (LTE Main, LTE Div, Wi-Fi/BT, UHF)
- Power connector
5-pin male A-coded M12
- Ethernet connector
8-pin female X-coded M12
- Size / weight
182 x 187 x 55 mm (L x W x H) / 1550 g
- IP classification
IP67 / IP69K
- Cellular bands
- GSM: B2/B3/B5/B8
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28
- LTE-TDD: B38/B39/B40/B41
