Product Description
Description

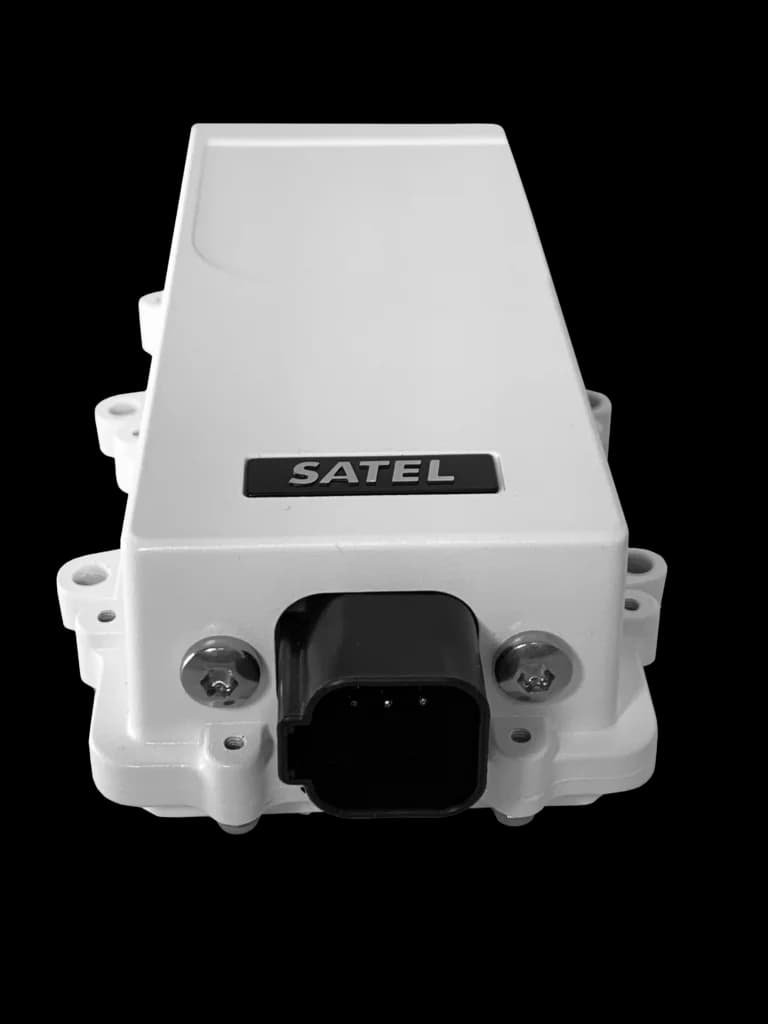

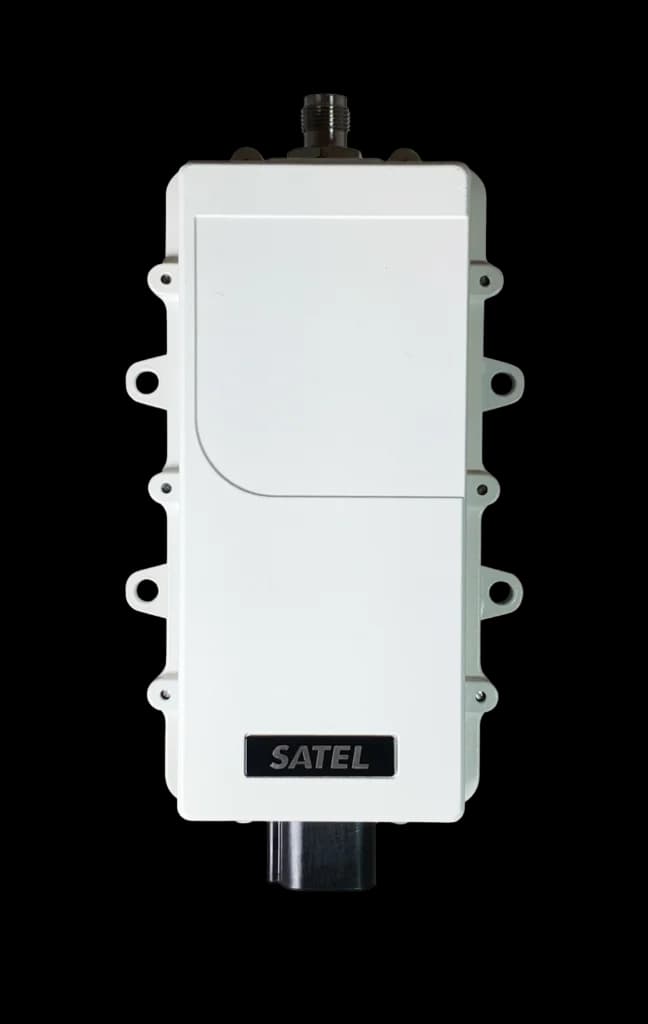

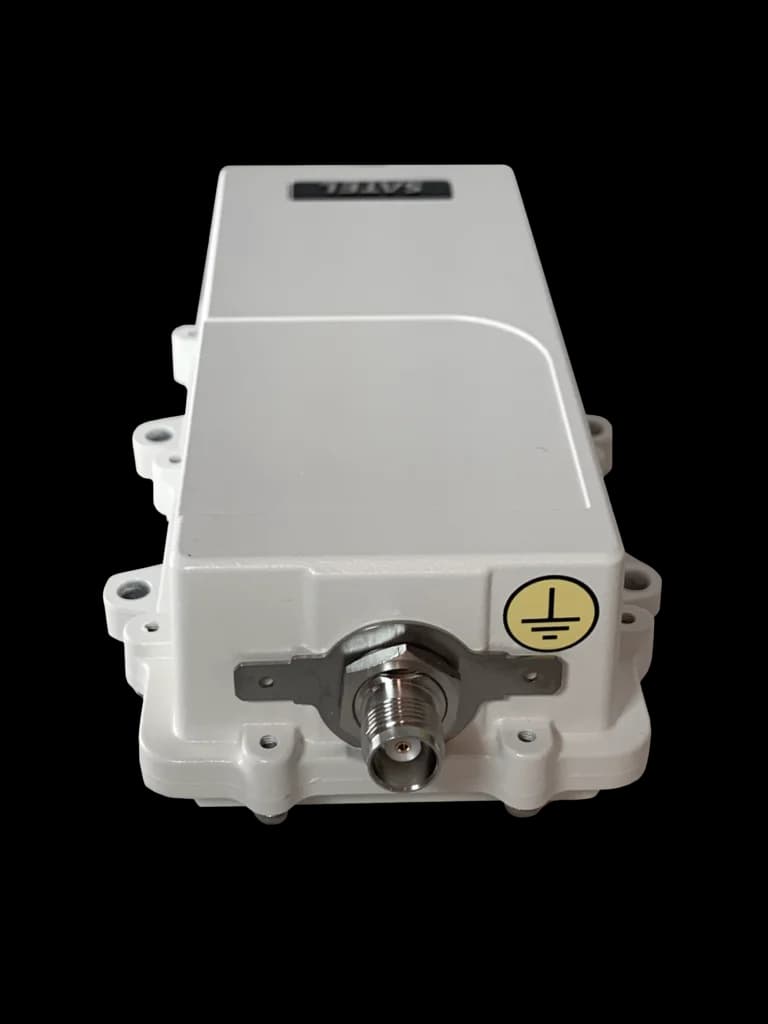

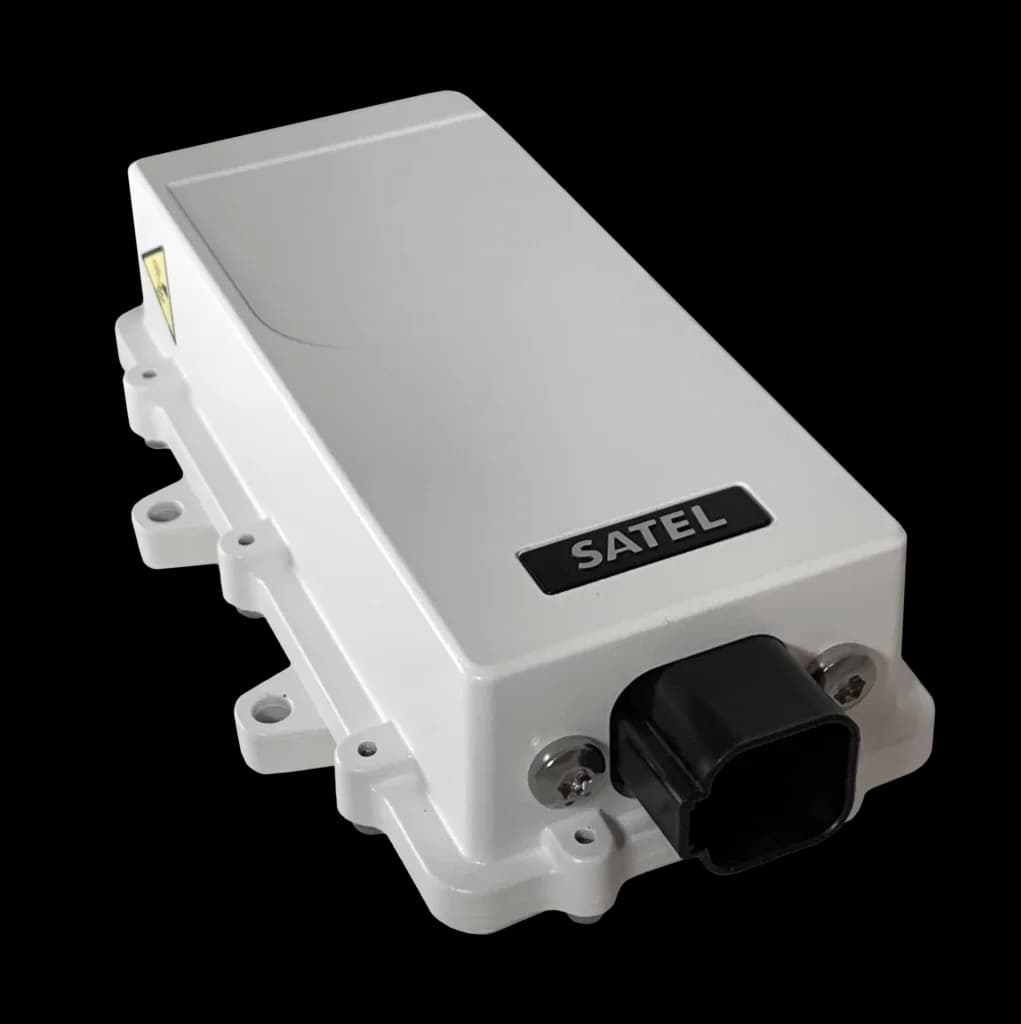

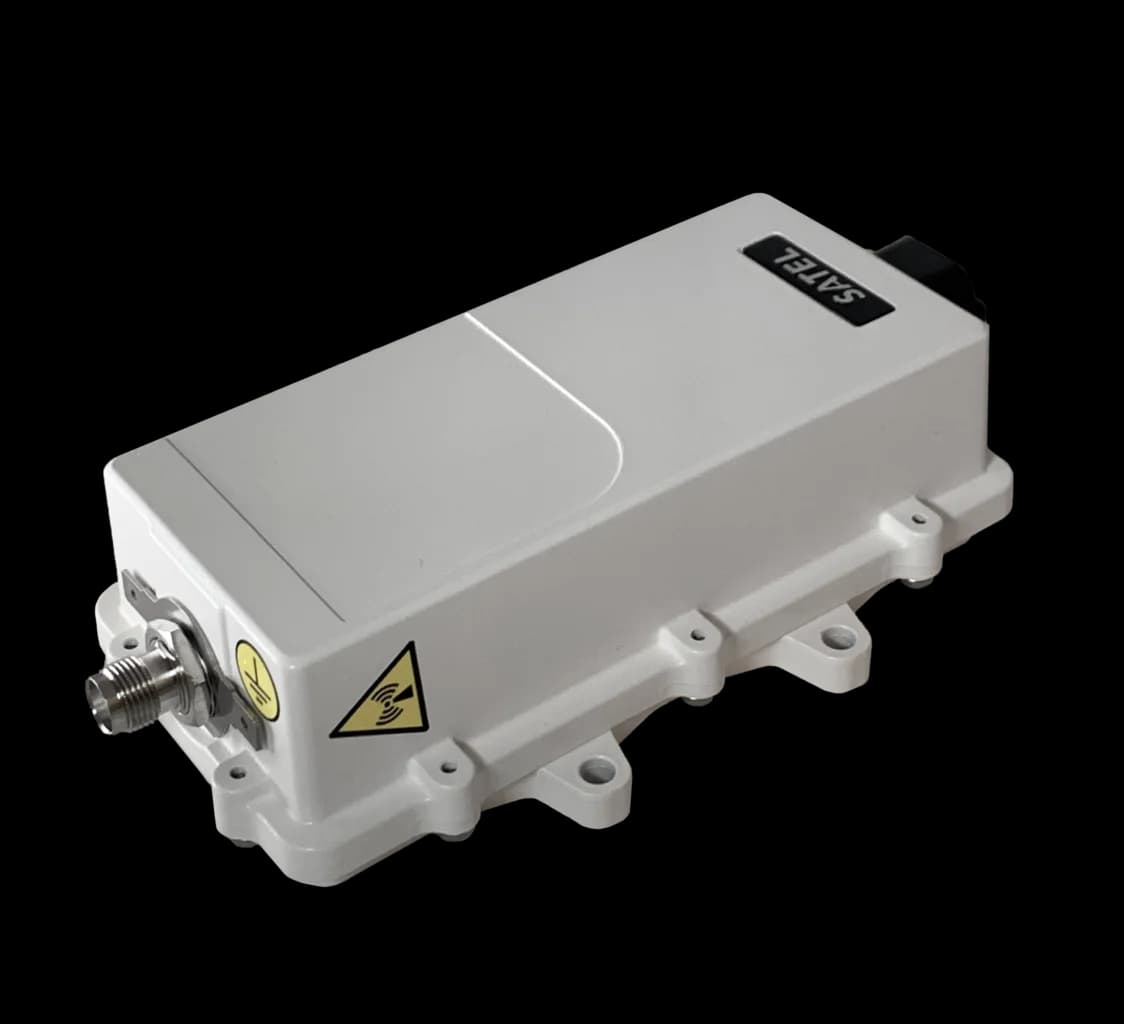

SATEL Proof-TR489 is a heavy-duty radio modem. It has the IP69K rating, which is the highest protection available. It protects against ingress of dust, high temperature and high-pressure water. The product consists of this IP69K (and IP67) sealed housing and a multifrequency radio module. It has three frequency bands for the client to select and set:
- Licensed 403 … 473 MHz
- License-free 869.4…869.65 MHz
- License-free 902 … 928 MHz
SATEL Proof-TR4+ (YM6920) with AES128 encryption support — region: all
SATEL Proof-TR4+ (YM6925) without encryption support — region: all
SATEL Proof-TR4+ (YM6930) with AES128 encryption support — for US/CA 400/915
SATEL Proof-TR4+ (YM6935) without encryption support — for US/CA 400/915
SATEL Proof-TR4+ (YM6940) with AES128 encryption support — for AU/BR*) 400/915
SATEL Proof-TR4+ (YM6945) without encryption support — for AU/BR*) 400/915
SATEL Proof-TR4+ (YM6950) with AES128 encryption support — for EU 400/869
SATEL Proof-TR4+ (YM6955) without encryption support — for EU 400/869
Prose
Heavy-duty solution for harsh environment
SATEL Proof-TR489 with IP67 / IP69K-classifications meets, for example, the requirements of machine control, smart farming and marine applications. It is a flexible and cost-effective solution that has profound electrical protection; both the power and data lines as well as the antenna interface are surge protected. It also has additional filtering on GNSS frequencies. The modem is compatible with SATELLINE-EASy, -TR1, -TR9 / SATEL-EASy+ / -TR4+ / -TR49 / -TR489 based products on corresponding frequencies, as well as several other radio protocols. Complies with the requirements in the EU, USA, Canada and Australia.
Specifications
- Frequency range
403 .. 473 / 869.4 … 869.65 / 902 … 928 MHz
- Channel spacing
12.5, 20, 25 kHz @ 403 .. 473 MHz 25, 50 kHz @ 869.4 … 869.65 MHz
- Spreading method
Frequency hopping spread spectrum @ 902 … 928 MHz
- Sensitivity, typical
-112 dBm / -108 dBm / -109 dBm
- Carrier power
1 W / 0.5 W / 1 W
- Interface
RS-232 (TD, RD lines)
- Data speed
Serial max.:
- 115200 bps Radio max.:
- 28800 bps @ 403 … 473 MHz
- 38400 bps @ 869.4 … 869.65 MHz
- 115200 bps @ 902 … 928 MHz
- Operating voltage range
+7 … +27.5 Vdc (-15% / +20%)
- Connectors
Deutsch DT04-6P-CL09 / TNC female
- Size / Weight
174 x 95 x 46 mm / <500 g
- IP classification
IP67 / IP69K
- Encryption support
AES128 as default / AES256 as an order option
