Product Description
Description

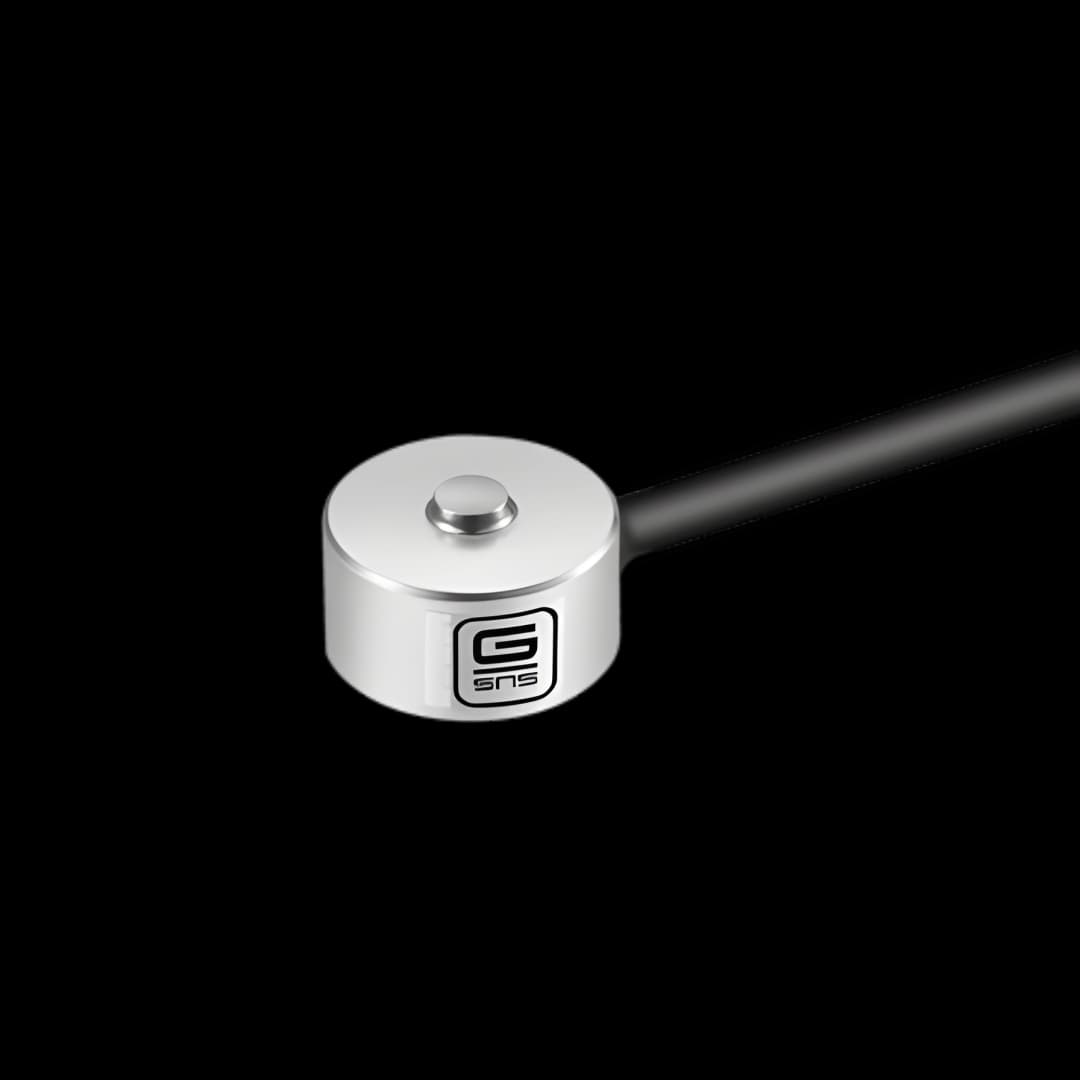

Compact compression load cell designed for general weighing and force measurement applications. The FA14 provides a 1.0 mV/V rated output and environmental protection to IP65, making it suitable for many industrial applications where a robust, small form factor load cell is required.
- Compression Type
- Low Deflection
- Ultra Fast Response
- Impressive Repeatability
- Adjustable Resistance For Zero Adjustment
- Suitable For Limited Spaces
- Various Applications Such As Automation Industry
Performance
- Non-Linearity
±1% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.5% of RO
Electrical
- Rated Output
1.0 ±10% mV/V
- Recommended Excitation
5 VDC
- Maximum Excitation
7 VDC
- Input Impedance
1030 ± 80 Ω
- Output Impedance
1030 ± 80 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Cable Size
Ø2 × 3000 mm
- IP Rating
IP65
- Material
See manufacturer's table
Temperature
- Operating Temperature
-20 to 80 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
