Load Cells

Load Cells are transducers that convert a force into an electrical signal. They are widely used in various industries for applications such as weighing, force measurement, and load monitoring. Load Cells come in different types, including compression, tension, shear beam, bending beam, and more, each designed for specific applications and environments.

Column Load Cells

Products

G-SNS FB73 column load cell

G-SNS

FB73

Column load cell — low deflection, fast response, compact, stainless steel, IP54

Compression Load Cells

Products

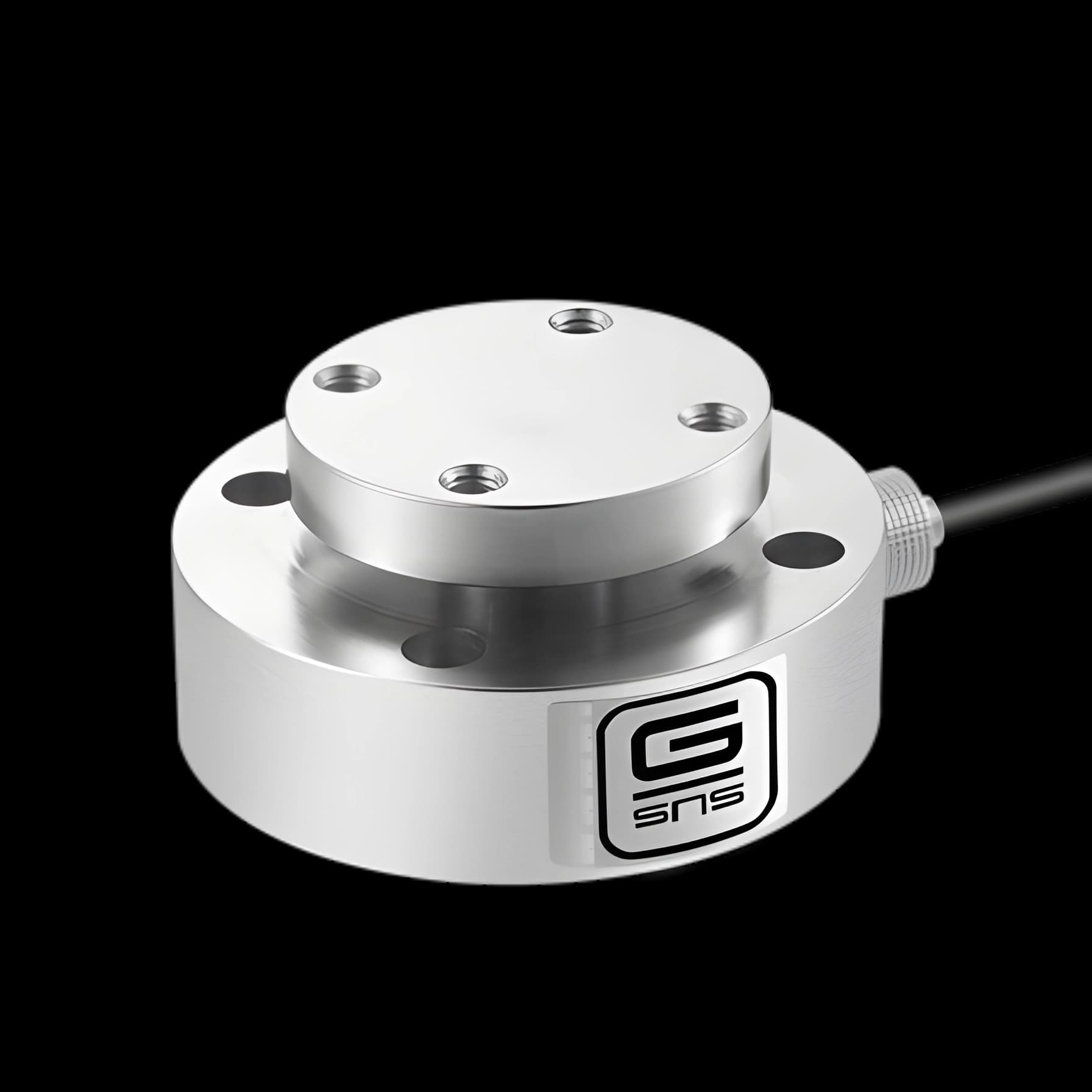

G-SNS FA70 compression load cell

G-SNS

FA70

Low-height compression load cell — plug joint design, flanged installation, stainless steel, IP67

Custom Load Pins

Products

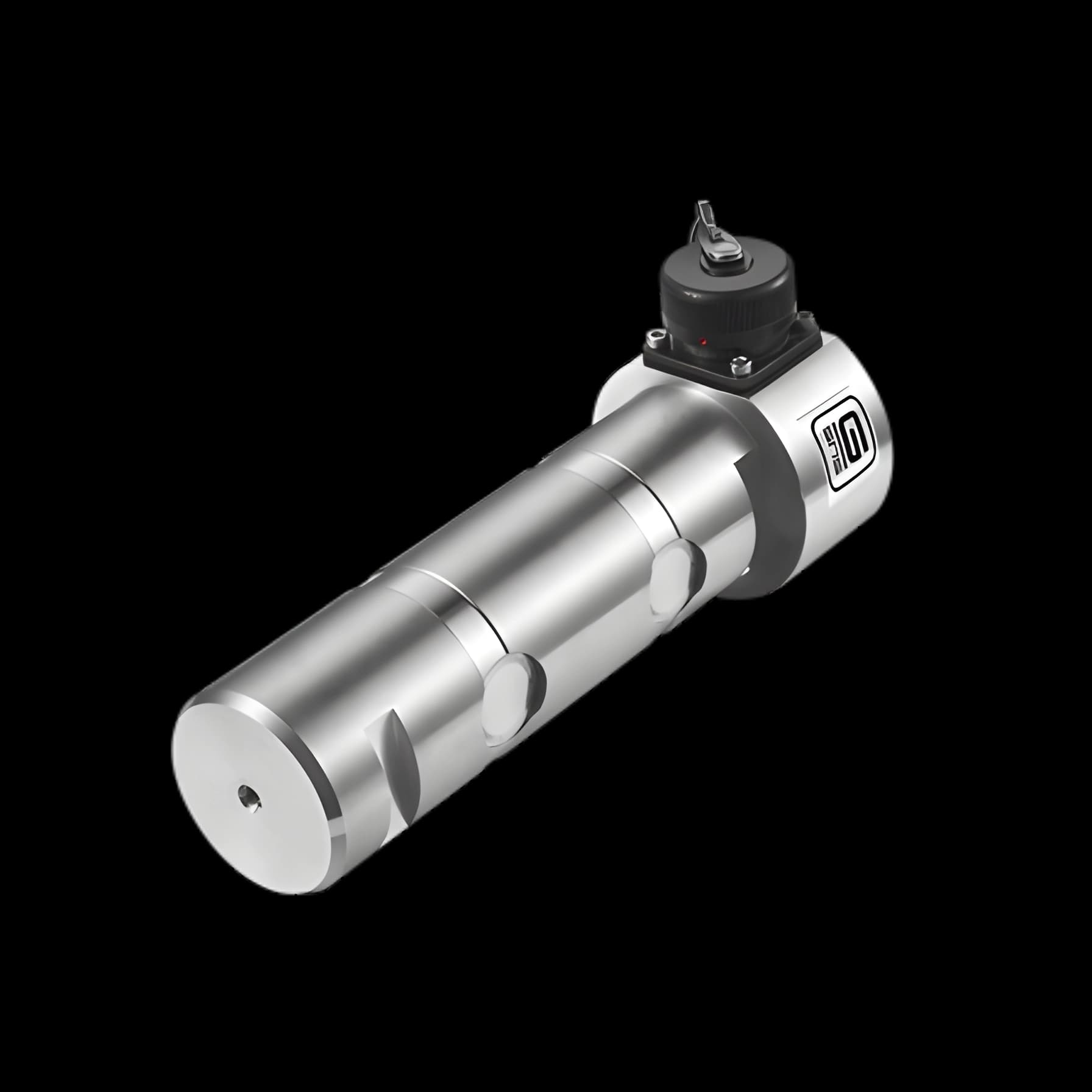

G-SNS FE02 custom load pin

G-SNS

FE02

Custom load pin — load sensing clevis bolt, stainless steel, IP67

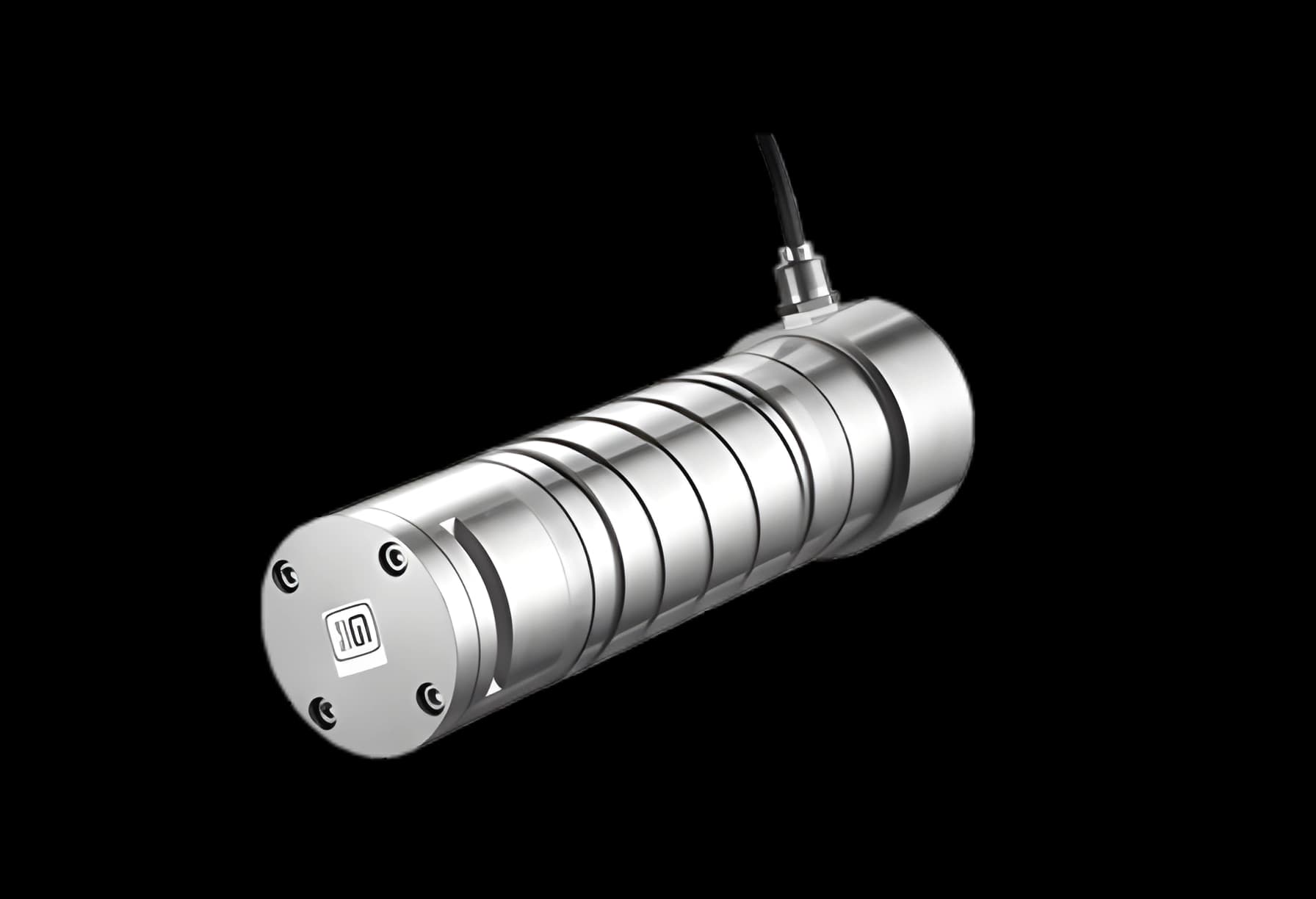

G-SNS FE54 custom load pin

G-SNS

FE54

Custom load pin — load sensing clevis bolt, stainless steel, IP67

In-Line Load Cells

Products

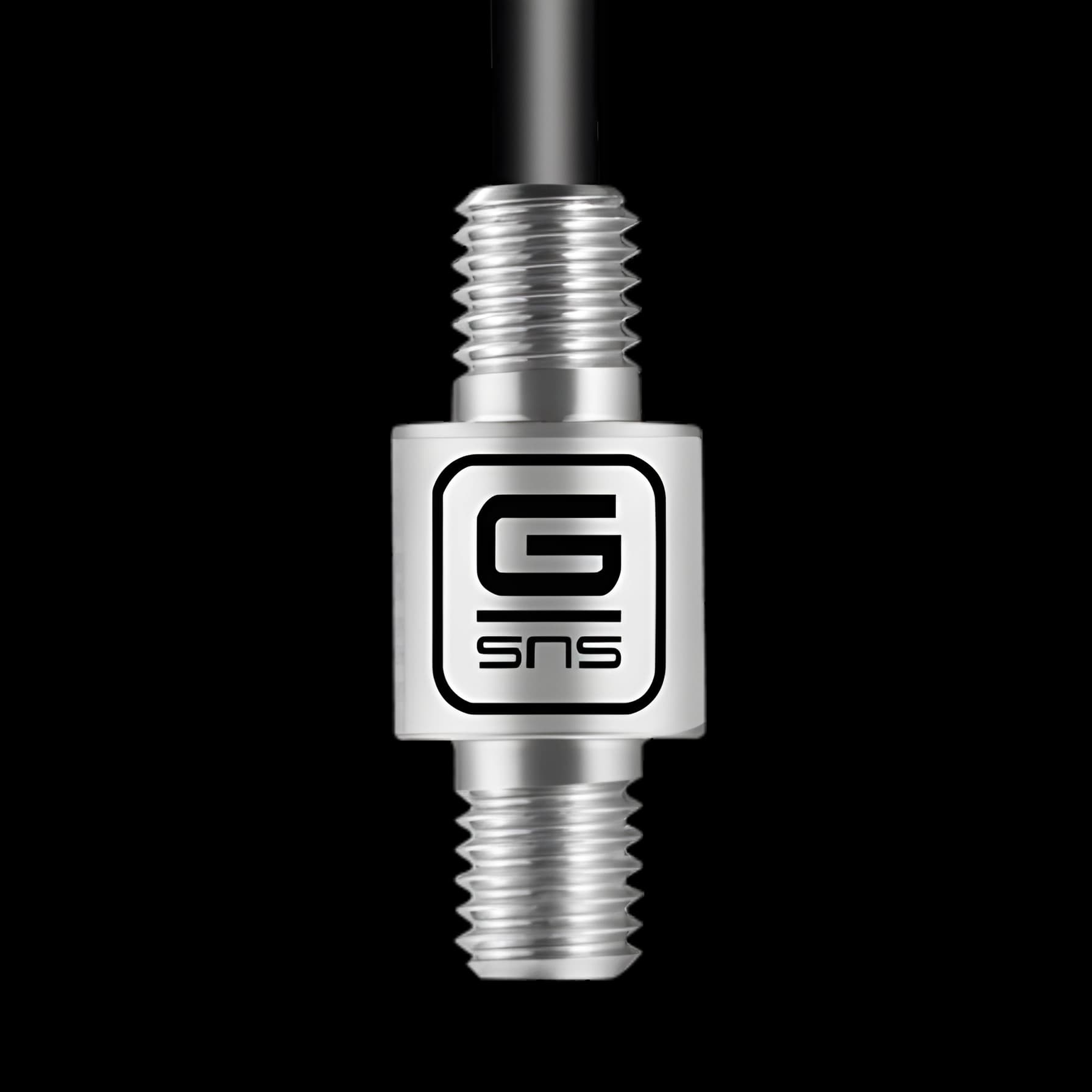

G-SNS FB11 in-line load cell

G-SNS

FB11

Subminiature in-line compression load cell — low deflection, bottom cable exit, IP66

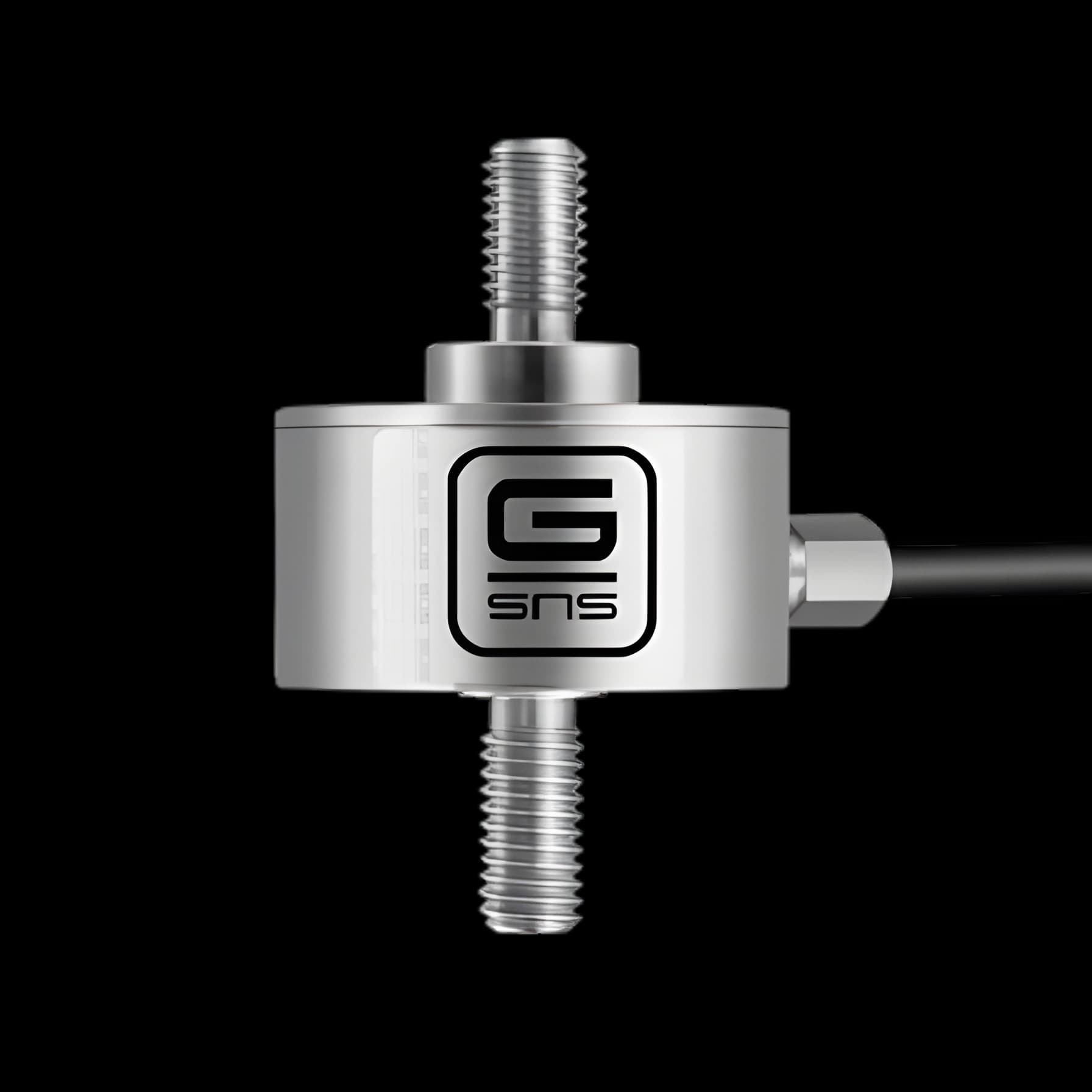

G-SNS FB12 in-line load cell

G-SNS

FB12

Miniature in-line tension and compression load cell — minimal mounting clearance, stainless steel, IP65

Load Button Load Cells

Products

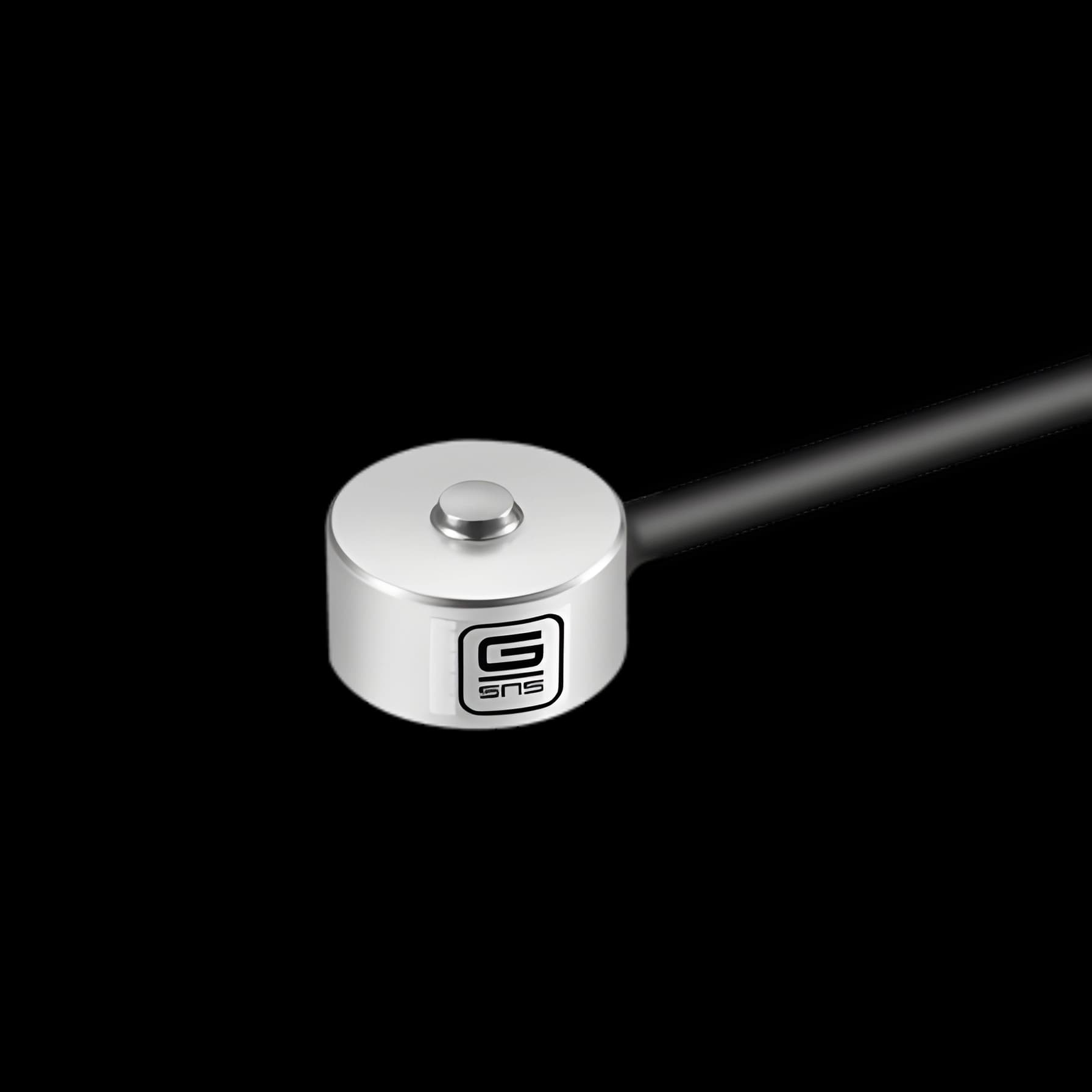

G-SNS FA14 compression load cell

G-SNS

FA14

Compact compression load cell, 1 mV/V rated output, IP65

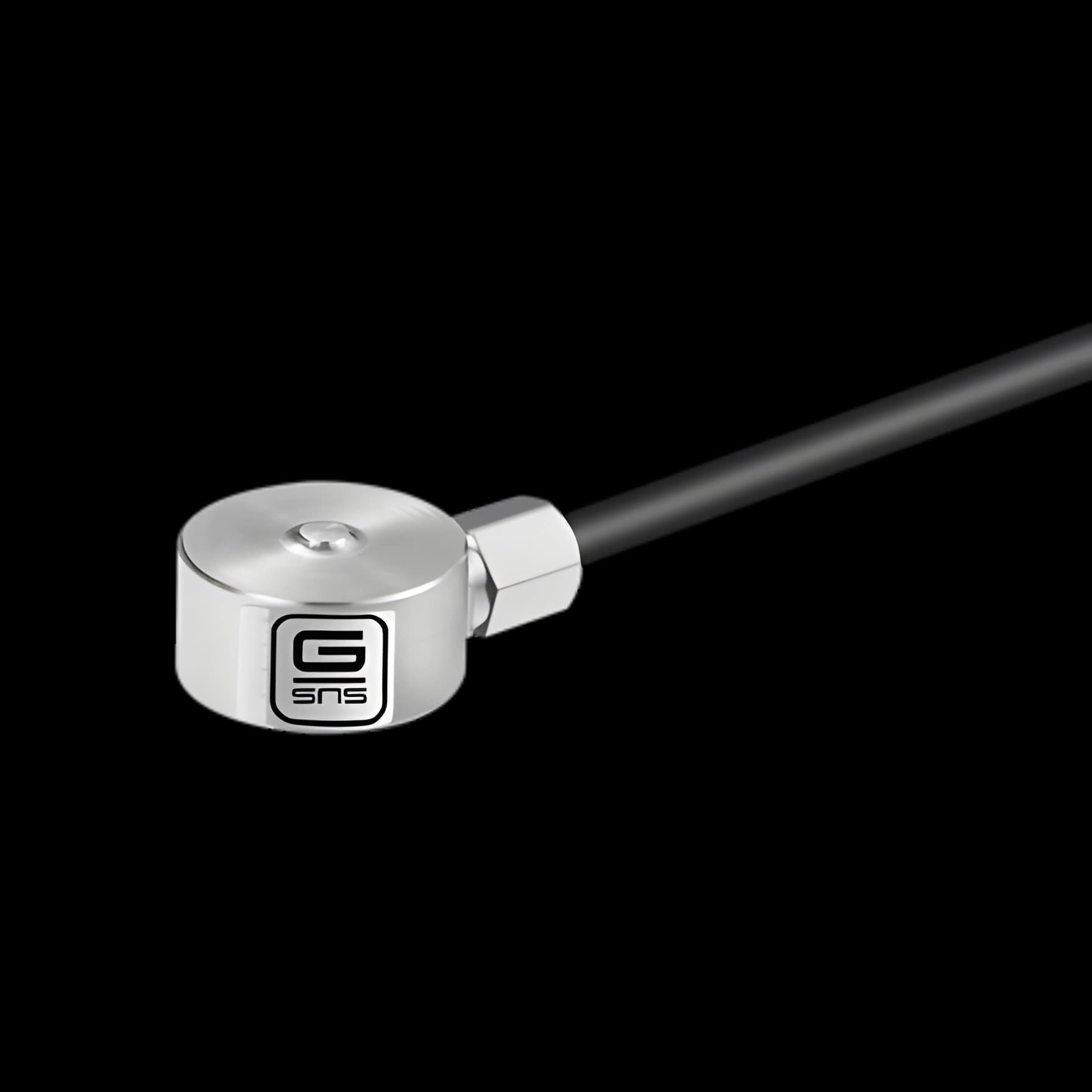

G-SNS FA15 compression load cell

G-SNS

FA15

Compression load cell — low deflection, fast response, IP65

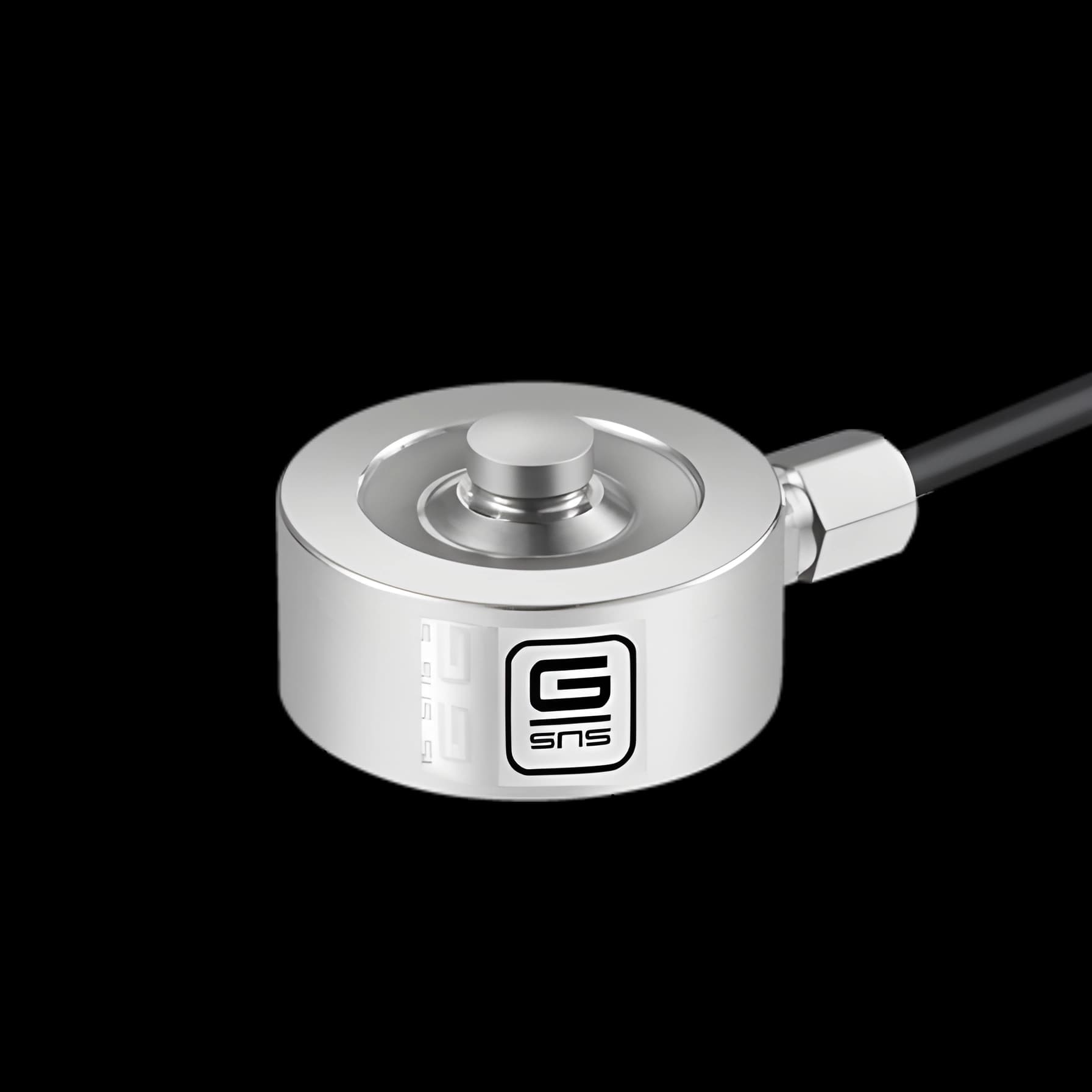

G-SNS FA18 compression load cell

G-SNS

FA18

Compression load cell — ultra low deflection, stainless steel, IP65

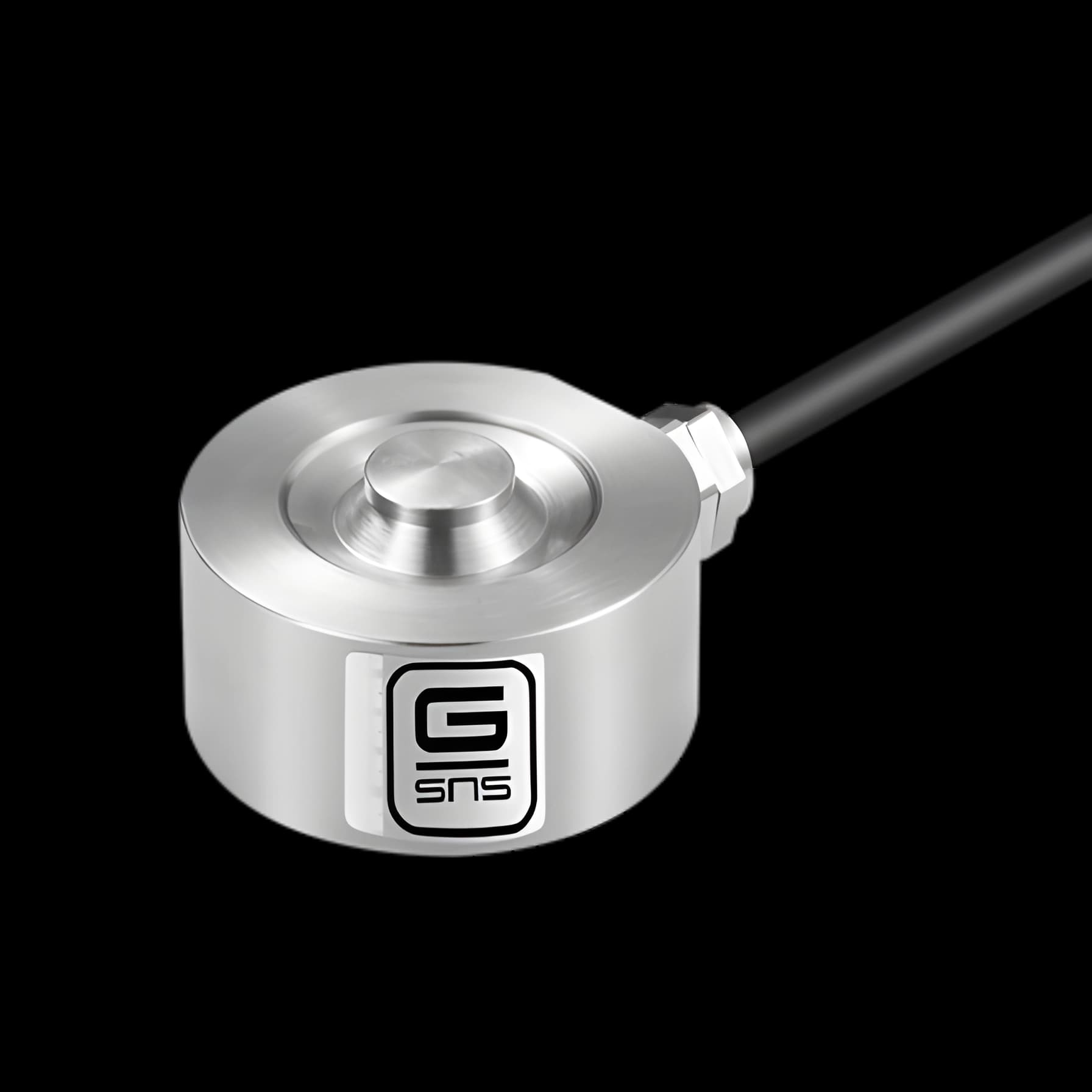

G-SNS FA19 compression load cell

G-SNS

FA19

Compression load cell — ultra low deflection, stainless steel, IP66

G-SNS FA60 compression load cell

G-SNS

FA60

Subminiature compression load cell — low deflection, fast response, stainless steel, IP64

Pancake Load Cells

Products

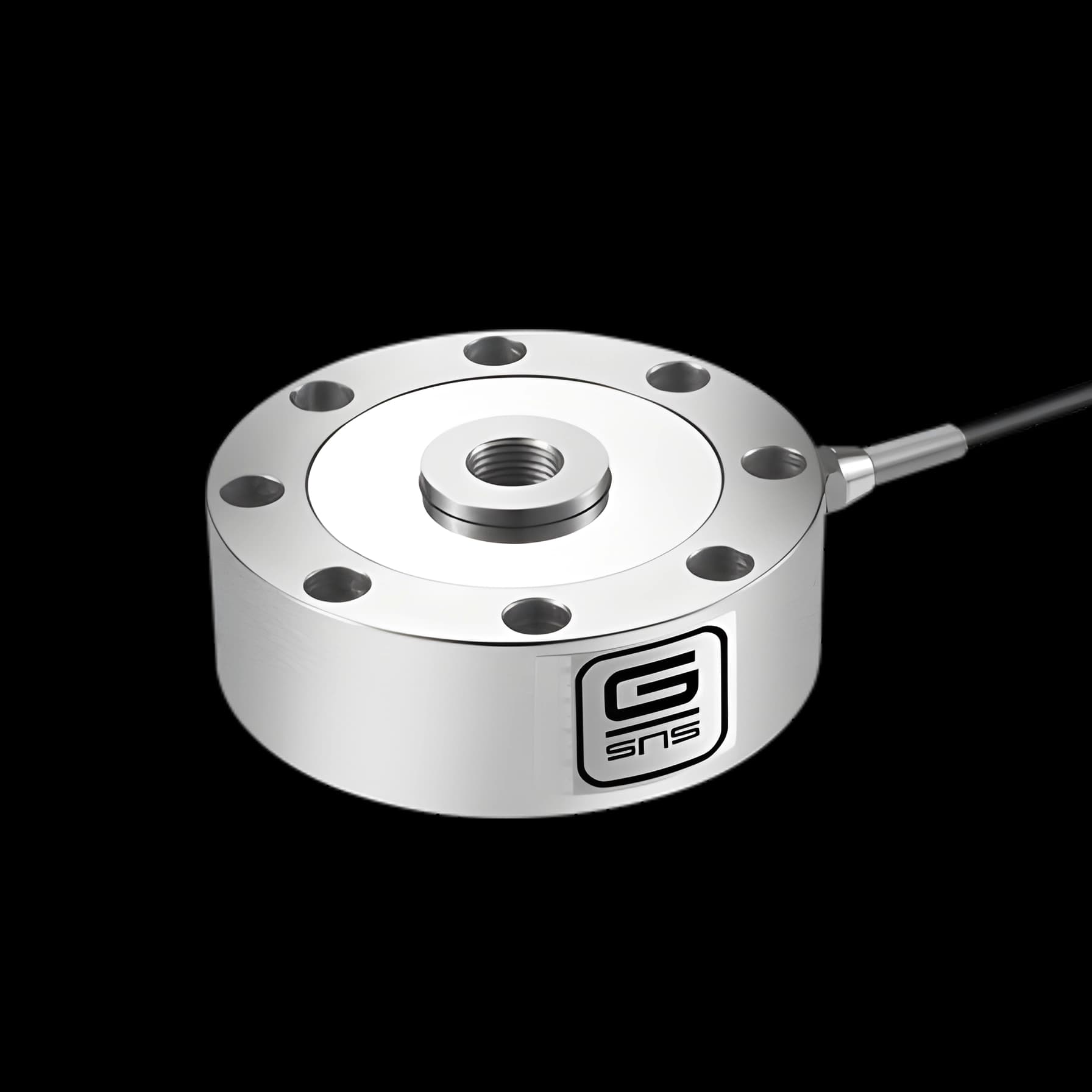

G-SNS FB22 pancake load cell

G-SNS

FB22

Low profile pancake load cell — available in tension and compression, alloy steel, IP66

S-Beam Load Cells

Products

G-SNS FB01 tension-compression load cell

G-SNS

FB01

In-line tension and compression load cell — compact, robust cable strain relief, suitable for small-range test instruments

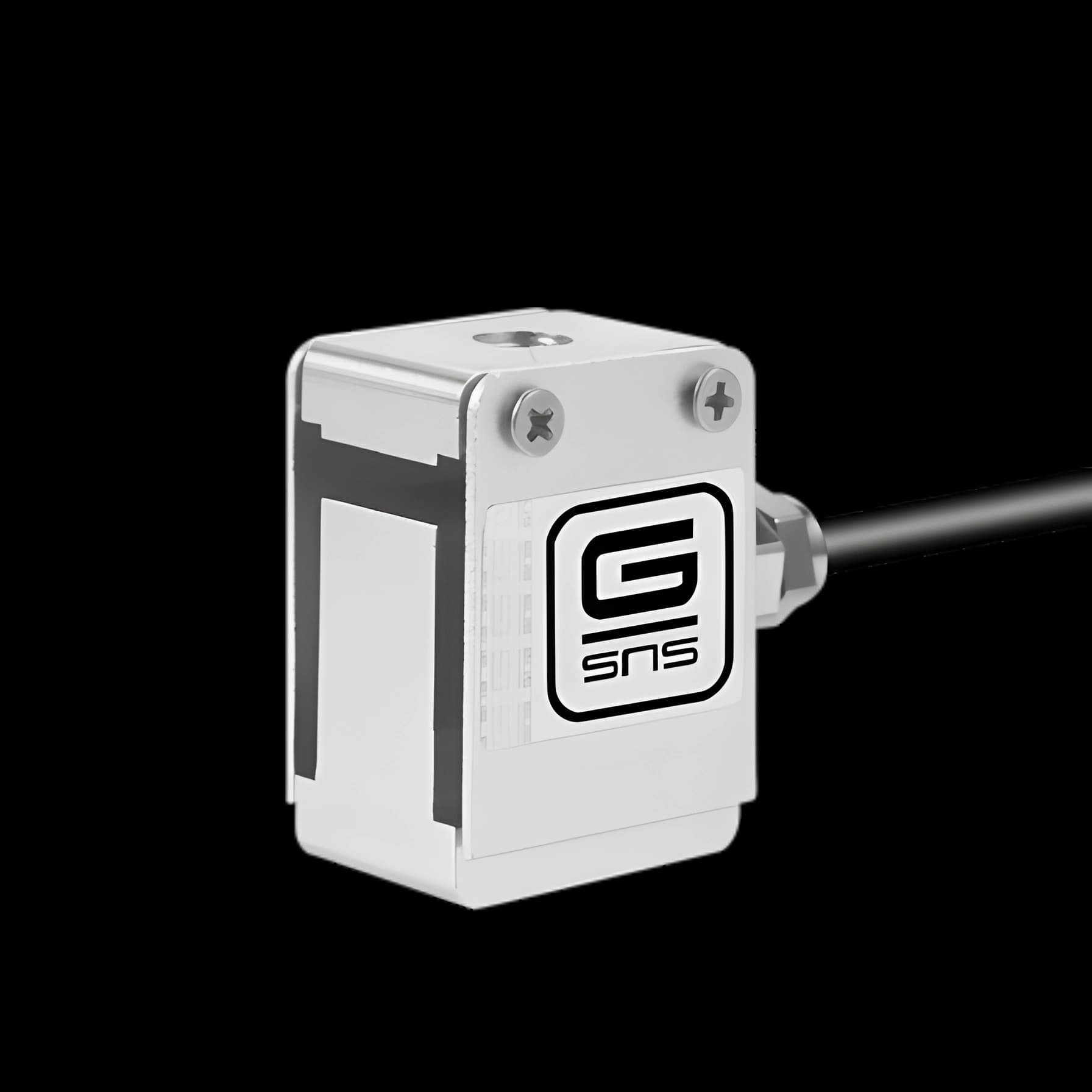

G-SNS FB07 s-beam load cell

G-SNS

FB07

S-beam load cell — light weight, miniature, for in-line tension and compression applications

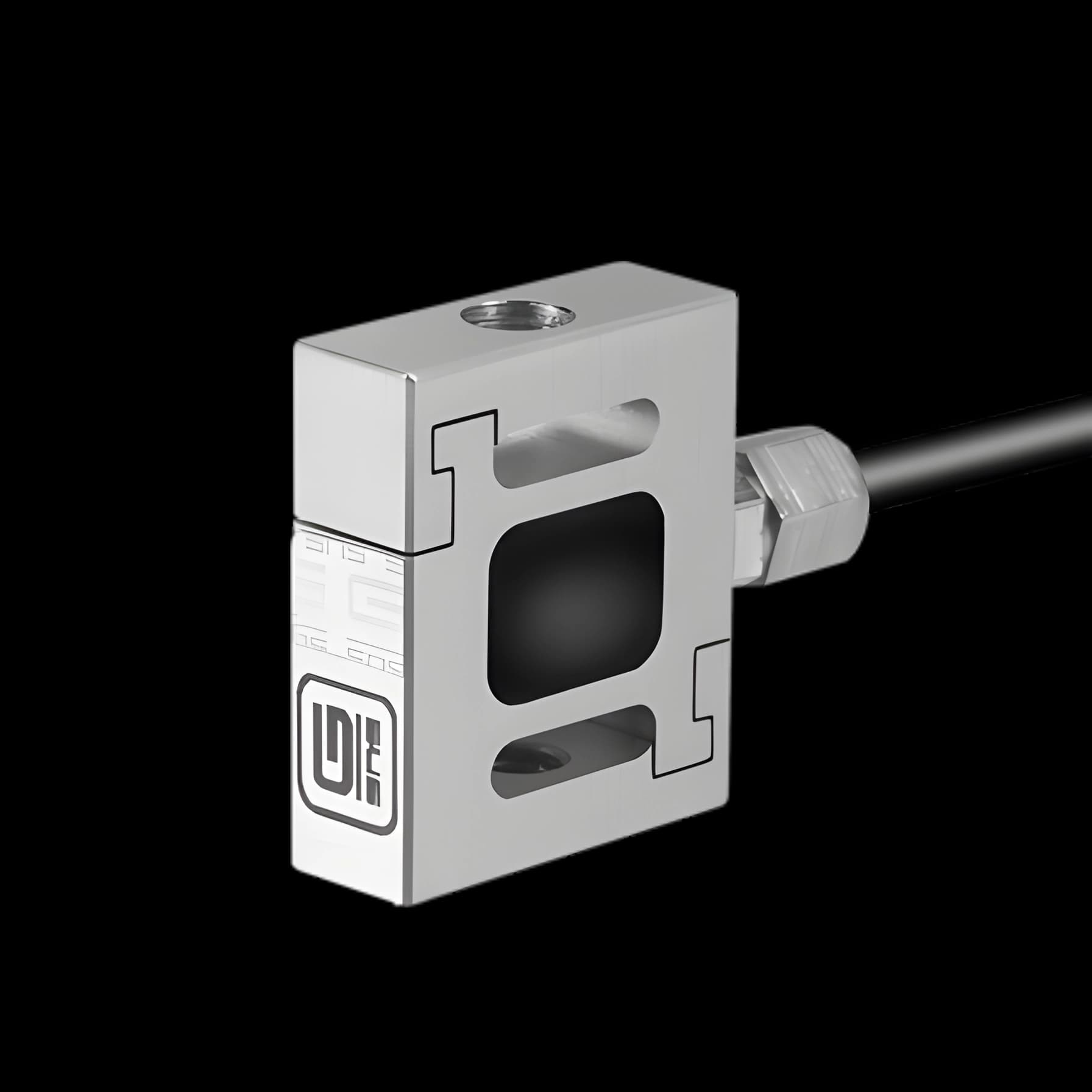

G-SNS FB08 s-beam load cell

G-SNS

FB08

High performance S-beam load cell — light weight, miniature, integrated overload protection, IP66

Shear Beam Weighing Modules

Products

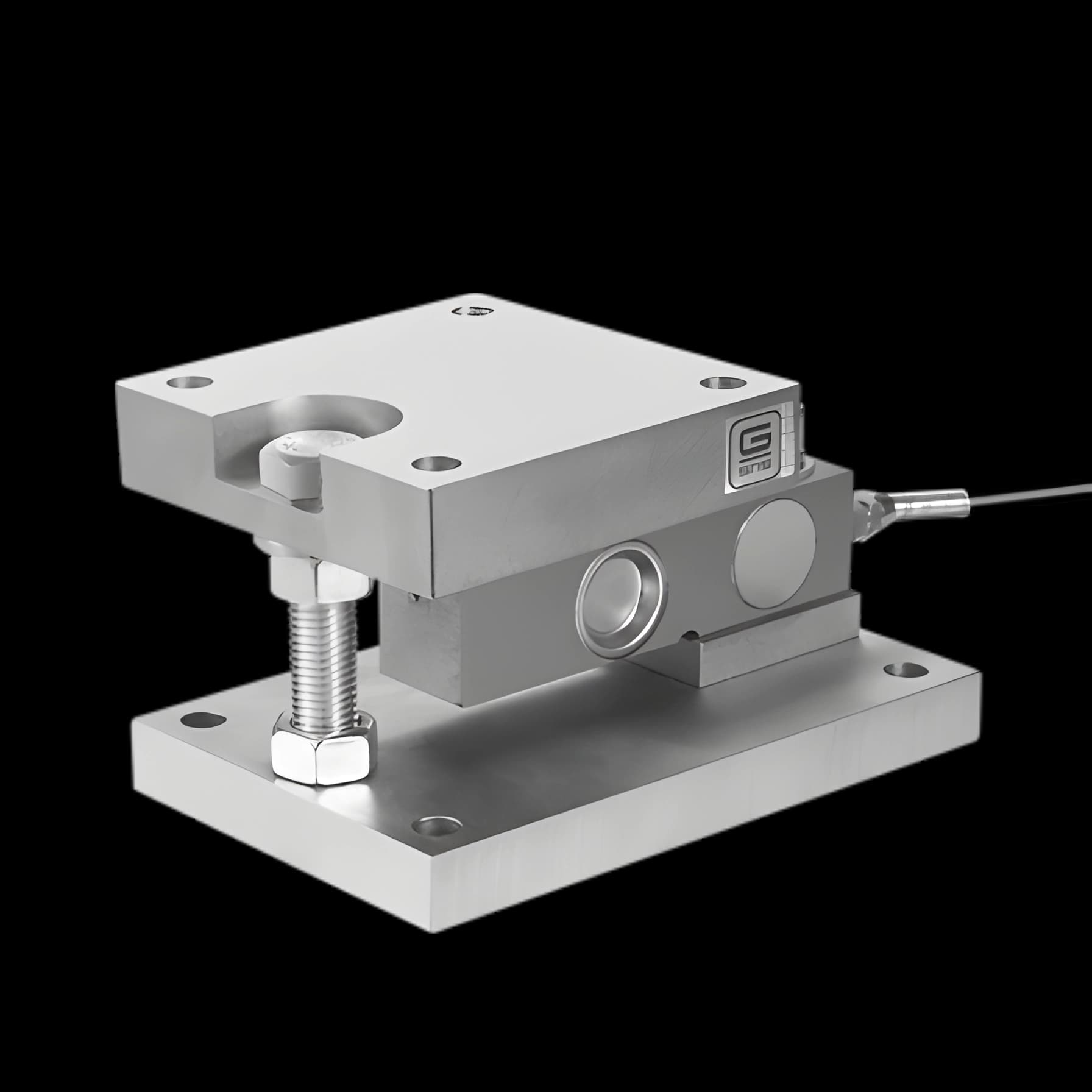

G-SNS M02 shear beam weighing module

G-SNS

M02

Shear beam weighing module — compatible with FC31, alloy or stainless steel, for floor & platform scales

G-SNS M03 bending beam weighing module

G-SNS

M03

Weighing module for bell-type bending beam sensors — compatible with FC33, compact for small industrial scales

Single Point Load Cells

Products

G-SNS FD01 single point load cell

G-SNS

FD01

Single point load cell — high side-load tolerance, anodized aluminium alloy, IP65

G-SNS FD02 single point load cell

G-SNS

FD02

Single point load cell — high accuracy, compact, anodized aluminium alloy, IP65

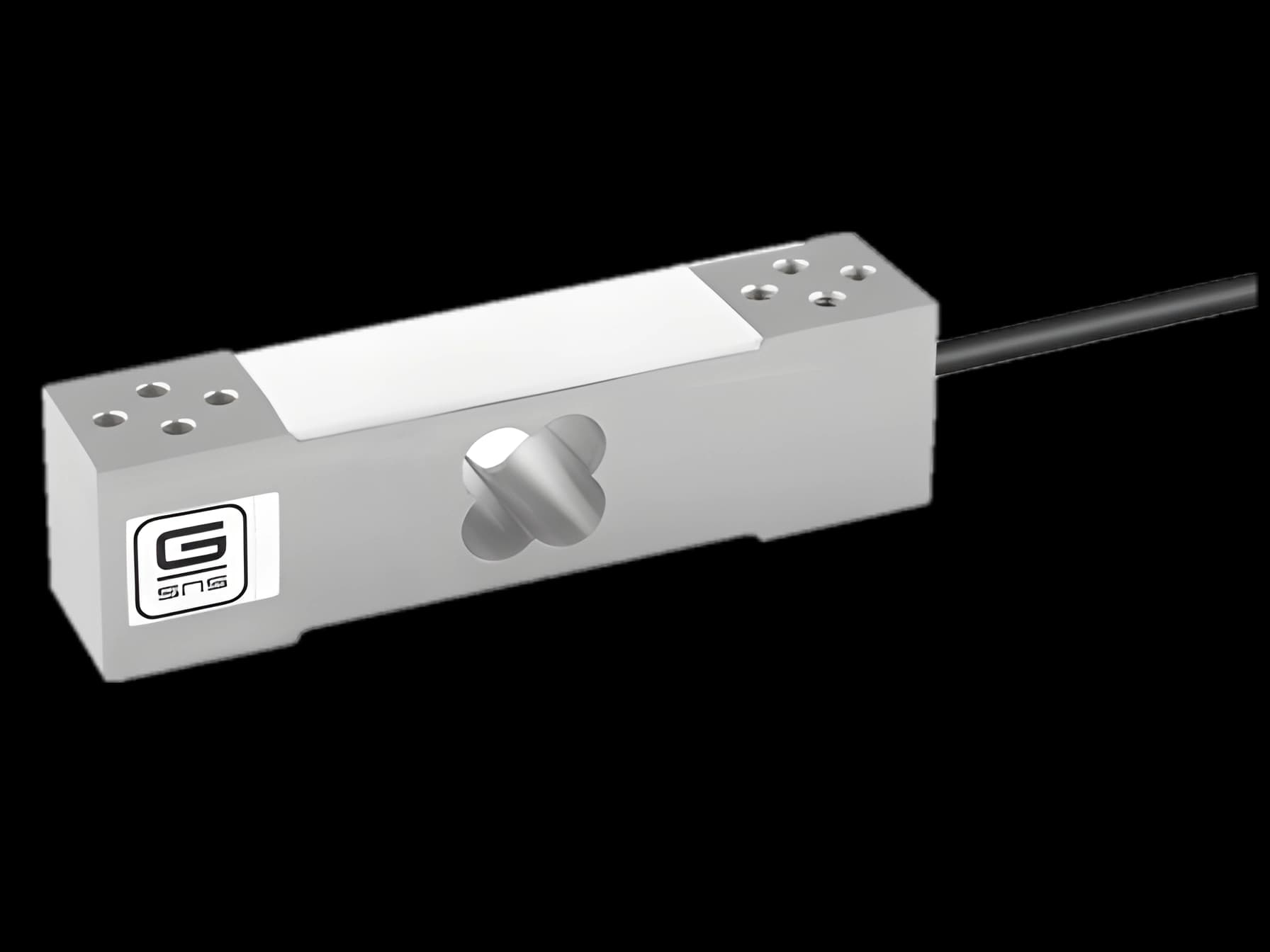

G-SNS FD18 single point load cell

G-SNS

FD18

Single point load cell — high accuracy, anodized aluminium alloy, easy installation with 4 mounting holes, IP65

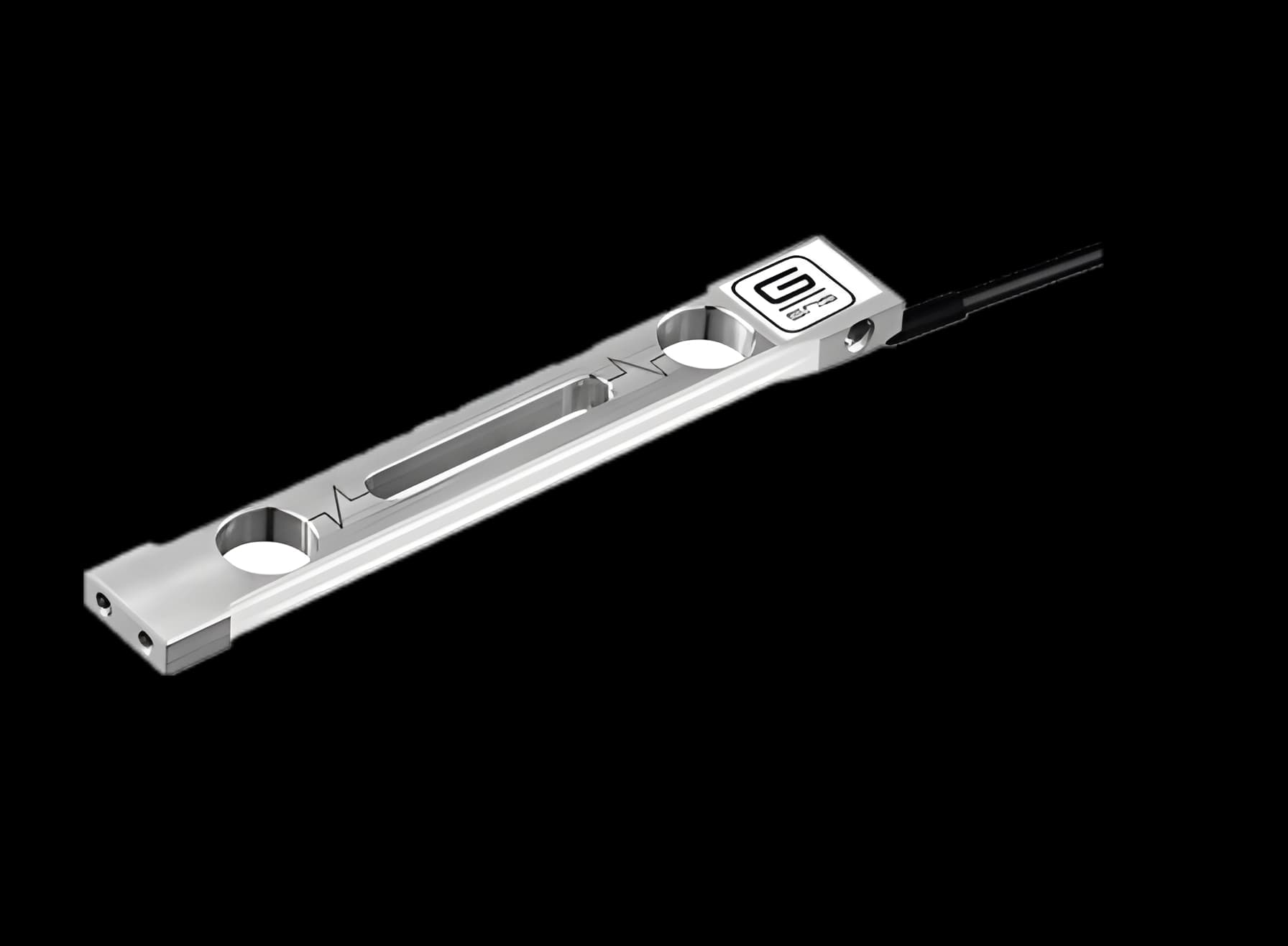

G-SNS FD47 single point load cell

G-SNS

FD47

Single point load cell — exposed elements, light weight, anodized aluminium alloy, IP64

Canister Load Cells

Products

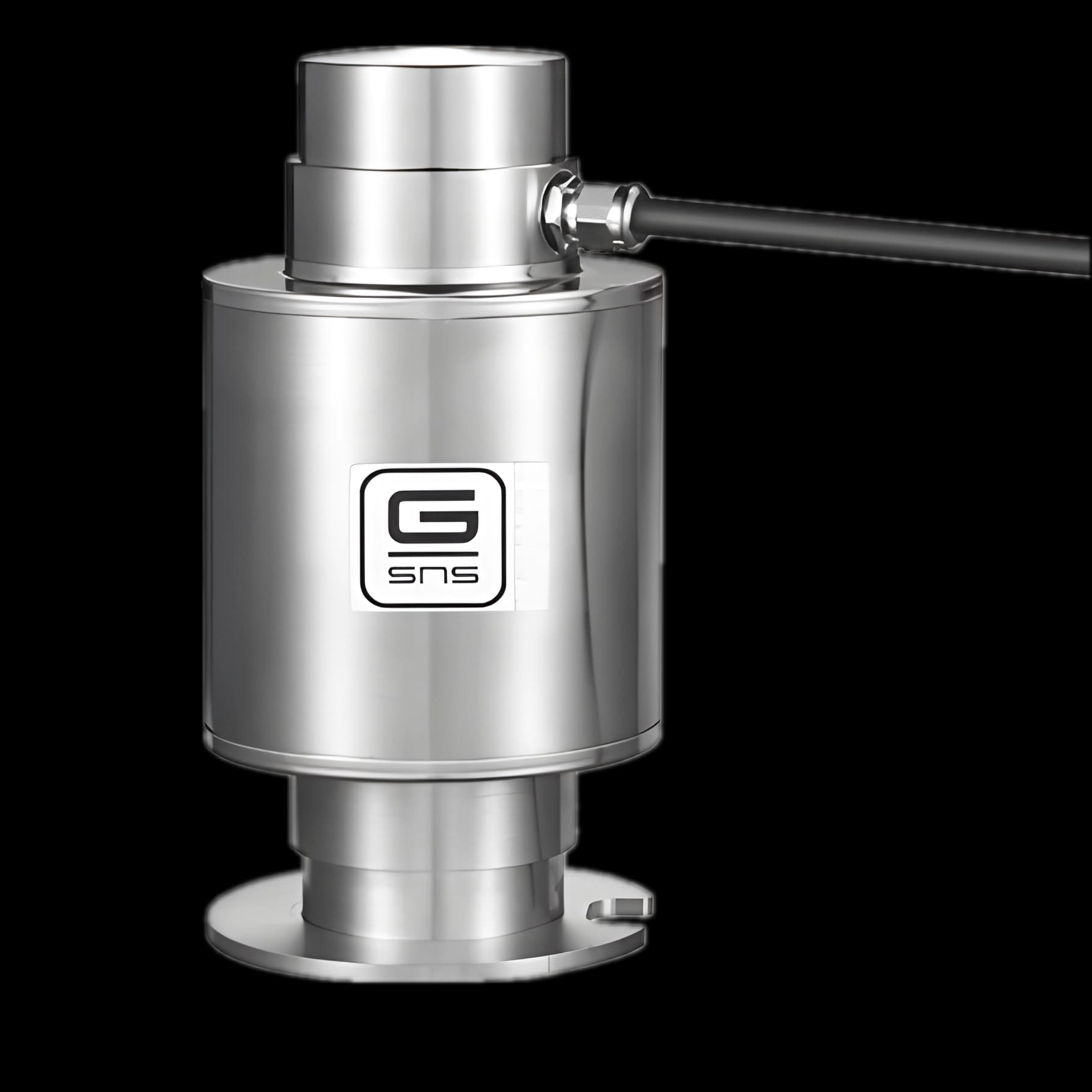

G-SNS FA61 compression load cell

G-SNS

FA61

Compression load cell — dual spherical surface, fully welded, alloy steel, IP67
