Product Description
Description

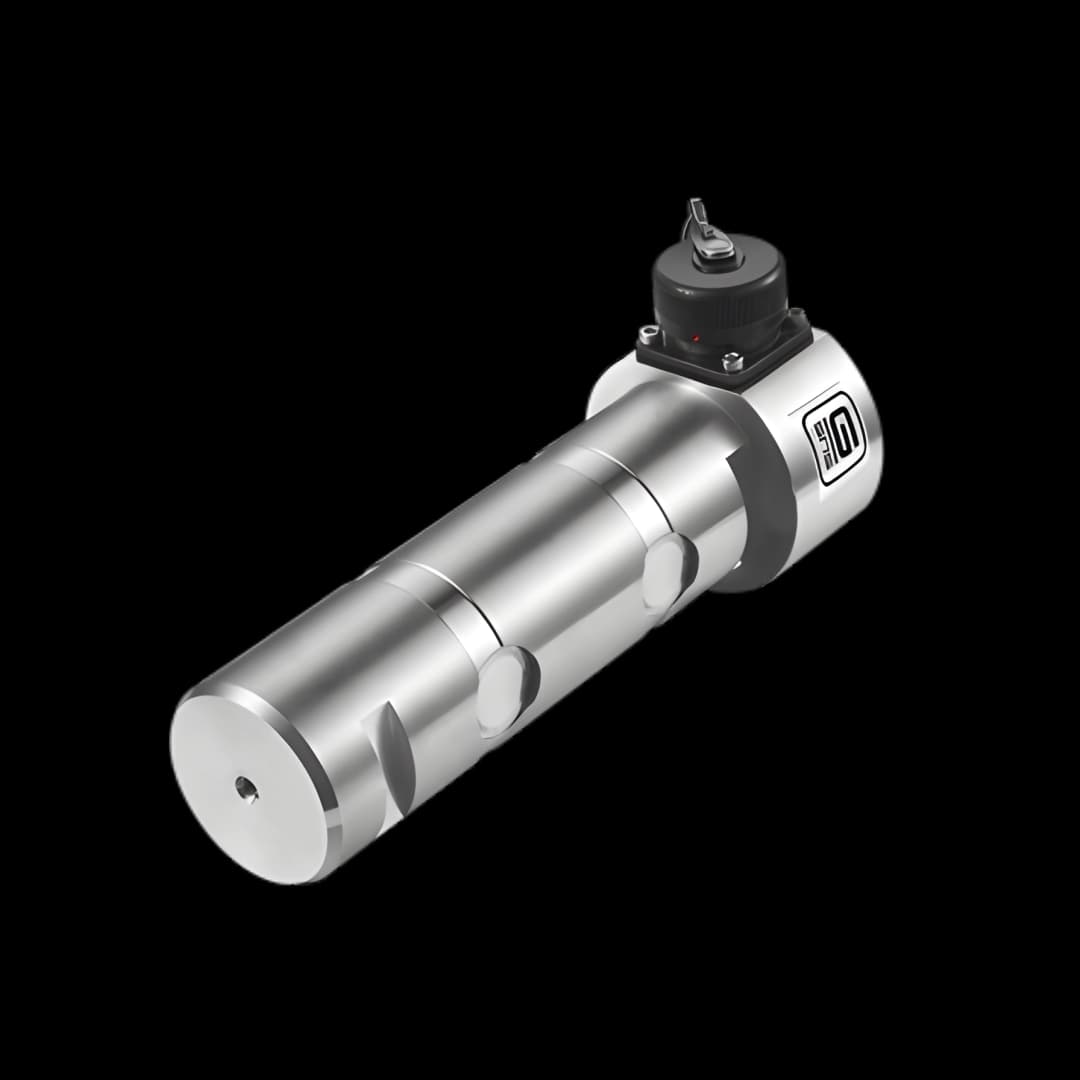

Custom load pin (clevis bolt) designed for direct replacement of existing shafts and structural pins. Shape and size can be customised to suit application requirements. Built for long-term stability in heavy-duty lifting and testing applications including port, terminal and cargo cranes, hoists and safety testing rigs.
- Load sensing clevis bolt
- Long term stability
- Shape and size customised
- Can be used as replacement for existing shafts
- Used for port, terminal and cargo cranes, hoist and lifting equipment, safety testing
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.5% of RO
Electrical
- Rated Output
4-20 mA (three-wire); 0-10 V (option)
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
750 ±30 Ω
- Output Impedance
700 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Connector / Cable Pinout
M12 × 1-4P; PIN1: UB+ / +, PIN2: NC, PIN3: OV / S- / S-, PIN4: S+ / +
Mechanical
- Weight
According to design
- Safe Overload
150% of RO
- Ultimate Overload
300% of RO
- Material
Stainless Steel
- Connector
M12 × 1-4P
- IP Rating
IP67
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.2% of RO / 10 °C
- Temperature Effect on Zero
±0.2% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
