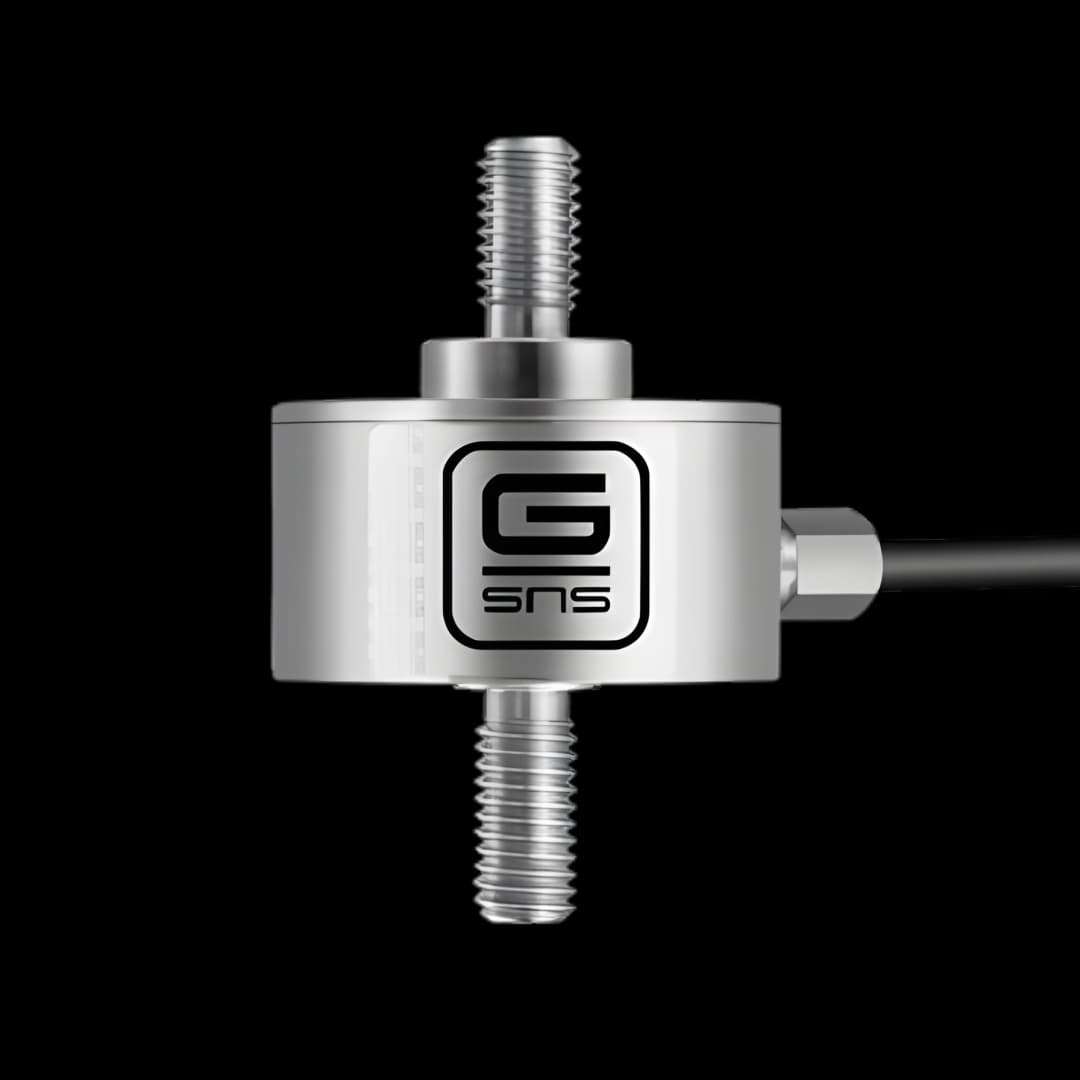

G-SNS
FB12
In-Line Load CellMiniature in-line tension and compression load cell — minimal mounting clearance, stainless steel, IP65
G-SNS
FB12
In-Line Load CellMiniature in-line tension and compression load cell — minimal mounting clearance, stainless steel, IP65
Description
Compact in-line load cell designed for both tension and compression with minimal mounting clearance. Ideal for miniature tension and pressure test equipment where space is limited and moderate accuracy is required.
- For in-line use in both tension and compression
- Minimal mounting clearance
- Mainly used for miniature tension and pressure test equipment
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.25% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±10% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
700 ±30 Ω
- Output Impedance
700 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
120% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø3 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.2% of RO / 10 °C
- Temperature Effect on Zero
±0.2% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
