Product Description
FB01

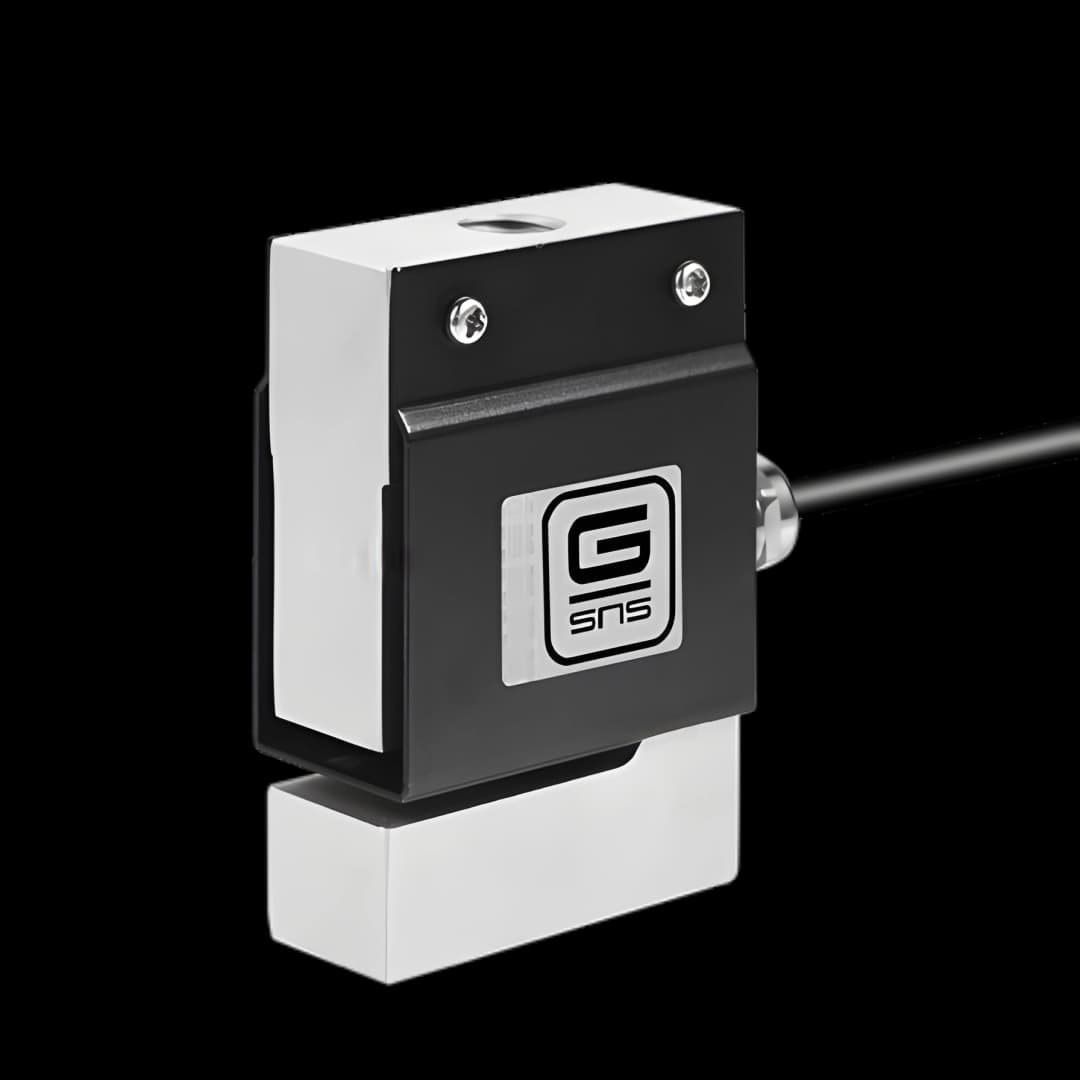

S-Beam Load CellIn-line tension and compression load cell — compact, robust cable strain relief, suitable for small-range test instruments
FB01
S-Beam Load CellIn-line tension and compression load cell — compact, robust cable strain relief, suitable for small-range test instruments
Description
In-line tension and compression load cell designed for use in both tensile (pull) and compressive (push) applications. Compact and robust, it features durable cable strain relief and is intended for small-range tension and compression testing instruments.
- For in-line use in both tension and compression
- Notable nonlinearity
- Robust cable strain relief
- Mainly used for small range of tension and compression testing instruments
Performance
- Non-Linearity (Alloy Steel)
±0.03% F.S.
- Non-Linearity (Stainless Steel)
±0.05% of RO
- Hysteresis (Alloy Steel)
±0.03% F.S.
- Hysteresis (Stainless Steel)
±0.05% of RO
- Repeatability (Alloy Steel)
±0.03% F.S.
- Repeatability (Stainless Steel)
±0.05% of RO
- Creep (30 min) (Alloy Steel)
±0.03% F.S.
- Creep (30 min) (Stainless Steel)
±0.05% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±5% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
410 ±30 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
See table above
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
See table above (Alloy Steel / Stainless Steel)
- Cable Size
3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.03% of RO / 10 °C
- Temperature Effect on Zero
±0.03% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
