Product Description
Description

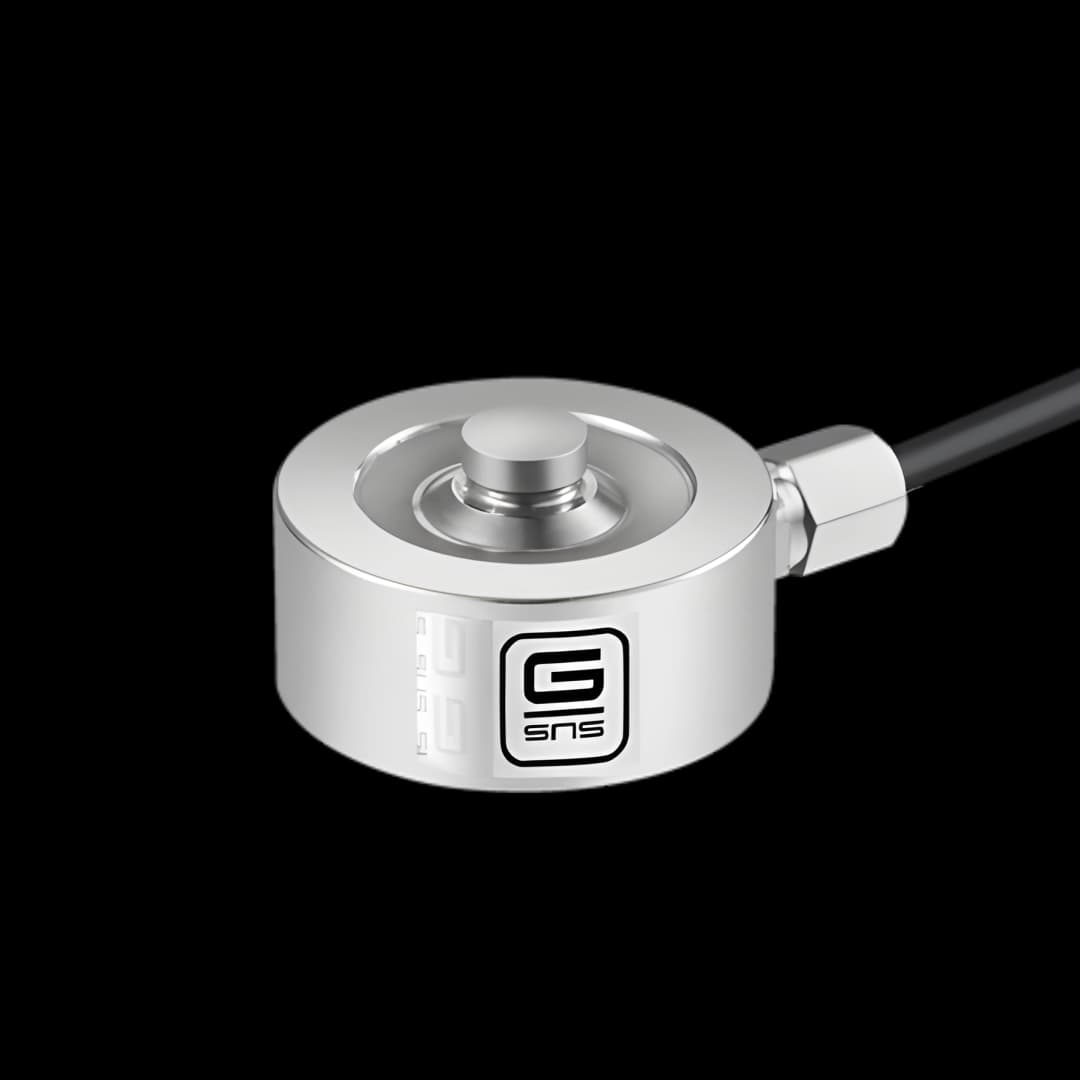

Compact compression load cell designed for force measurement in limited spaces and automation applications. Features ultra low deflection, robust strain relief and is supplied in stainless steel for durability.
- Compression Type
- Ultra Low Deflection
- Robust Strain Relief
- Suitable for Force Measurement in Limited Spaces
- Various Applications such as Automation Industry
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.1% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.5 ±10% mV/V
- Recommended Excitation
5 VDC
- Maximum Excitation
10 VDC
- Input Impedance
350 ± 10 Ω
- Output Impedance
350 ± 5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø2 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
