Product Description
Description

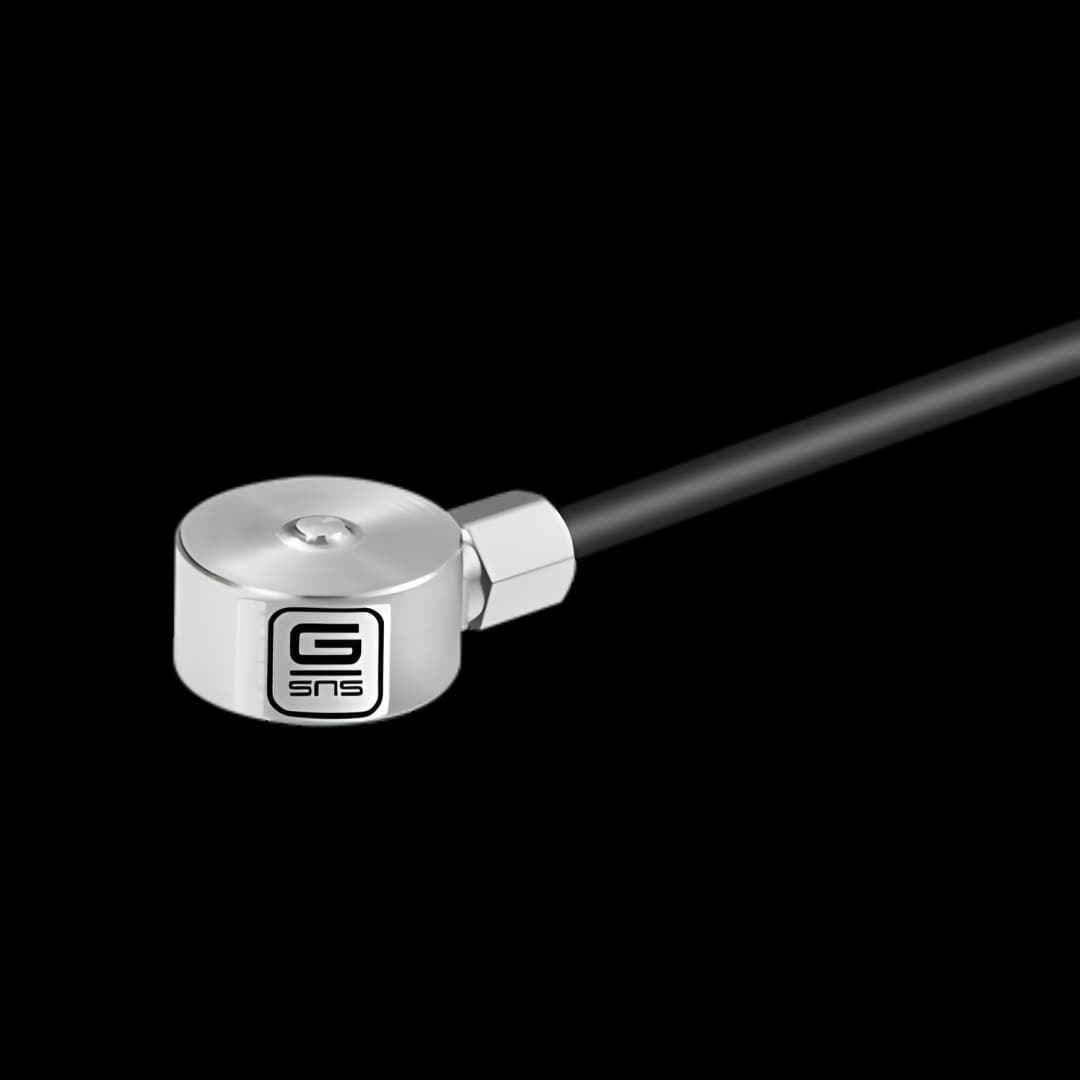

Compact compression load cell suitable for force measurement in limited spaces and various automation applications. Features include low deflection, ultra fast response, robust strain relief and adjustable resistance for zero adjustment.
- Compression Type
- Low Deflection
- Ultra Fast Response
- Robust Strain Relief
- Adjustable Resistance For Zero Adjustment
- Suitable For Force Measurement In Limited Spaces
- Various Applications Such As Automation Industry
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.1% of RO
Electrical
- Rated Output
1.5 ±10% mV/V
- Recommended Excitation
5 VDC
- Maximum Excitation
7 VDC
- Input Impedance
350 ± 10 Ω
- Output Impedance
350 ± 5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
120% of RO
- Ultimate Overload
150% of RO
- Material
Stainless Steel
- Cable Size
Ø2 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
