Product Description
Description

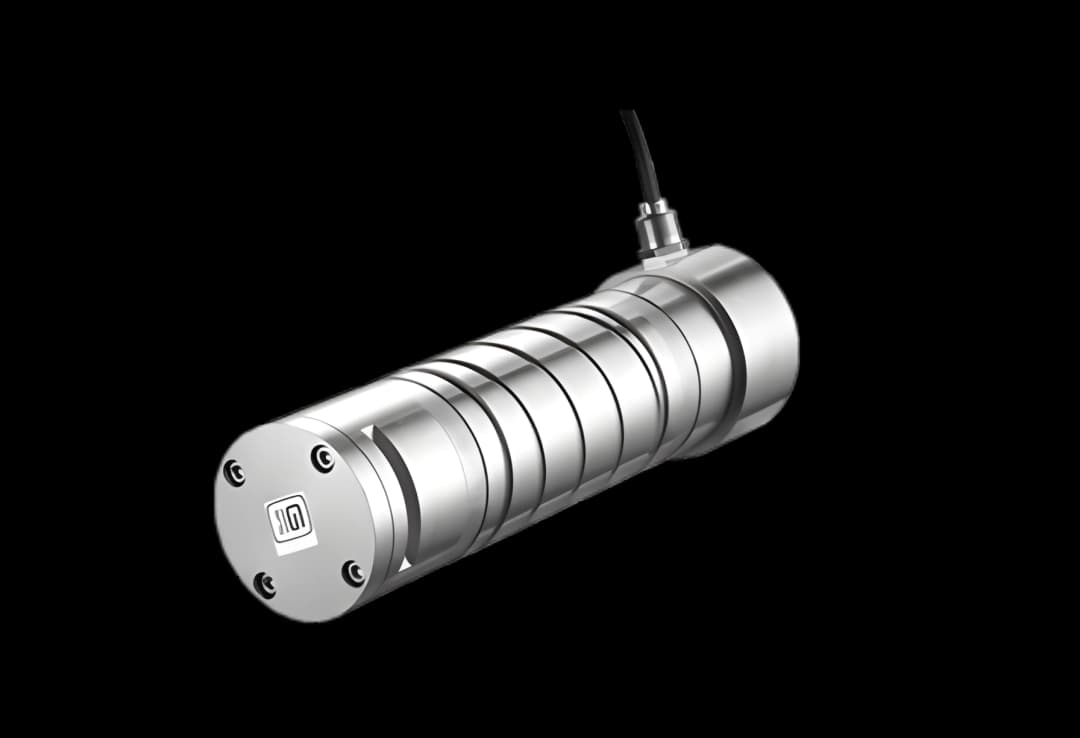

Custom load pin (clevis bolt) designed as a direct replacement for existing shafts and structural pins. Shape and size are customised to suit tower crane and heavy lifting applications. Built for long-term stability in hoist, lifting equipment and safety testing environments.
- Load sensing clevis bolt
- Long term stability
- Shape and size customised
- Can be used as replacement for existing shafts
- Used for tower cranes, hoists, lifting equipment and safety testing applications
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.5% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
4-20 mA (three-wire); 0-10 V (option)
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
750 ±30 Ω
- Output Impedance
700 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Connector / Cable Pinout
PIN1: UB+ / Power+; PIN2: NC; PIN3: 0V / S- (Power/Signal-); PIN4: S+ / Signal+
Mechanical
- Weight
According to design
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø6 × 3000 mm
- IP Rating
IP67
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.2% of RO / 10 °C
- Temperature Effect on Zero
±0.2% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
