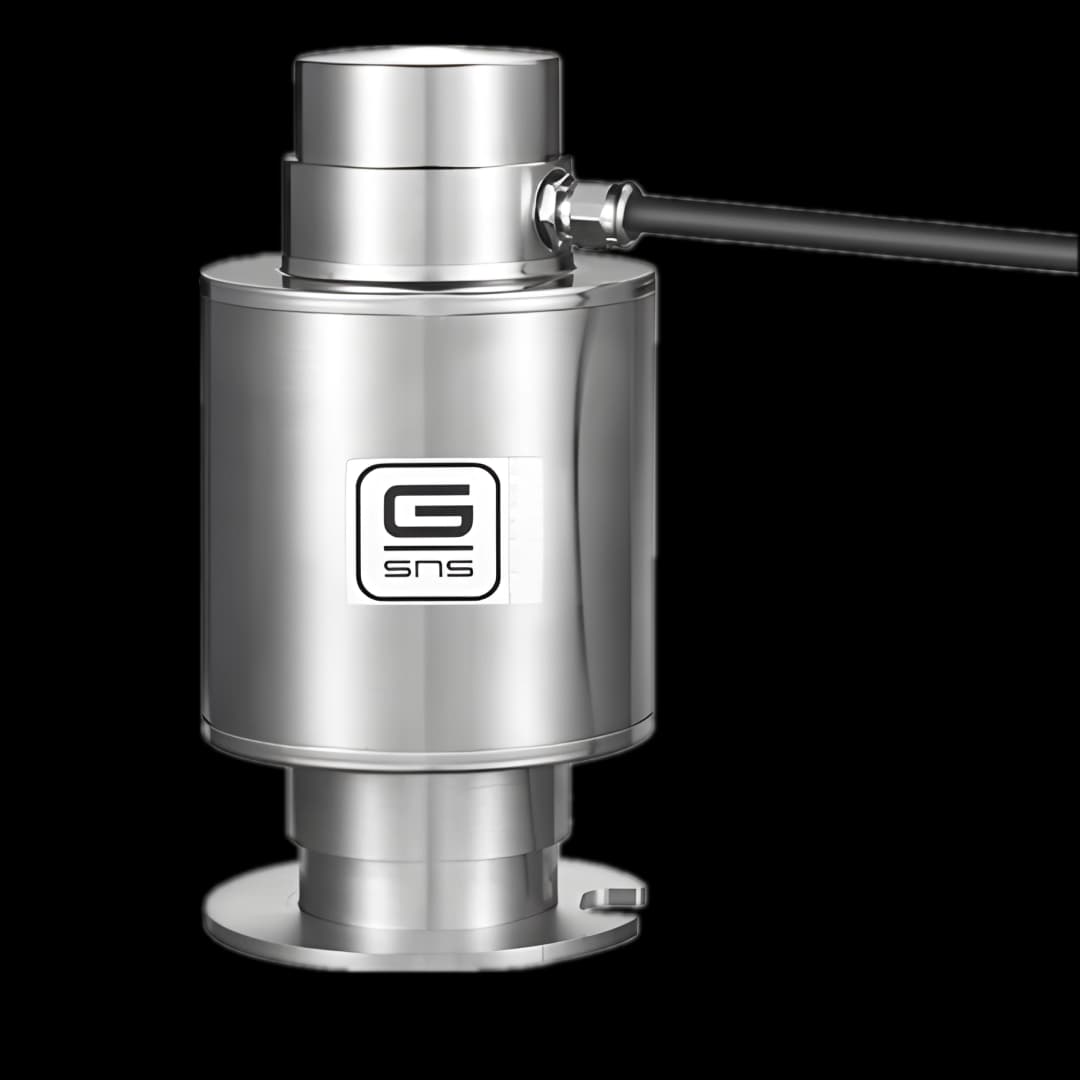

FA61
Canister Load CellCompression load cell — dual spherical surface, fully welded, alloy steel, IP67
FA61
Canister Load CellCompression load cell — dual spherical surface, fully welded, alloy steel, IP67
Description
Compression load cell with dual spherical surface and fully welded construction. Easy to install and suitable for truck & ground scales, tanks and other industrial on-board weighing systems. Designed for heavy-duty industrial applications with high overload protection and excellent stability.
- Compression Type
- Dual Spherical Surface
- Easy To Install
- Fully Welded Construction
- Mainly Used For Truck & Ground Scale, Tank and Other Industrial On Board Weighing Systems
Performance
- Non-Linearity
±0.03% of RO
- Hysteresis
±0.03% of RO
- Repeatability
±0.03% of RO
- Creep (30 min)
±0.03% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±0.2 mV/V
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
400 ±20 Ω
- Output Impedance
352 ±3 Ω
- Insulation
≥ 2000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
4.3 kg
- Safe Overload
150% of RO
- Ultimate Overload
250% of RO
- Material
Alloy Steel
- Cable Size
Ø5 × 15000 mm
- IP Rating
IP67
Temperature
- Operating Temperature
-20 to 60 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.02% of RO / 10 °C
- Temperature Effect on Zero
±0.02% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
