Product Description

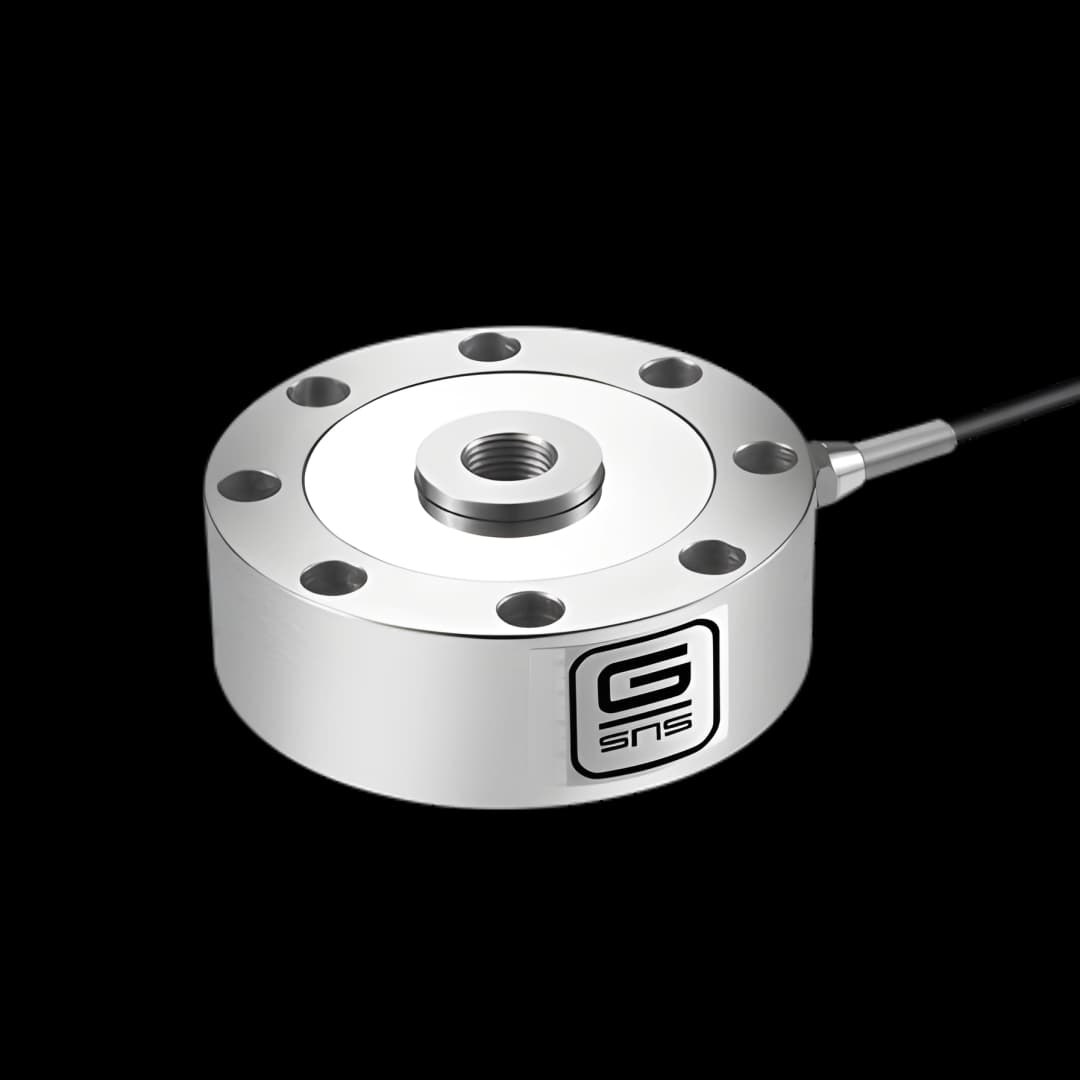

FB22
Pancake Load CellLow profile pancake load cell — available in tension and compression, alloy steel, IP66
FB22
Pancake Load CellLow profile pancake load cell — available in tension and compression, alloy steel, IP66
Description
Low profile pancake load cell available in both tension and compression. Designed for applications that require minimal height and high resistance to off-axis loading. Commonly used for scales and other measuring devices, offering reliable performance in compact installations.
- Available in both tension and compression
- Low profile design
- Highly resistant to off-axis loading
- Mainly used for scales and other measuring devices
Performance
- Non-Linearity
±0.05% of RO
- Hysteresis
±0.05% of RO
- Repeatability
±0.03% of RO
- Creep (30 min)
±0.05% of RO
- Zero Balance
±1% of RO
Electrical
- Rated Output
2.0 ±1% mV/V
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
750 ±10 Ω
- Output Impedance
700 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
See table above
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Alloy Steel
- Cable Size
Ø5 × 5000 mm
- IP Rating
IP66
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.03% of RO / 10 °C
- Temperature Effect on Zero
±0.03% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
