Product Description
FD47

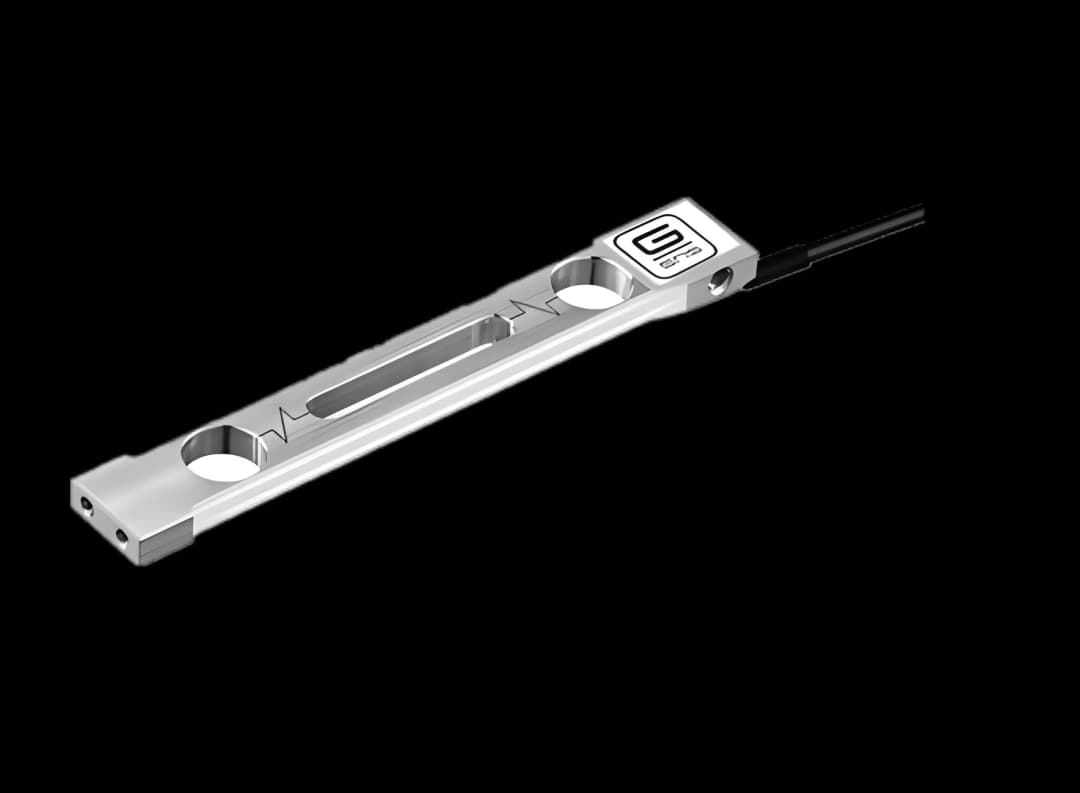

Single Point Load CellSingle point load cell — exposed elements, light weight, anodized aluminium alloy, IP64
FD47
Single Point Load CellSingle point load cell — exposed elements, light weight, anodized aluminium alloy, IP64
Description
Single point load cell with exposed element design for ultra-small weighing and force measurement. Very light and compact with surface anodizing for durability and usability in precision miniature applications such as ultra-small scales and measurement devices.
- Single point load cell
- Exposed elements
- Light weight and compact
- Surface anodized
- Suitable for ultra-small weighing occasions
Performance
- Non-Linearity
±0.01% of RO
- Hysteresis
±0.01% of RO
- Repeatability
±0.01% of RO
- Creep (30 min)
±0.05% of RO
- Zero Balance
±0.04 mV/V
Electrical
- Rated Output
0.7 ±0.1 mV/V
- Recommended Excitation
5 VDC
- Maximum Excitation
10 VDC
- Input Impedance
1050 ±20 Ω
- Output Impedance
1000 ±10 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.05 kg
- Safe Overload
500% of RO
- Ultimate Overload
1000% of RO
- Material
Aluminium Alloy (surface anodized)
- Cable Size
Ø0.7 × 500 mm
- IP Rating
IP64
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.02% of RO / 10 °C
- Temperature Effect on Zero
±0.02% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
