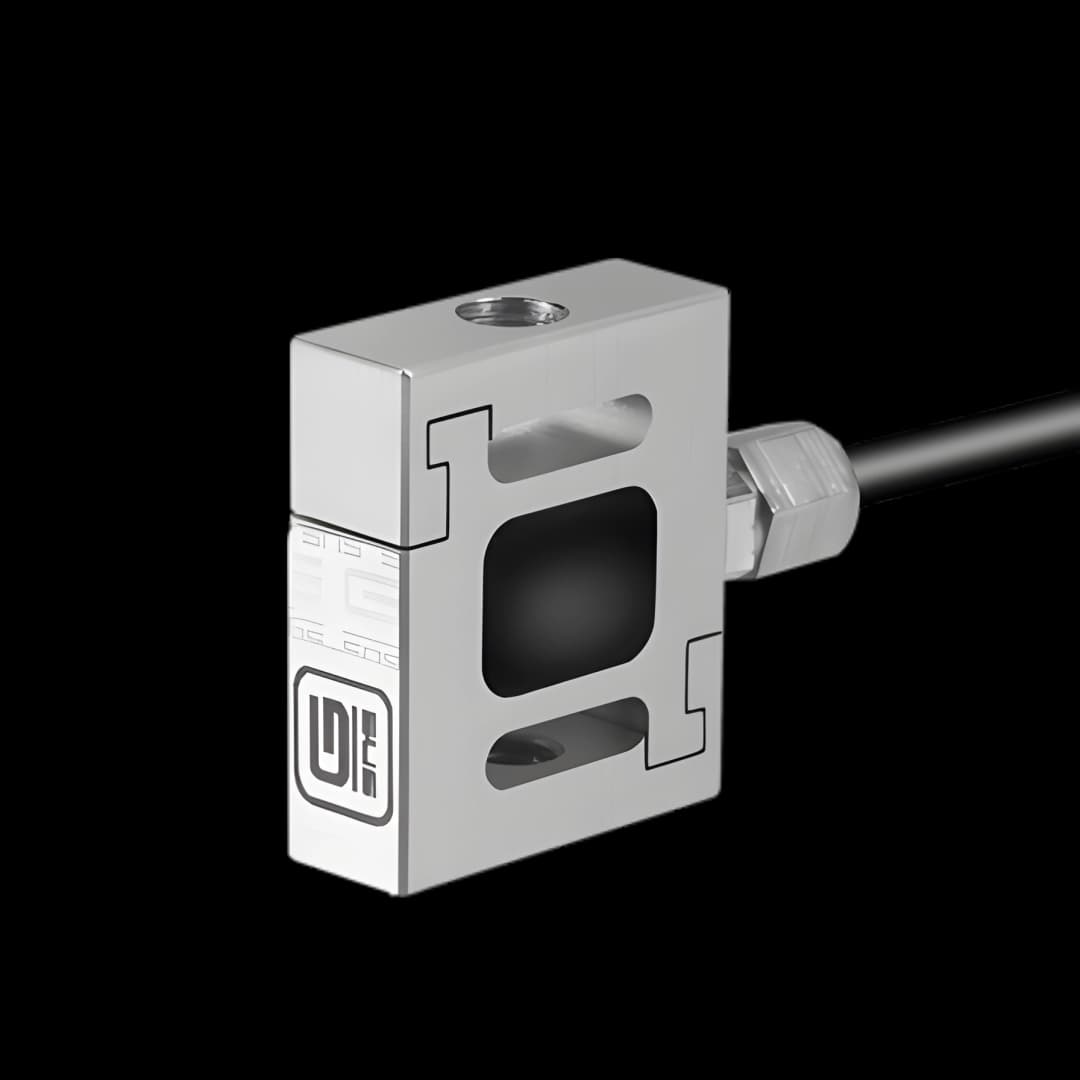

S-Beam Load CellHigh performance S-beam load cell — light weight, miniature, integrated overload protection, IP66
FB08
S-Beam Load CellHigh performance S-beam load cell — light weight, miniature, integrated overload protection, IP66
Description
High performance S-beam load cell designed for in-line use in both tension and compression. Lightweight and miniature with integrated overload protection and resistance to shock & vibration. Ideal for pull/push dynamometers and industrial measuring systems where compact, robust sensors are required.
- For in-line use in both tension and compression
- High performance with notable non-repeatability
- Light weight, miniature size
- Integrated overload protection
- Shock and vibration resistant
- Adjustable resistance for zero adjustment
- Mainly used for tension and compression testing instruments
Performance
- Non-Linearity
±0.15% of RO
- Hysteresis
±0.1% of RO
- Repeatability
±0.1% of RO
- Creep (30 min)
±0.1% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.5 ±10% mV/V (5 N); 2.0 ±10% mV/V (≥10 N)
- Recommended Excitation
5 VDC
- Maximum Excitation
10 VDC
- Input Impedance
380 ±30 Ω
- Output Impedance
380 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
150% of RO
- Ultimate Overload
300% of RO
- Material
Stainless Steel
- Cable Size
3000 mm
- IP Rating
IP66
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
