Product Description

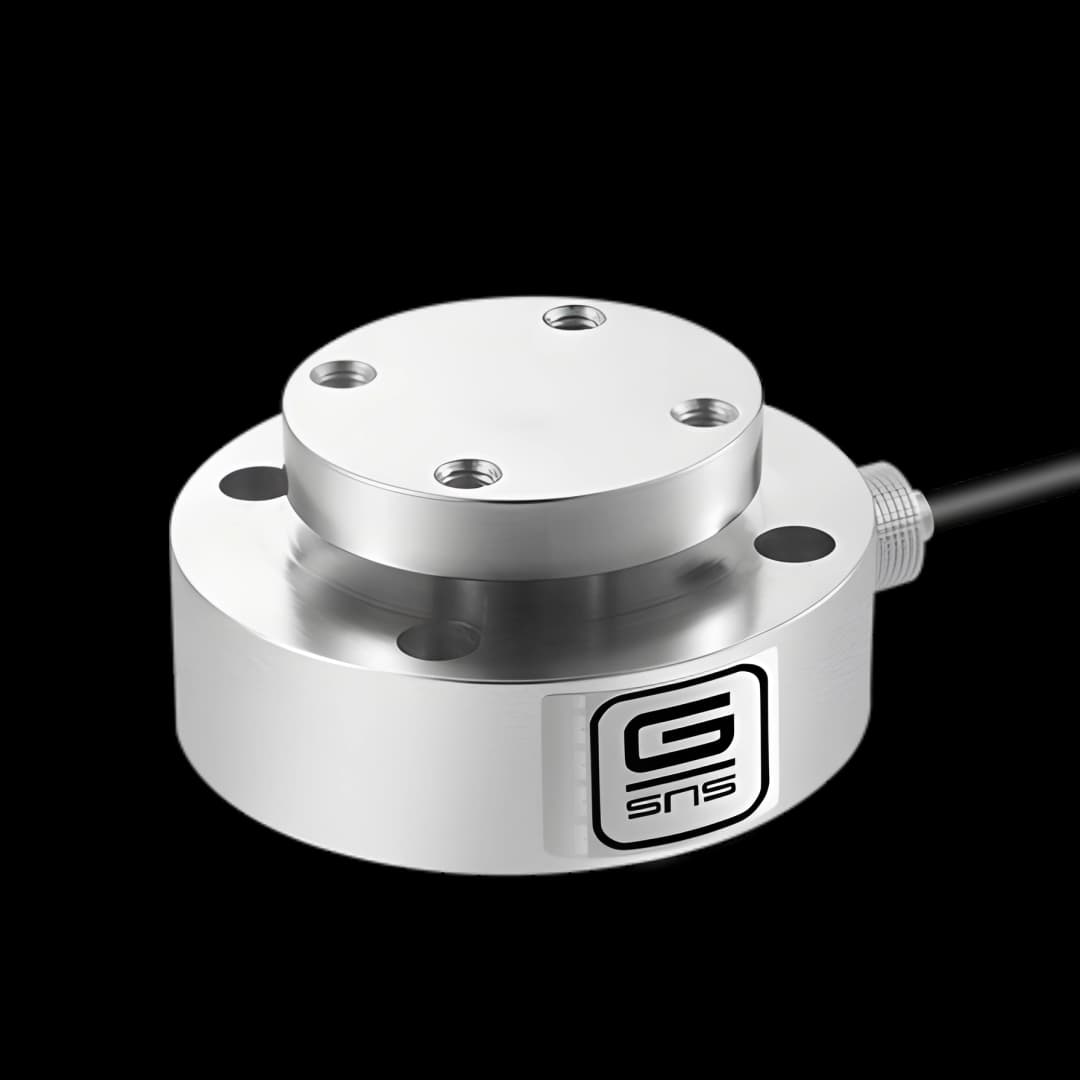

FA70
Compression Load CellLow-height compression load cell — plug joint design, flanged installation, stainless steel, IP67
FA70
Compression Load CellLow-height compression load cell — plug joint design, flanged installation, stainless steel, IP67
Description
Low-height compression load cell with plug-joint design and upper/lower flange installation. Engineered for harsh environments and pressure-mounting or pressure-holding equipment where equal pressure force distribution is required. Commonly used in industrial pressure-mounting machinery, tank and vessel applications, and on-board weighing systems.
- Compression Type
- Low Height
- Plug Joint Design
- Upper and Lower Flange Installation
- Suitable For Various Harsh Environments
- Used For Pressure-Mounting Machinery, Pressure-Holding Equipment, Equal Pressure Force Situations
Performance
- Zero Balance
±2.0% of RO
- Total Error
±0.2% of RO
Electrical
- Rated Output
2.0 ±10% mV/V
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Insulation
≥ 2000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
See table above
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø5 × 3000 mm
- IP Rating
IP67
Temperature
- Operating Temperature
-20 to 60 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.05% of RO / 10 °C
- Temperature Effect on Zero
±0.05% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
