Product Description
G-SNS
FB73

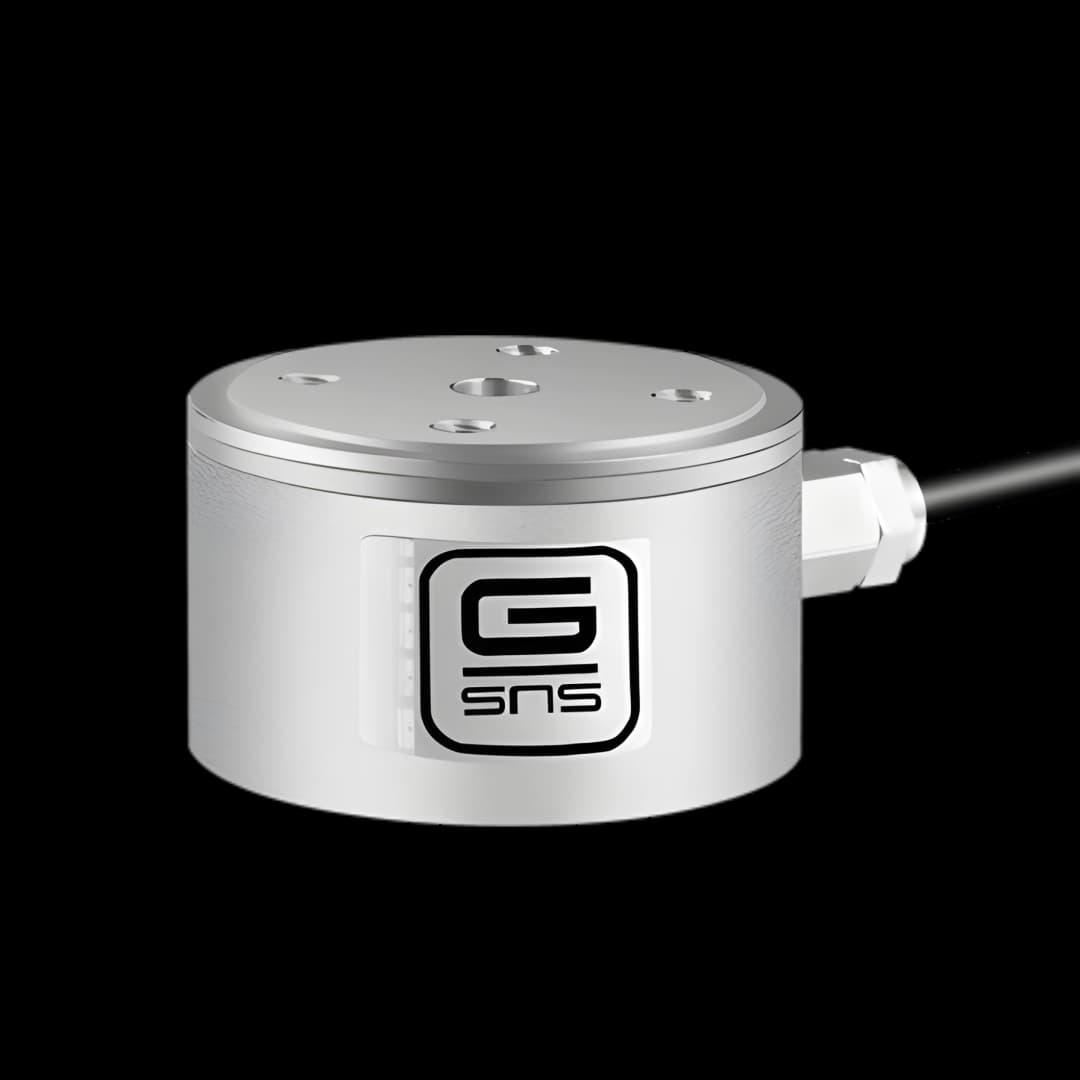

Column Load CellColumn load cell — low deflection, fast response, compact, stainless steel, IP54
G-SNS
FB73
Column Load CellColumn load cell — low deflection, fast response, compact, stainless steel, IP54
Description
Compact column load cell offering low deflection and fast response with superior natural frequency. Small profile makes it suitable for tight spaces and tension/compression situations in various pressure-holding equipment and industrial systems.
- For in-line use in both tension and compression
- Low deflection
- Fast response time
- Superior natural frequency
- Small profile for tight spaces
- Suitable for tension and compression situations of various pressure-holding equipment
Performance
- Non-Linearity
±0.1% of RO
- Hysteresis
±0.1% of RO
- Repeatability
±0.1% of RO
- Creep (30 min)
±0.05% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±1% mV/V
- Recommended Excitation
5 to 10 VDC
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.2 kg
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø3 × 3000 mm
- IP Rating
IP54
Temperature
- Operating Temperature
-30 to 70 °C
- Temperature Effect on Output
±0.5% of RO / 10 °C
- Temperature Effect on Zero
±0.5% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
