Product Description
FD02

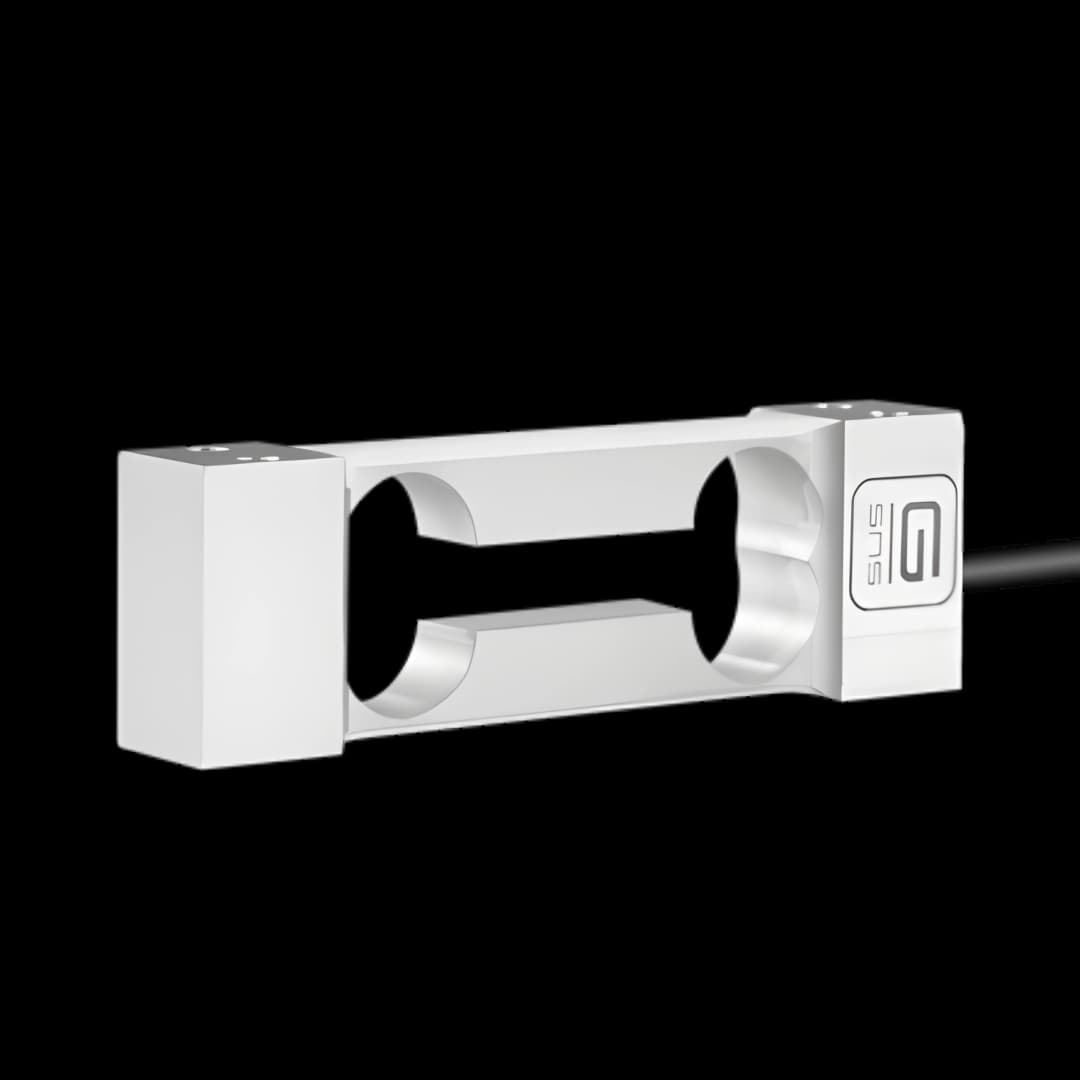

Single Point Load CellSingle point load cell — high accuracy, compact, anodized aluminium alloy, IP65
FD02
Single Point Load CellSingle point load cell — high accuracy, compact, anodized aluminium alloy, IP65
Description
Single point load cell engineered for high accuracy and high side-load tolerance. Compact, lightweight and easy to install with surface anodizing for durability. Ideal for pricing scales, counting scales and other low-profile electronic scale applications.
- Single point load cell
- High accuracy, high side-load tolerance
- Compact structure; very light and easy to install
- Surface anodized
- Mainly used for pricing scales, counting scales
Performance
- Non-Linearity
±0.02% of RO
- Hysteresis
±0.02% of RO
- Repeatability
±0.02% of RO
- Creep (30 min)
±0.02% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
1.0 ±10% mV/V (0.3-0.5 Kg); 2.0 ±10% mV/V (1-10 Kg)
- Recommended Excitation
10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
410 ±10 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 2000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Aluminium Alloy (surface anodized)
- Platform Size
200 × 200 mm
- Cable Size
Ø3 × 450 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 60 °C
- Compensated Temperature Range
-10 to 40 °C
- Temperature Effect on Output
±0.025% of RO / 10 °C
- Temperature Effect on Zero
±0.025% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
