Product Description
FB07

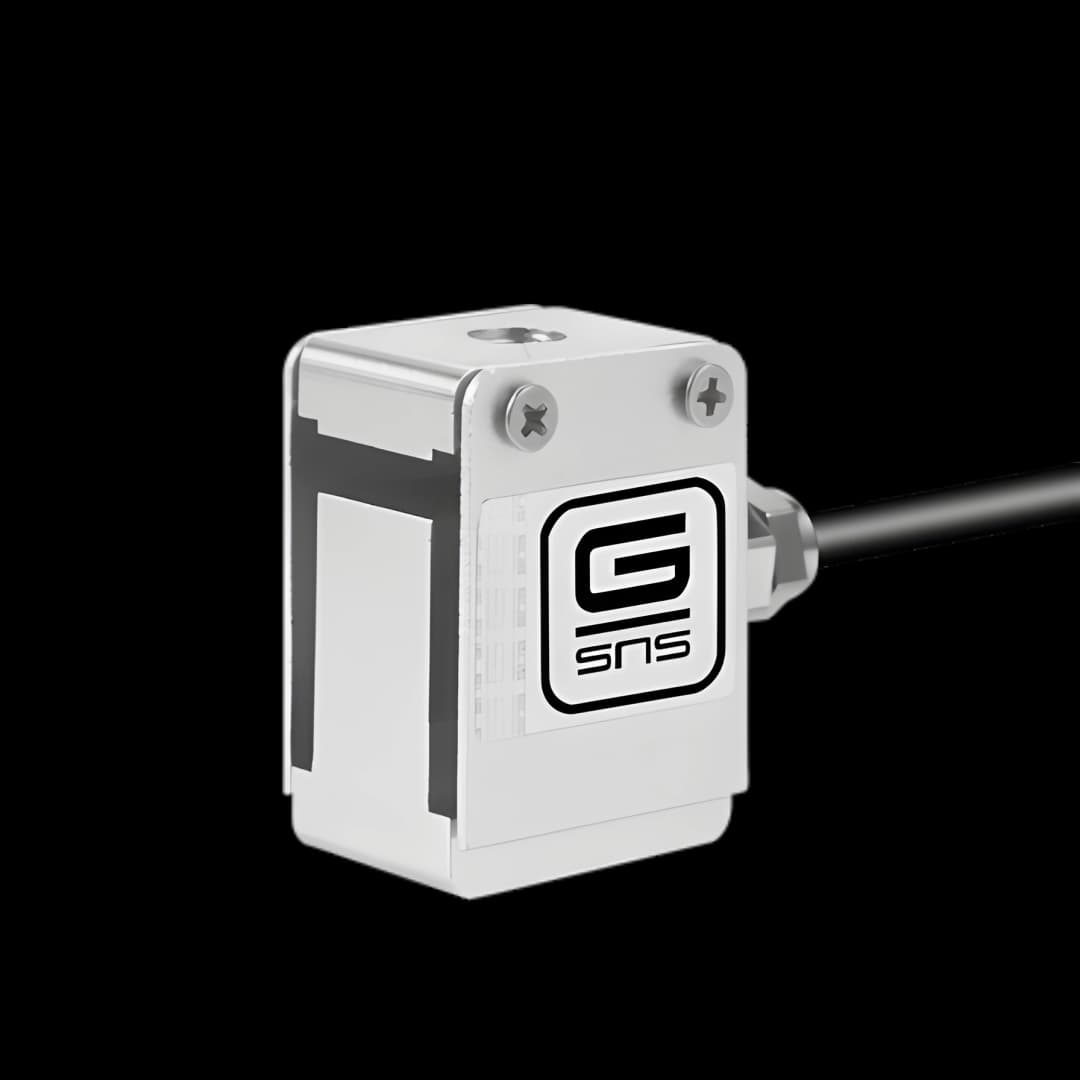

S-Beam Load CellS-beam load cell — light weight, miniature, for in-line tension and compression applications
FB07
S-Beam Load CellS-beam load cell — light weight, miniature, for in-line tension and compression applications
Description
Lightweight S-beam load cell for in-line use in both tension and compression. Designed for pull and push dynamometers and industrial measuring systems where a compact, robust and miniature sensor is required. Provides reliable performance with strong cable strain relief.
- For in-line use in both tension and compression
- Notable nonlinearity
- Light weight, miniature size
- Mainly used for pull and push dynamometers and industrial measuring systems
Performance
- Non-Linearity
±0.05% of RO
- Hysteresis
±0.05% of RO
- Repeatability
±0.05% of RO
- Creep (30 min)
±0.05% of RO
- Zero Balance
±2% of RO
Electrical
- Rated Output
2.0 ±10% mV/V
- Recommended Excitation
5 VDC
- Maximum Excitation
10 VDC
- Input Impedance (Aluminium Alloy)
410 ±10 Ω
- Input Impedance (Alloy Steel)
385 ±10 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
0.1 kg
- Safe Overload
120% of RO
- Ultimate Overload
200% of RO
- Material
See table above
- Cable Size
Ø3 × 3000 mm
- IP Rating
IP65
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.025% of RO / 10 °C
- Temperature Effect on Zero
±0.025% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
