Product Description
Description

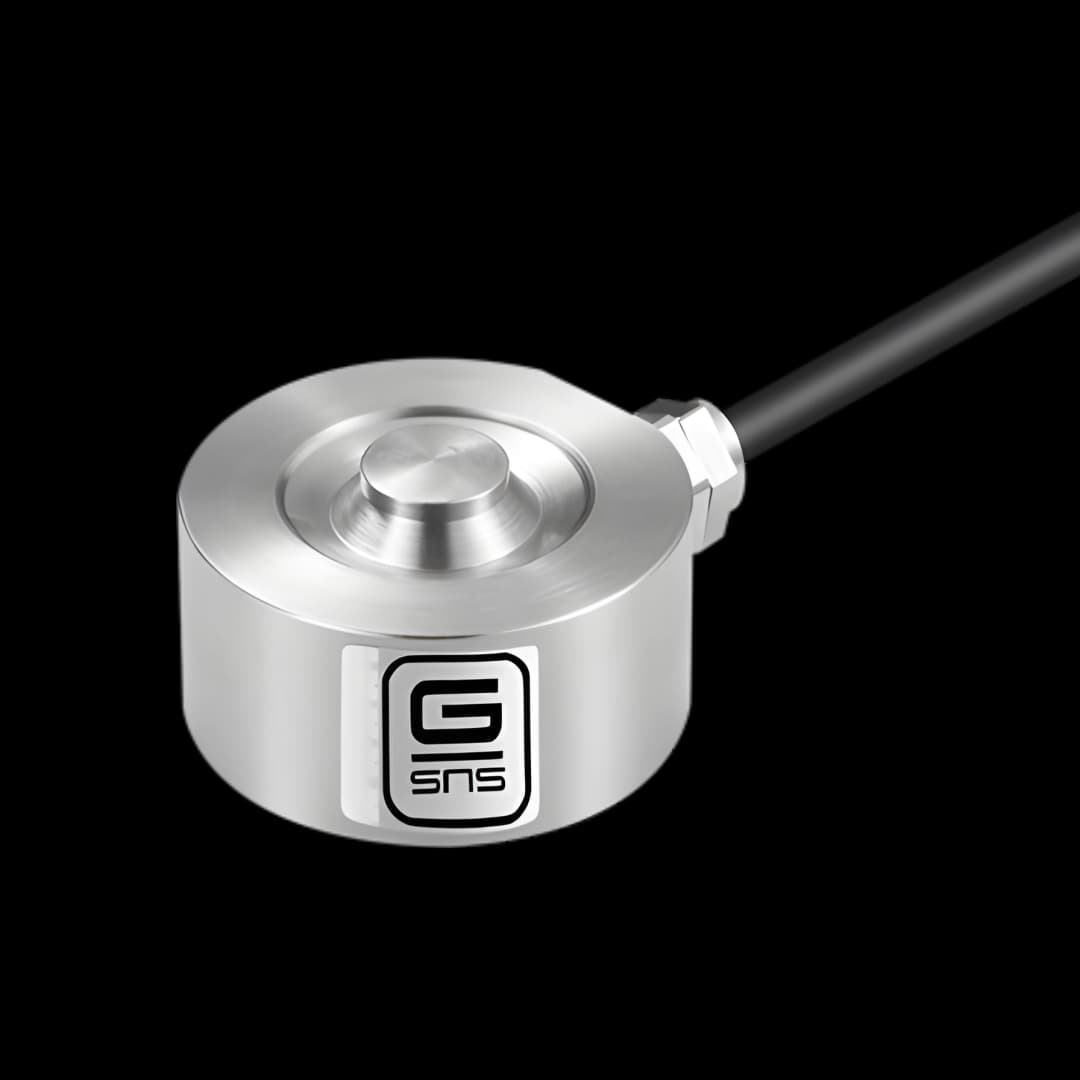

Compact compression load cell designed for transient force measurement in dynamic applications such as stamping equipment, hopper scales, tank scales and dynamic weight control. Features ultra low deflection, robust strain relief and stainless steel construction for durability.
- Compression Type
- Ultra Low Deflection
- Robust Strain Relief
- Transient Force Measurement of Dynamic Stamping Equipment, Hopper Scale and Tank Scale, Dynamic Weight Control
- Used in Pressing Machines
Performance
- Non-Linearity
±0.5% of RO
- Hysteresis
±0.5% of RO
- Repeatability
±0.3% of RO
- Zero Balance
±10% of RO
Electrical
- Rated Output
1.5 ±10% mV/V
- Recommended Excitation
5 to 10 VDC
- Maximum Excitation
15 VDC
- Input Impedance
385 ±10 Ω
- Output Impedance
350 ±5 Ω
- Insulation
≥ 5000 MΩ / 100 VDC
- Cable Colour Code
Input: Red (E+), Black (E-); Output: Green (S+), White (S-)
Mechanical
- Weight
See table above
- Safe Overload
150% of RO
- Ultimate Overload
200% of RO
- Material
Stainless Steel
- Cable Size
Ø3 × 3000 mm
- IP Rating
IP66
Temperature
- Operating Temperature
-20 to 80 °C
- Compensated Temperature Range
-10 to 60 °C
- Temperature Effect on Output
±0.05% of RO / 10 °C
- Temperature Effect on Zero
±0.05% of RO / 10 °C
Conformity
- RoHS
2011/65/EU
- CE
2014/35/EU
